Hardware Overview and Installation
ORiNOCO
®
802.11n & 802.11ac Access Points - Hardware Installation Guide 21

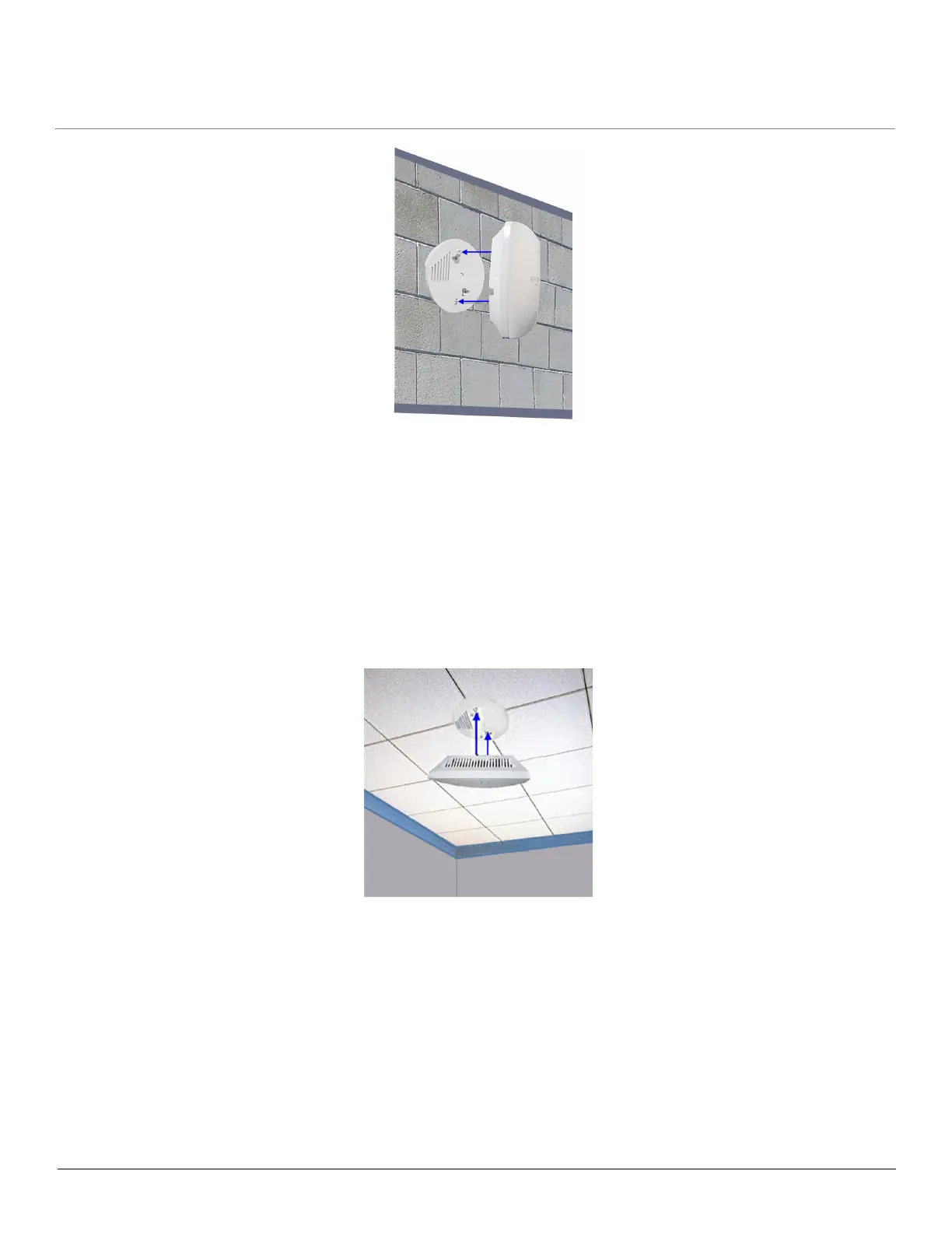

Figure 2-8 Wall Mounting
Ceiling Mounting:
1. Place the mounting plate on the T-bar ceiling such that the embossed letter ‘L’ is at the top-center position and the
vent-holes are facing your left hand side.
2. Fasten the mounting plate by using a pair of plastic anchors and screws provided with the product package.
3. Hold the device with its rear panel facing the mounting plate, such that the vent-holes on the device and the
vent-holes on the mounting plate rest on each other.
4. Align the two keyholes on the device with the two holders on the mounting plate.
5. Carefully, slide the device towards your right hand side, until the holders on the mounting plate fasten securely onto
the keyholes of the device.
Figure 2-9 Ceiling Mounting
Mounting AP-8100 to AP-800/8000 mounting plate (Optional)
In case, you are mounting AP-8100
to an already installed AP-800/8000 Mounting Plate (P/N 67439), then follow the
following steps.
Wall Mounting:
1. Hold the device such that the ‘Reload’ is towards your right hand side and the ‘LEDs’ towards left hand side.
2. Align the two keyholes on the device with the two holders on the mounting plate.
3. Carefully, slide down the device until the holders on the mounting plate fasten securely onto the keyholes of the
device.
