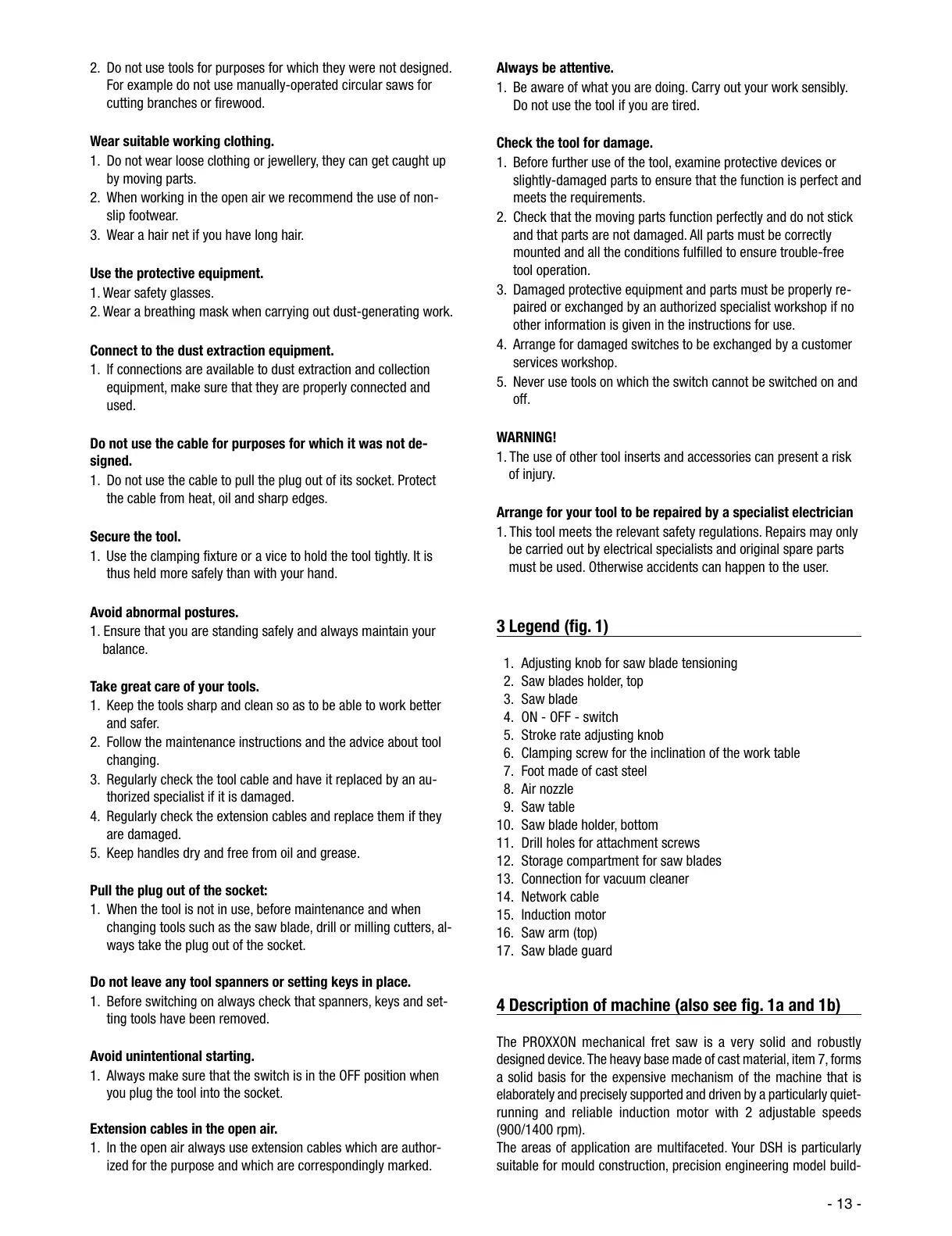

Proxxon DSH User Manual

- 13 -
2. Do not use tools forpurposesforwhich theywere not designed.
For example do not use manually-operatedcircular saws for
cutting branches orfirewood.
Wear suitable working clothing.
1. Do not wear loose clothing
orjewellery, theycan get caught up
by moving parts.
2.Whenworking in the openair we recommend the use ofnon-
slip footwear.
3.Wear ahair net if youhave l
ong hair.
Use the protective equipment.
1.Wear safety glasses.
2.Wear abreathing mask whencarrying out dust-generating work.
Connect to the dust extraction equipment.
1.Ifconnections are available to dust extractionand collection
equipment,
make sure that theyare properly connectedand
used.
Do not use the cable for purposes for which it was not de-
signed.
1. Do not use the cable to pull the plug out ofitssocket.Protect
the cable fromheat, oil and sharp edges.
Secure the tool.
1.Use the clamping fixture orav
ice to hold the tool tightly.It is
thus held more safely than withyour hand.
Avoid abnormal postures.
1. Ensure that youare standing safely and always maintain your
balance.
Take great care of your tools.
1. Keep the tools sharp and cle
an so as to be able to work better
and safer.
2.Follow the maintenance instructions and the advice about tool
changing.
3.Regularly check the toolcable and have it replacedbyanau-
thorizeds
pecialist if it is damaged.
4.Regularly check the extensioncablesand replace themifthey
are damaged.
5. Keephandlesdry and free from oil and grease.
Pull the plug out of the socket:
1.Whenthe toolisn
ot in use, before maintenance and when
changing tools such as the sawblade, drill ormilling cutters, al-
ways take the plug out of the socket.
Do not leave any tool spanners or setting keys in place.
1. Before switching onalways check that spanners, keys and set-
ting tools have beenremoved.
Avoid unintentional starting.
1.Always make sure that the switch is in the OFF positionwhen
youplug the toolinto the socket.
Extension cables in the open air.
1.Inthe openair always use extensioncablesw
hich are author-
izedforthe purpose and which are correspondingly marked.
Always be attentive.
1. Be aware ofwhat youare doing. Carry out your work sensibly.
Do not use the toolifyouare tired.
Check the tool for damage.
1. Before furtheruse of the tool, examine protective devices or
slightly-damagedparts to ensure that the functionisperfect and
meets the requirements.
2. Check that the moving
partsfunctionperfectly and do not stick
and that partsare not damaged. All partsmust be correctly
mountedand all the conditions fulfilled to ensure trouble-free
tool operation.
3. Damagedprotective equipment and partsmust be properly re-
paired or exchangedbyanauthorizedspecialist workshopifno
otherinformationisgiveninthe instructions foruse.
4.Arrange fordamagedswitches to be exchangedbyacustomer
servicesworkshop.
5.Neveruse tools onwhich the switch cannot be switched onand
off.
WARNING!
1.The use of
other toolinsertsand accessoriescan present arisk
ofinjury.
Arrange for your tool to be repaired by a specialist electrician
1.This toolmeets the relevant safetyregulations. Repairs may only
be carried out by electrical specialistsand
original spare parts
must be used. Otherwise accidentscan happen to the user.
3 Legend (fig. 1)
1.Adjusting knobforsaw blade tensioning
2.Saw bladesholder, top
3.Saw blade
4. ON - OFF - switch
5.Stroke rate adjusting knob
6. Clamping screwforthe inclination of the work table
7.Foot made
ofcast steel
8.Air nozzle
9.Saw table
10.Saw blade holder, bottom
11. Drill holesforattachment screws
12.Storage compartment forsaw blades
13. Connectionforvacuum cleane
r
14.Network cable
15.Inductionmotor
16.Saw arm (top)
17.Saw blade guard
4 Description of machine (also see fig. 1a and 1b)
The PROXXONmechanical fret sawisavery solid and robustly
designeddevice.The heavybase made ofcast material, item 7, forms
asolid basis for the expensive mechanism of the machine that is
elaborately and precisely supportedand drivenbyaparticularly quiet-
running and reliable inductionmotorwith2 adjustable speeds
(900/1400 rpm).
The areas ofapplicationare multifaceted. Your
DSH is particularly
suitable formould construction, precision engineering modelbuild-
All manuals and user guides at all-guides.com

Proxxon DSH Specifications

General

Type	Scroll Saw
Power Consumption	205 W
Throat Depth	400 mm
Max Cutting Height	50 mm
Maximum Cutting Depth (Plastic)	50 mm
Maximum Cutting Depth (Non-ferrous Metals)	10 mm
Table Size	360 x 180 mm
