PRx Performance Murphy Rack Fold Up - Page 10

10 (701) 566-0452

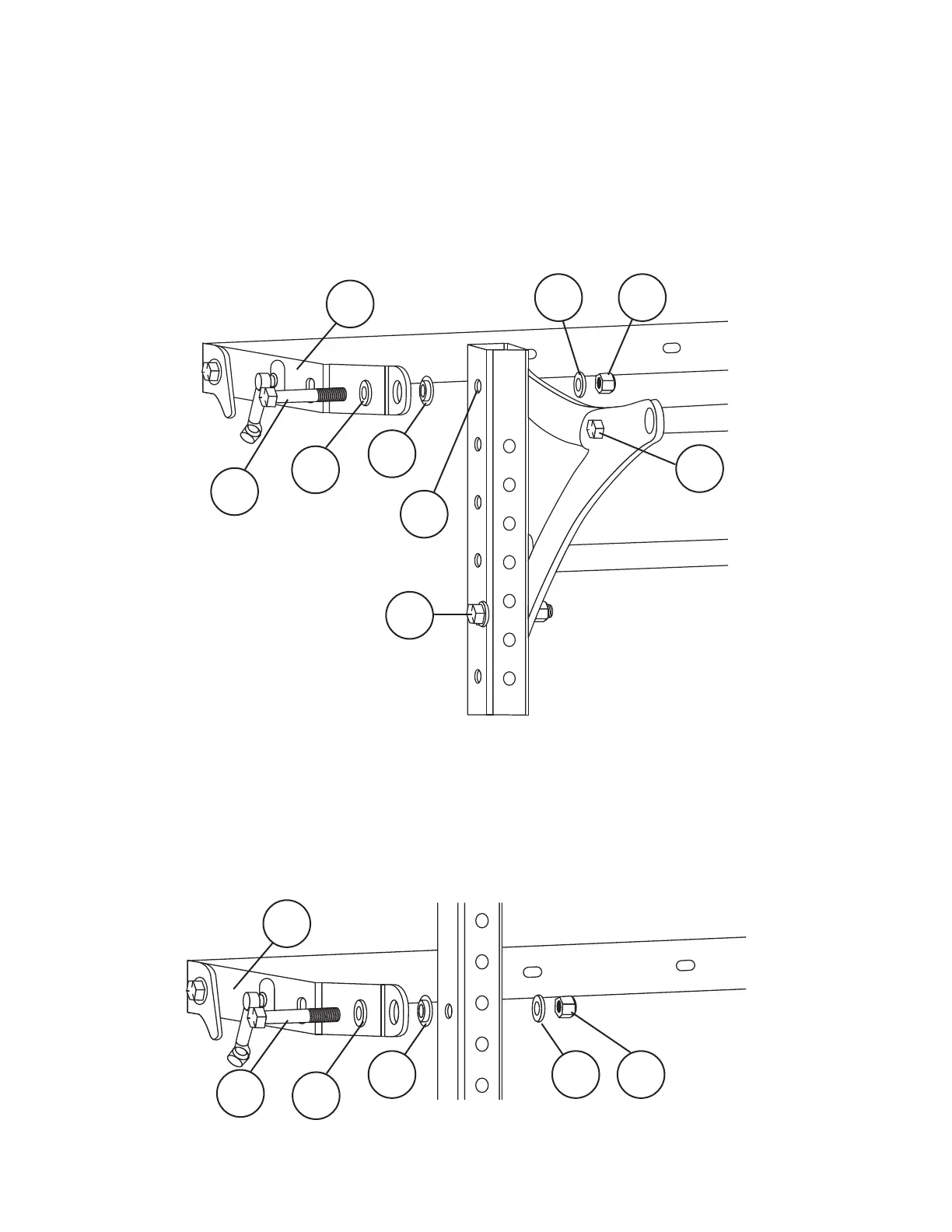

Lower Linkage Arms
1. Place plastic spacer on the inside of the bottom linkage arms, place it against the 19” hole of the
upright. Attach Linkage Arm (3A), Plastic Spacer (7) and upright using an M16 x 80 Hex Head Bolt
(12), two M16 Washers (9), and one M16 Nylock Nut (10). DO NOT ATTACH THE SHOCKS
2. Repeat on the opposite side
3. NOTE: DO NOT over tighten
Attach Extended Pull-Up Bar to Linkage Arms
Upper Linkage Arms
1. Attach the left linkage arm by removing the M16 x 85 Hex Head Bolt (11) from h5. Place the Plastic
Spacer (7) on the inside of the linkage arm and place it against the top hole of the upright
2. Attach linkage arm, plastic spacer, upright and Extended Pull-Up Bar using the M16 x 85 Hex Head
Bolt (11), two M16 Washers (9), and one M16 Nylock Nut (10). NOTE: DO NOT over tighten
3. Repeat on the right side
h4
h5
7
7 7
10
9
9
10
11
12
3A
h2
9
3A
