Attach Extended Pull-Up Bar To Uprights

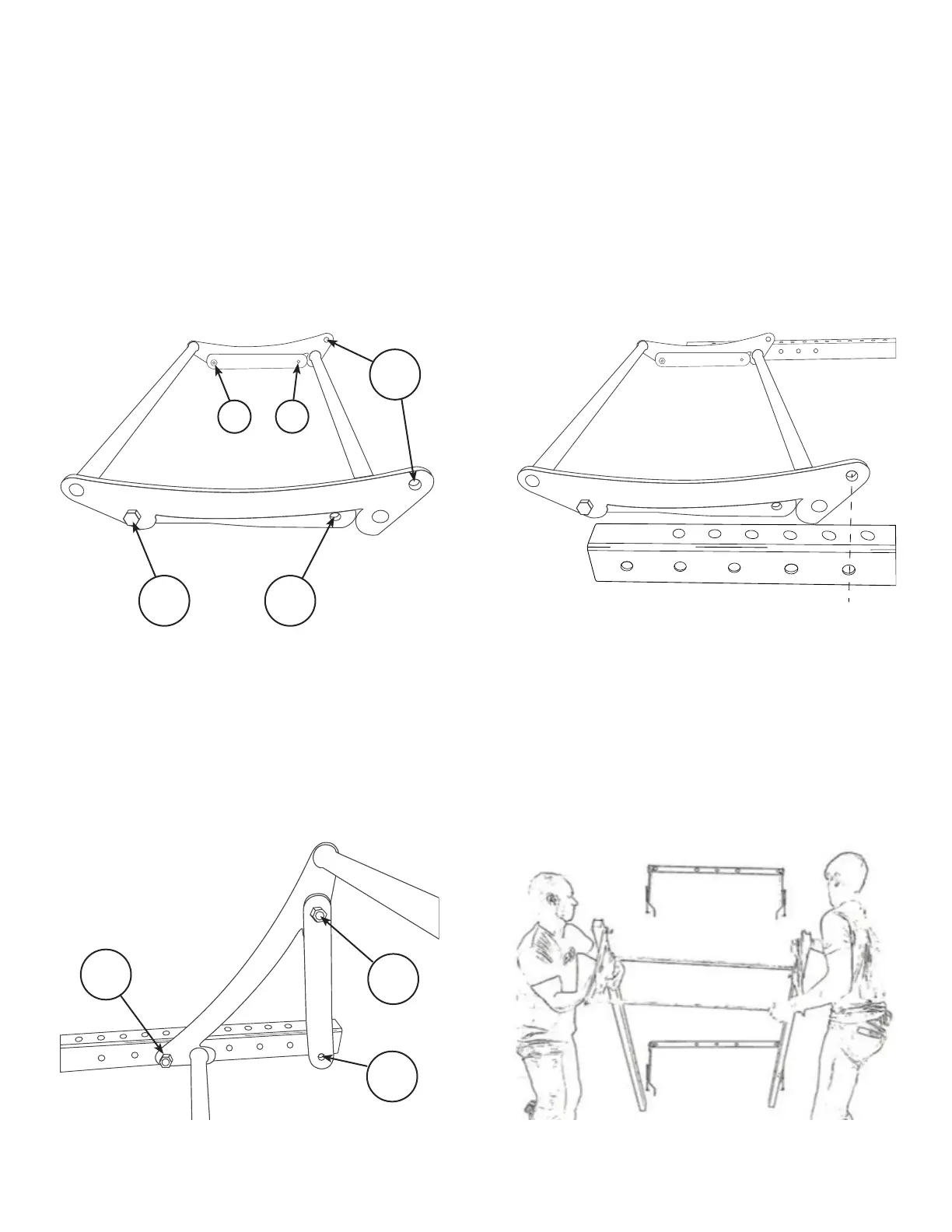

1. Lay uprights on ground with the narrow side facing upward (with space between for Extended Pull-Up
Bar)
2. Lay the Extended Pull-Up Bar at on the ground so it is curving upward between the tops of the
uprights (see diagram). The top of the uprights will not have a plug
3. If needed, rotate the Extended Pull-Up Bar so h4 aligns with the 5th side hole down from the top of
the uprights
4. Using a M16 x 80 Hex Head Bolt (12), two M16 Washers (9), and one M16 Nylock Nut (10) connect
h4 of the Extended Pull-Up Bar to the 5th hole down from the top of the upright (see diagram). You
will need to lift uprights slightly so that the holes align. Do not fully tighten (hand tighten). Repeat on
other side
5
th
hole
h4
h2
h2
h5
h4
h2
h5
h5
5. Lift top of Extended Pull-Up Bar off the ground until the Extended Pull-Up Bar arms hang down to
align h5 with the top hole of the uprights. Attach the Extended Pull-Up Bar to the uprights using an
M16 x 85 Hex Head Bolt (11), two M16 Washers (9), and one M16 Nylock Nut (10). Do not fully
tighten (hand tighten). Repeat on other side
6. Tighten bolts in h4 and h2, but leave h5 loose (this will come off when you attach the rack to the top
linkage arms).
7. Team lift rack into place (approximately 20” from the wall), and begin attaching linkage arms starting
at the top
