Attach Kipping Bar to Uprights
1. Lay the uprights on the ground facing upwards. Leave space between for the Kipping Bar.
2. Lay the Kipping Bar (17) on the ground (Figure 7) with the center of the Kipping Bar off the floor.
3. Attach Kipping Bar Arms (18) (Figure 7) with supplied 1-1/2” hex head bolts (9) and 5/8” lock nuts
(6). Do not fully tighten bolts.
4. Position the Kipping Bar (17) so that the holes align with the top hole of both uprights (Figure 7).
Using the 5” hex head bolts (10) 5/8” washers (5), and 5/8” lock nuts (6), attach the Kipping Bar to
each upright (Figure 7), (hand tighten nuts onto bolts, they will be removed later to attach upper
linkage arms).

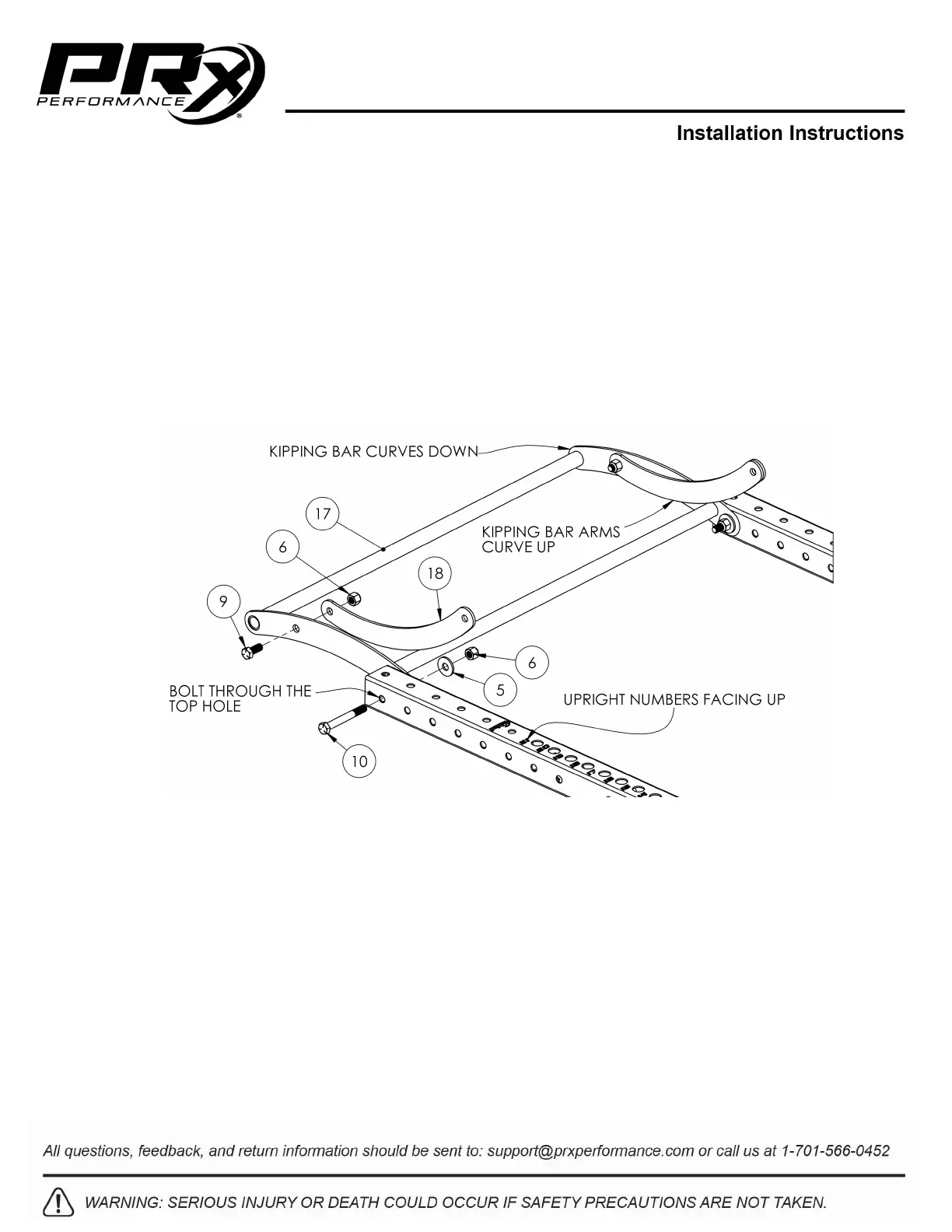

Figure 7: Attaching the Kipping Bar to the Uprights
Attaching the Kipping Bar Arms to the Uprights
