1. Rotate the kipping bar 90 degrees until the kipping bar is in a similar position (Figure 8) and the
holes in the kipping bar arms align with the 5
th
hole from the top of the uprights.
2. Using the 4-1/2” hex head bolts (7) and 5/8” lock nuts (6), attach the kipping bar arms to the
uprights (Figure 8). Make sure to position the plastic kipping bar spacer (19) between the upright
and kipping bar arm on both connections (Figure 8).
3. Fully tighten both bolts attaching the kipping bar arms (18).

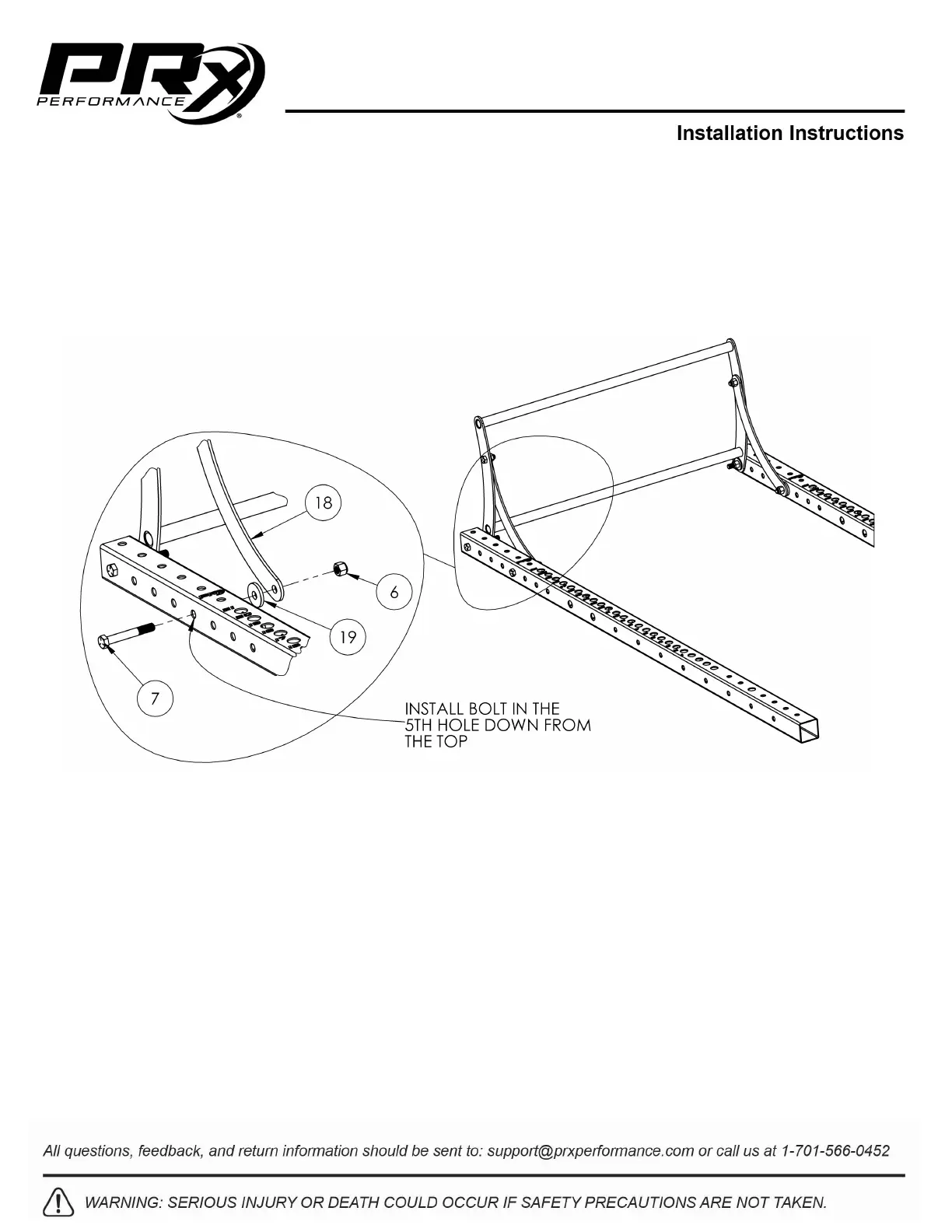

Figure 8: Attaching the Kipping Bar Arms to the Uprights
