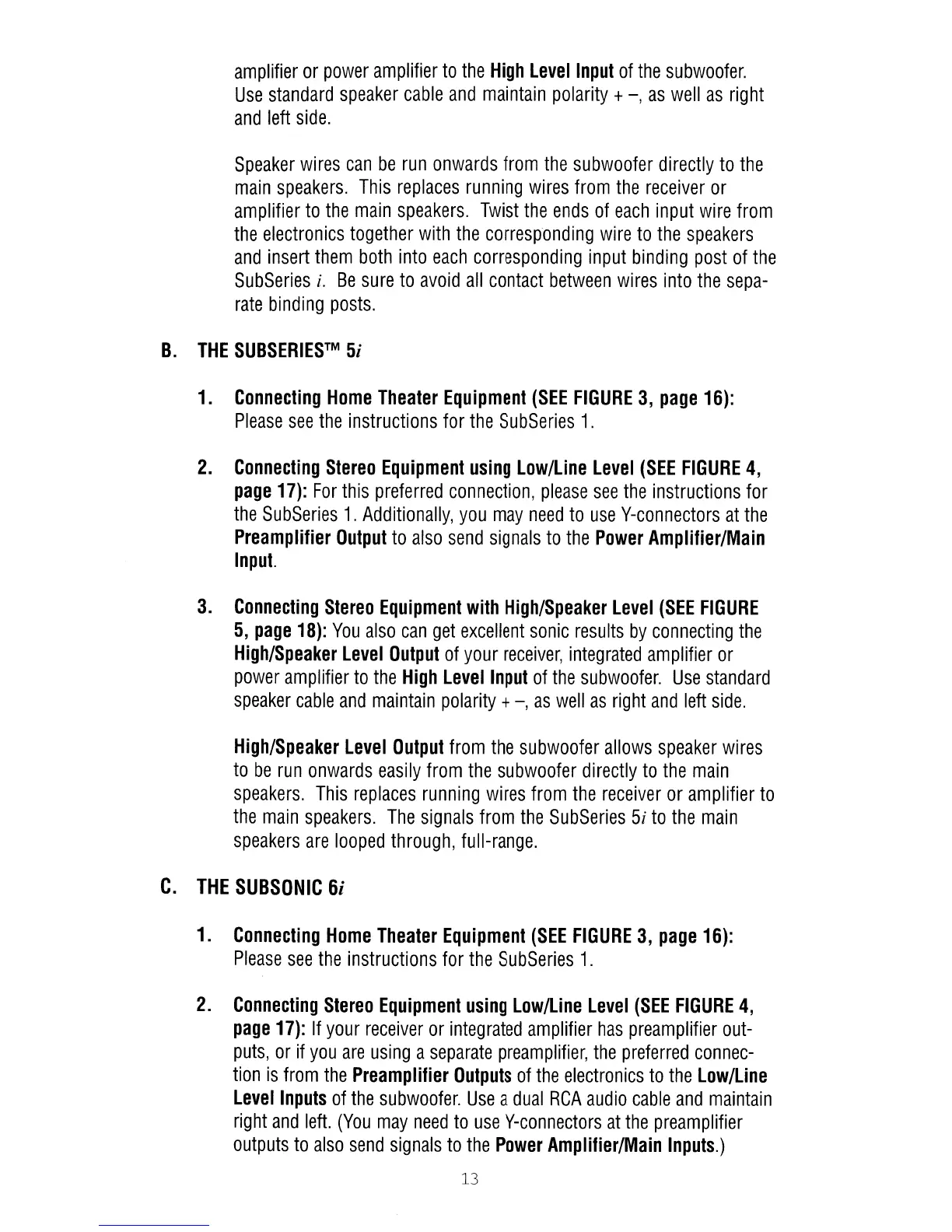

amplifier
or
power
amplifier
to
the
High
Level
Input
of
the
subwoofer.
Use
standard
speaker
cable
and
maintain
polarity
+
-,
as
well
as
right
and
left
side.
Speaker
wires
can
be
run
onwards
from
the
subwoofer
directly
to
the
main
speakers.
This
replaces
running
wires
from
the
receiver
or
amplifier
to
the
main
speakers.
Twist
the
ends
of
each
input
wire
from
the
electronics
together
with
the
corresponding
wire
to
the
speakers
and
insert
them
both
into
each
corresponding
input
binding
post
of
the
SubSeries
i.
Be
sure
to
avoid
all
contact
between
wires
into
the
sepa-
rate
binding
posts.
B.
THE
SUBSERIESTM
5i
1.
Connecting
Home
Theater
Equipment
(SEE
FIGURE
3,
page
16):
Please
see
the
instructions
for
the
SubSeries
1.
2.
Connecting
Stereo
Equipment
using
Low/Line
Level
(SEE
FIGURE
4,
page
17):
For
this
preferred
connection,
please
see
the
instructions
for
the
SubSeries
1.
Additionally,
you
may
need
to
use
V-connectors
at
the
Preamplifier
Output
to
also
send
signals
to
the
Power
Amplifier/Main
Input.
3.
Connecting
Stereo
Equipment
with
High/Speaker
Level
(SEE
FIGURE
5,
page
18):
Vou
also
can
get
excellent
sonic
results
by
connecting
the
High/Speaker
Level
Output
of
your
receiver,
integrated
amplifier
or
power
amplifier
to
the
High
Level
Input
of
the
subwoofer.
Use
standard
speaker
cable
and
maintain
polarity
+
-,
as
well
as
right
and
left
side.
High/Speaker
Level
Output
from
the
subwoofer
allows
speaker
wires
to
be
run
onwards
easily
from
the
subwoofer
directly
to
the
main
speakers.
This
replaces
running
wires
from
the
receiver
or
amplifier
to
the
main
speakers.
The
signals
from
the
SubSeries
5i
to
the
main
speakers
are
looped
through,
full-range.
C.
THE
SUBSONIC
6;
1.
Connecting
Home
Theater
Equipment
(SEE
FIGURE
3,
page
16):
Please
see
the
instructions
for
the
SubSeries
1.
2.
Connecting
Stereo
Equipment
using
Low/Line
Level
(SEE
FIGURE
4,
page
17):
If
your
receiver
or
integrated
amplifier
has
preamplifier
out-
puts,
or
if
you
are
using
a
separate
preamplifier,
the
preferred
connec-
tion
is
from
the
Preamplifier
Outputs
of
the
electronics
to
the
Low/Line
Level
Inputs
of
the
subwoofer.
Use
a
dual
RCA
audio
cable
and
maintain
right
and
left.
(Vou
may
need
to
use
V-connectors
at
the
preamplifier
outputs
to
also
send
signals
to
the
Power
Amplifier/Main
Inputs.)
13
