Computer Graphics (VGA)/Stereo Audio Matrix Switcher
Audio General
Frequency
Response
20Hz ~ 20KHz CMRR >90dB@20Hz~20KHz
Stereo Channel
Separation
>80dB@1KHz THD + Noise
1%@1KHz, 0.3%@20KHz at
nominal level
Control Parts
Serial Control Port
RS-232, 9-pin female D
connector
Pin Configurations 2 = TX, 3 = RX, 5 = GND
IR Remote Default IR remote
Front Panel
Control
Buttons
Options TCP/IP control by PTNET(PTN's programmable interface)
General
Power Supply 100VAC ~ 240VAC, 50/60Hz
Power
Consumption
25W
Temperature
-20 ~ +70℃
Humidity 10% ~ 90%
Case Dimension
W483 x H87 x D260mm
(2U high, full rack wide)
Product Weight 3.5Kg

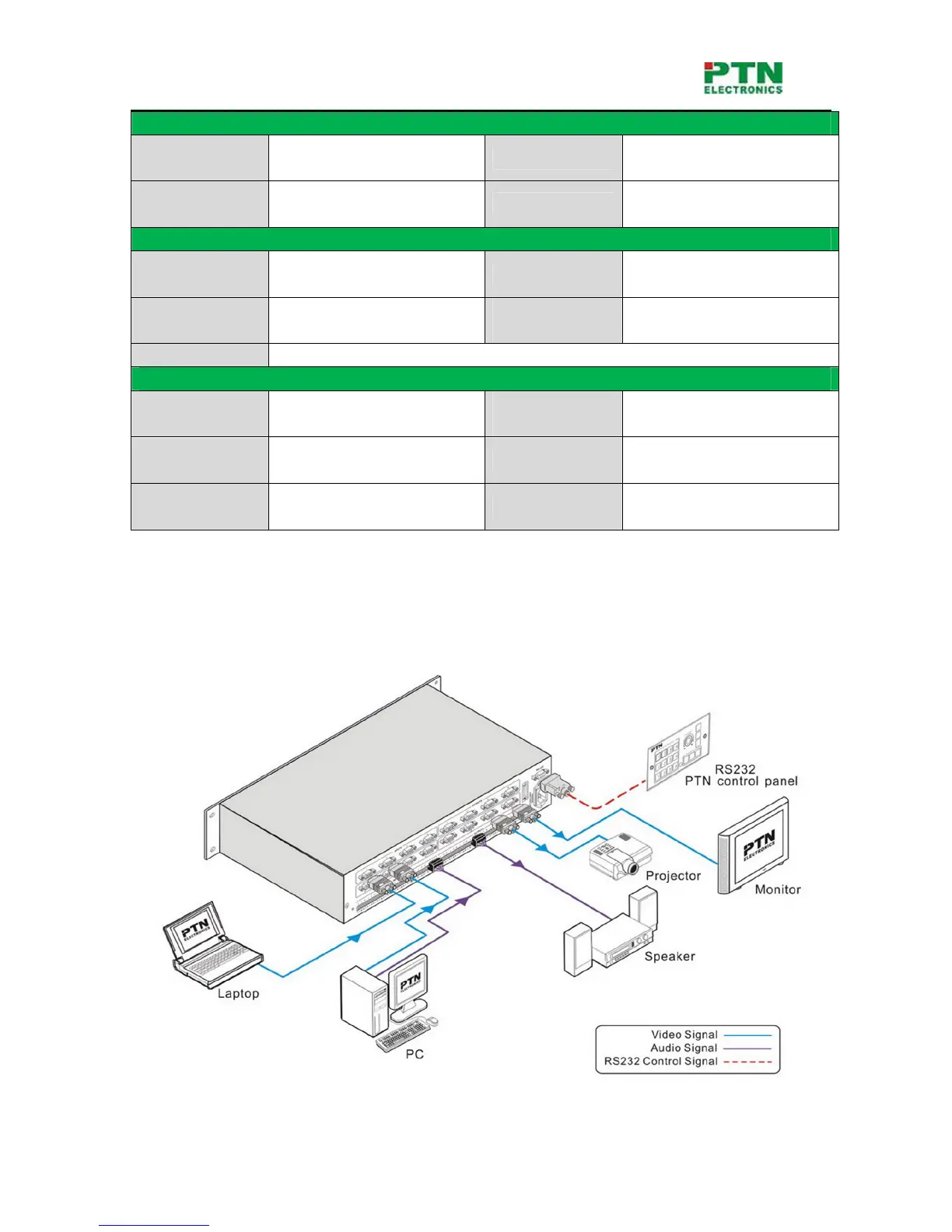

11. System Diagram
To Next Page
