Differential Pressure Measurement (Internal Sensor)
The ECo controller has an onboard pressure sensor used to measure the differential
pressure over the filter bags.

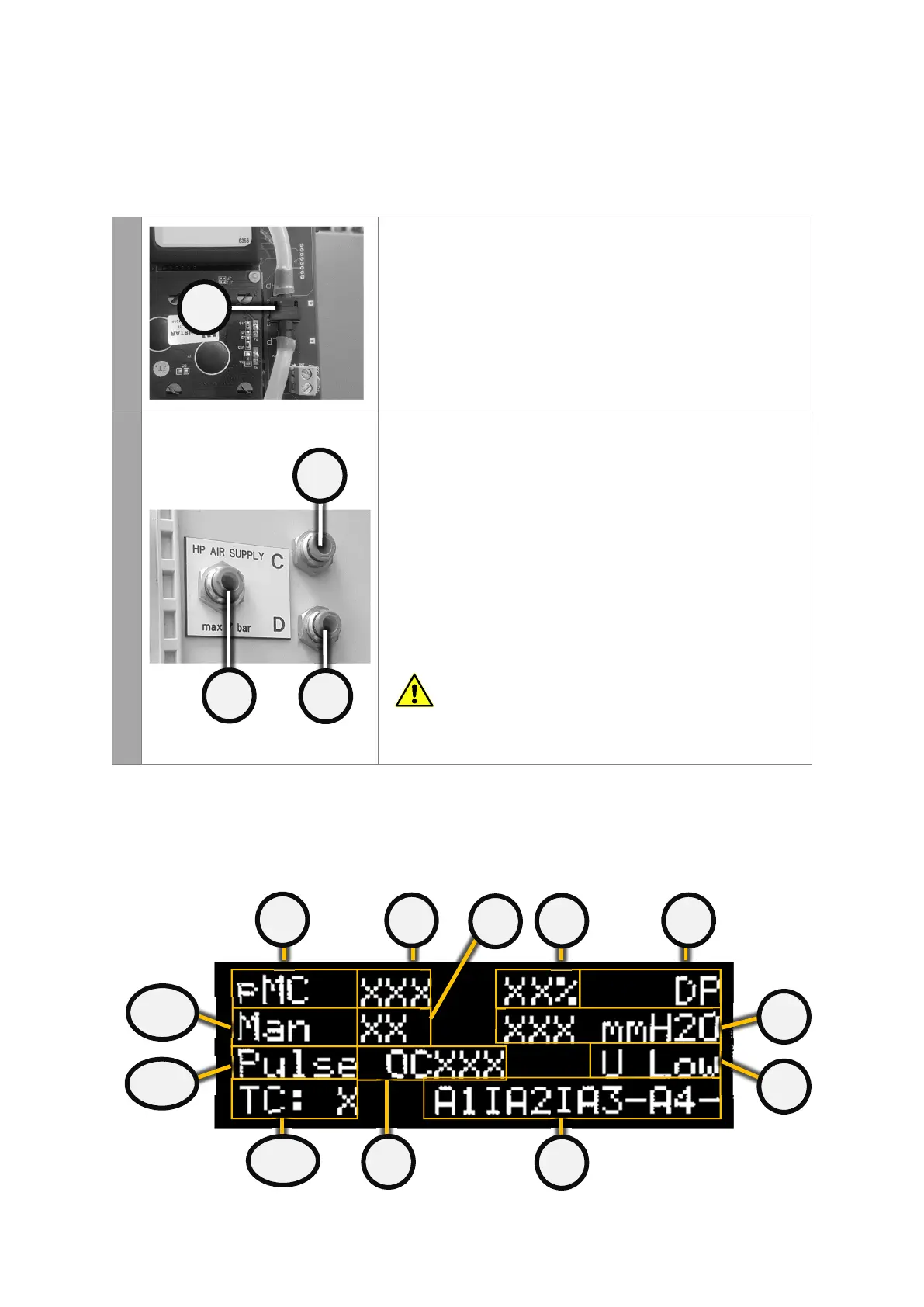

1. Connect the measurement tubes to the onboard
differential pressure sensor. PTronik recommend a
silicone based flexible hose that can be stretched over
the DP sensor input and output.
If the ECo has been purchased from PTronik pre-fitted inside an
enclosure, then bulkhead fittings will be provided on an external
point on the enclosure (see picture to the left).
1. For ECo-T only, the ECo-0 does not have tube cleaner
fitted. The high pressure (HP) air supply must not exceed
7 bar. This is the cleaning air used to clean the
measurements tubes.
2. The clean side measurement (C or L) must be connected
to the clean low-pressure side of the baffle plate.
3. The dirty side measurement (D or H) must be connected
to the dirty side of the baffle plate.
DO NOT connect high pressure air into the clean or
dirty side tube connections. This will damage the
differential pressure sensor and result in the board
not operating correctly.
Main Run Page
The main run page gives the user a snap shot of the current status of the dust collector.
There is a lot of information on this screen so please take a minute to read this section.
