Pulnix TMC-7 - ALIGNMENT AND ADJUSTMENT; MECHANICAL BACK FOCUS ADJUSTMENT

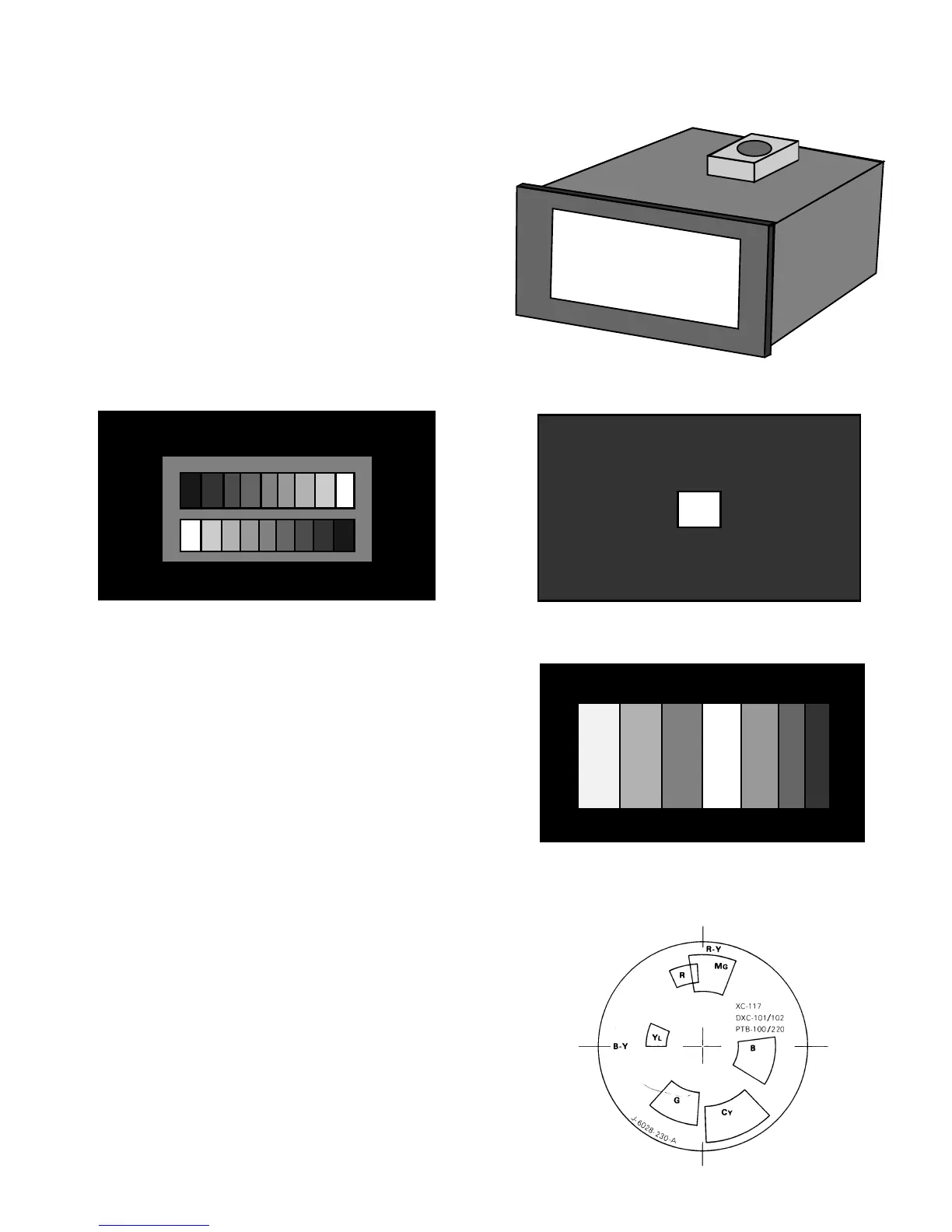

4.1 EQUIPMENT
1. Light source for test chart.
Pattern Box PTB-500 (90-130V)
PTB-220 (190-240V--not used in U.S.)
2. For video level and gamma adjustment.
3. For color adjustment.
(Use color bar chart)
4. For signal adjustment.
Vector scope
Waveform monitor
Oscilloscope
5. Standard Pattern Frame
YL CY
G
W
MG R
B
SECTION 4 : ALIGNMENT AND ADJUSTMENT
Grayscale Chart
White Window Chart
Color Bar Chart
6
