PULOON Technology Inc.
LCDM-2000

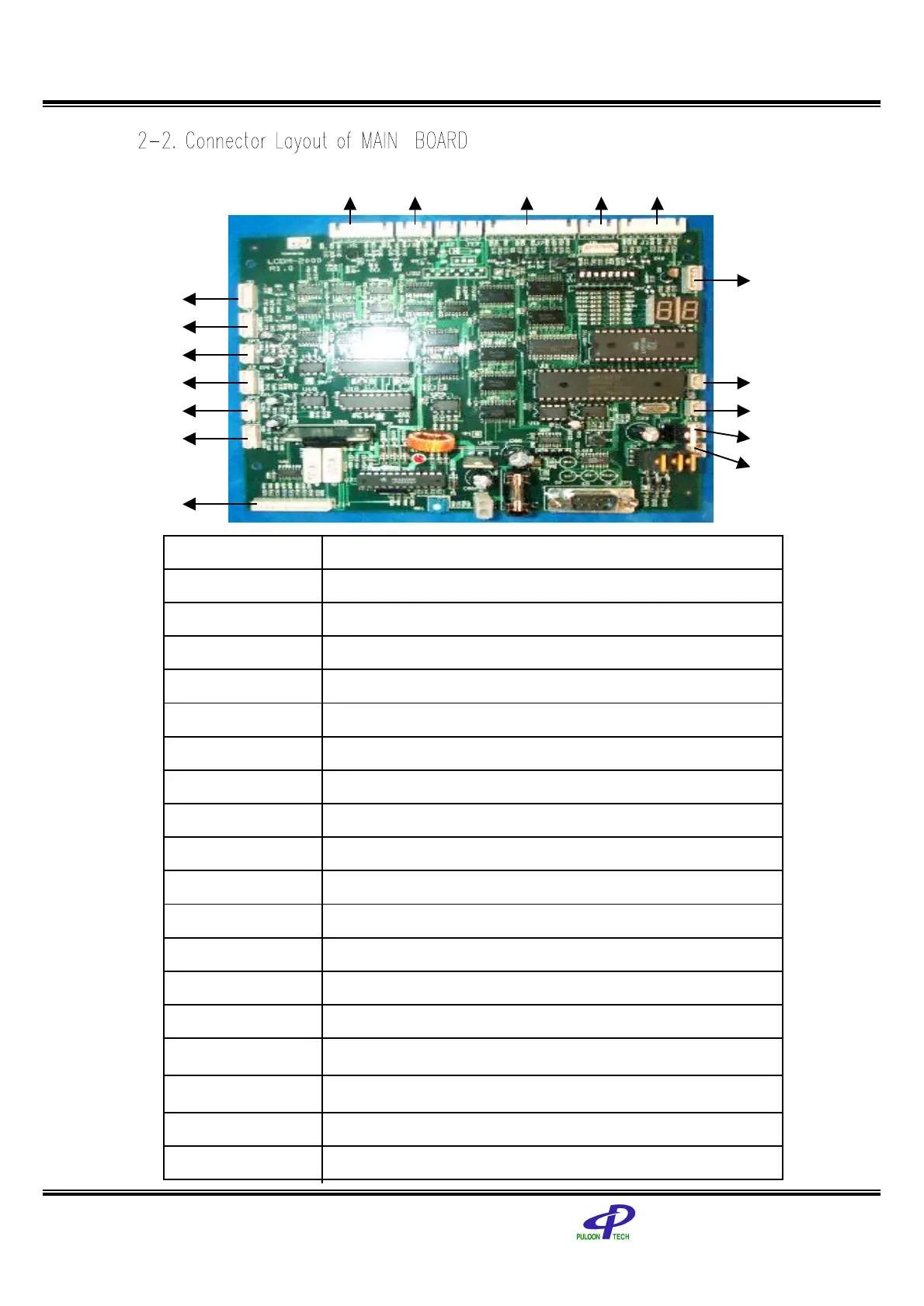

J5 Check1,Divert1 sensor for accepting & emitting light
J3 Eject,Exit emitting sensor
J7 Upper & Lower Cash Box sensor
J6 Eject,Exit accepting sensor
J1 Check2,Divert2 sensor for accepting & emitting light
J8 Check 3 sensor for accepting & emitting light
J17 Check 4 sensor for accepting & emitting light
J4 Lower Near End sensor ( Near End 1 )
JP3 Lower RVDT ( RVDT 1 )
J2 Upper Near End sensor ( Near End 0 )
JP2 Upper RVDT ( RVDT 0 )
J15 Wheel sensor
J14 BLDC Motor
J20 Reject Tray limit switch
J9 Lower Clutch ( Clutch 1 )
J10 Divert Solenoid
J11 Upper Clutch ( Clutch 0 )
J16 POWER
JP2
J10
J9
J17
J15
J2
JP3
J4
J3
J8
J1J6J7J5
J14
J11
J20
JP1 RS232 Communication
