Connection status
Status bar indication
Press and hold down the М (3) button to enter the main menu.
Press briefly М to confirm.
Select the menu option «Rangefinder» with the UP (2)/DOWN (5)
buttons.
Display will show as follows: measurement bars, icons of three
reference objects and respective distances for the three objects.
STADIAMETRIC RANGEFINDER
Thermal imagers are equipped with a stadiametric rangefinder which
allows the user to estimate approximate distance to an object of known
size.
160m
66m
28m
- check regularly the free capacity of the internal memory, move
recorded footage to other storage media to free up space on the
internal memory card.
- Maximum duration of a recorded file is seven minutes. After
this time expires a video is recorded into a new file. The number
of recorded files is limited by the capacity of unit's internal
memory.
Attention!

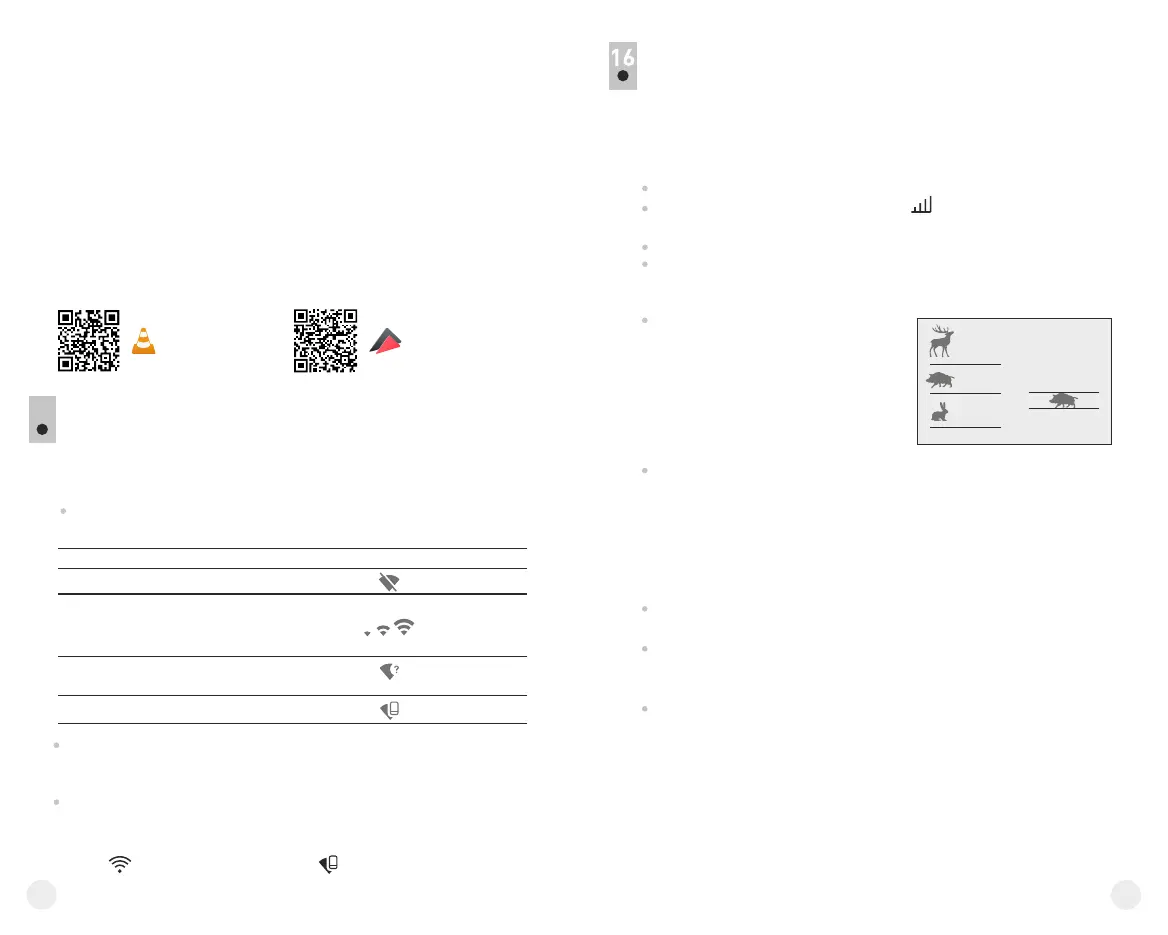

Download links and QR codes are shown below:
To playback video files recorded by thermal imaging devices on iOS-
based computers, we recommend that you use VLC video player or
Elmedia player.
IMPORTANT!
WI-FI FUNCTION
Your thermal imager features wireless connection option (Wi-Fi) which
links it with external appliances (smartphone, tablet PC).
15
Turn on the wireless module the with a long press of the UP (2) button.
Wi-Fi operation is shown in the status bar as follows:
Wi-Fi is off
Wi-Fi activated by the user,
Wi-Fi in the device is being
activated
Wi-Fi is on, no connection with
device
Wi-Fi is on, device connected
Yo u r d e v ice i s d e t ecte d b y a n e x t e r n a l d e v i c e a s
«ACCOLADE_XXXX», where XXXX – is the last four digits of
device's serial number».
After a password is generated on an external appliance (please refer
to the menu option «Wi-Fi setup» of the section «Main menu
functions» of this user manual) and connection is established, the
icon in the status bar changes to .
There are three pre-set reference
objects:
- Hare – height 0.3 m
- Wild boar – height 0.7 m
- Deer – height 1.7 m
If ranging does not take place within 10 seconds, the information
disappears from the display.
Before it appears on the display, a measured distance value is
rounded up to 5 m for larger values, and rounded down to 1 m for
smaller values.
To select the unit of measurement (metres or yards), go to the
respective menu option.
Exit rangefinder mode with a short press of the M button or wait 10
seconds to exit automatically.
Move the lower fixed bar under the object being ranged and, while
pressing the UP/ DOWN buttons, move the upper horizontal bar
relative to the lower fixed bar until the object fits entirely between the
two cursors. The distance to the object is automatically recalculated
as you move the upper line.
22
21
VLC Video Player ELMEDIA Video Player
