Powering on and Image Setting

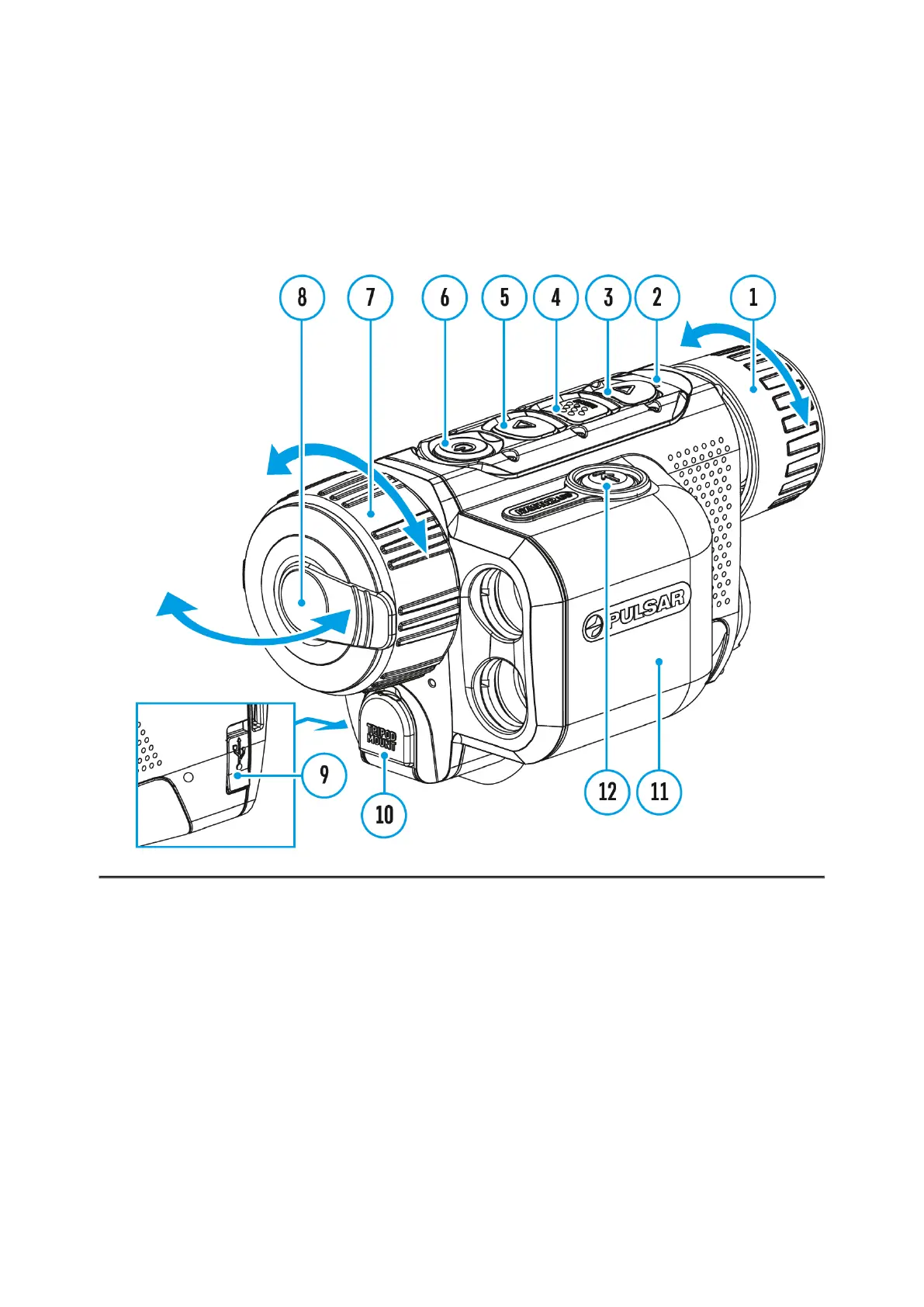

Show device diagram
1.
Open the lens cover (8). The lens cover can be secured to the strap using the
built-in magnet.
2.
Press the ON/OFF (6)button briefly to turn on the device.
3.
Adjust the eyepiece focus ring (1) of the device until the symbols on the display
are sharp.
4.
Rotate the lens focus ring (7) to focus on the object being observed.
5.
Enter the main menu with a long press of the MENU (4) button and select the
desired calibration mode: Manual (M), Semi-Automatic (SA) or Automatic (A).
6.
Calibrate the image by briefly pressing the ON/OFF (6)button.If the SA or A
calibration mode has been selected the microbolometer is closed with an internal
shutter automatically. However, if the M calibration mode has been selected you
