Pulsar Axion 2 LRF User Manual

Powering on and Image
Settings

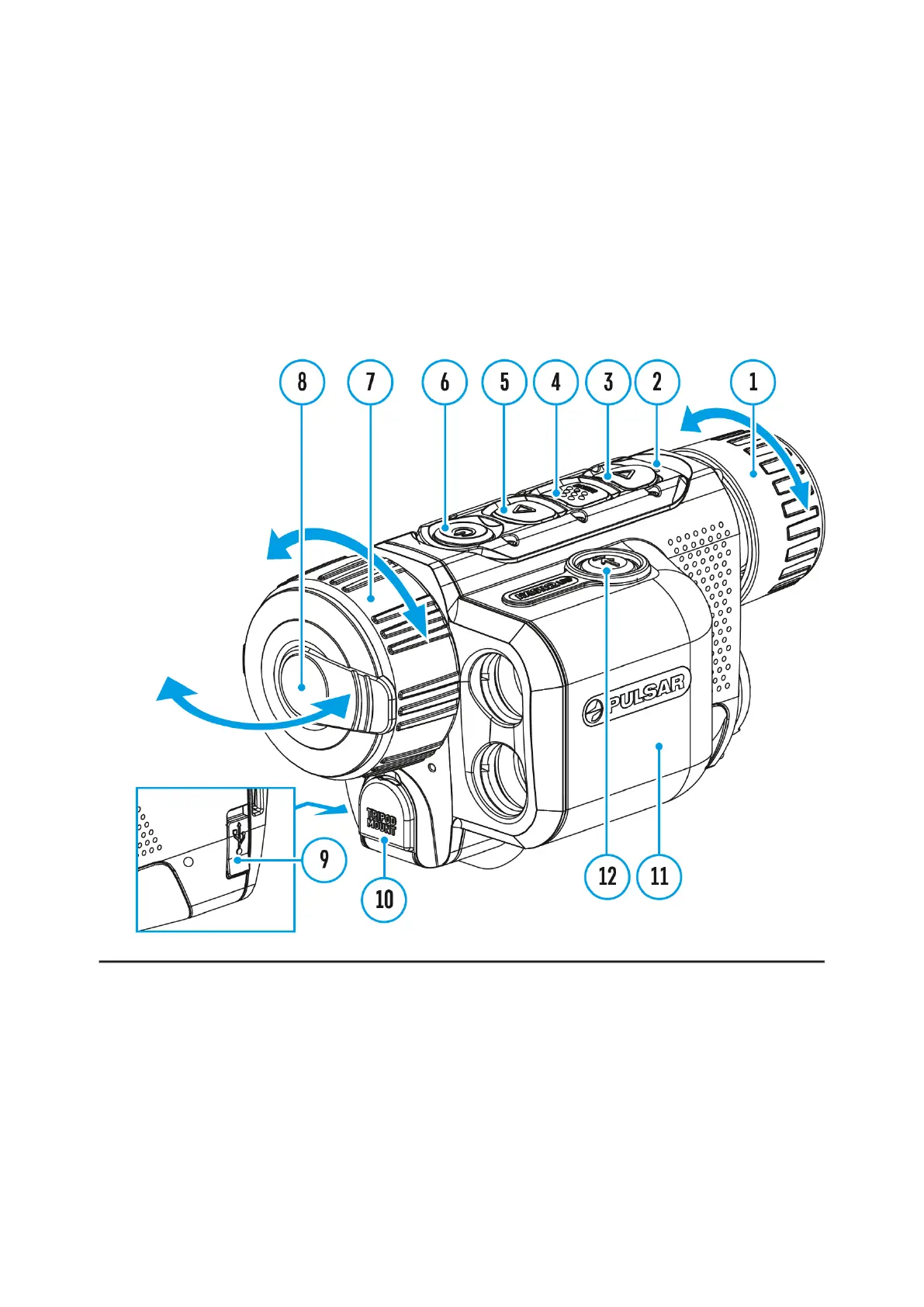

Show device diagram
1.
Open the lens cover (8). The lens cover can be secured to the strap
using the built-in magnet.
2.
Press the ON/OFF (6)button briefly to turn on the device.
3.
Adjust the eyepiece focus ring (1) of the device until the symbols on
the display are sharp.
4.
Rotate the lens focus ring (7) to focus on the object being observed.
5.
Enter the main menu with a long press of the MENU (4) button and

Pulsar Axion 2 LRF Specifications

General

Frame Rate	50 Hz
Laser Rangefinder	Yes
Wavelength of Laser Rangefinder	905 nm
Display Type	AMOLED
Photo/Video Recording	Yes
Built-in Memory	16 GB
Wi-Fi	Yes
Stream Vision 2	Yes
Waterproof Rating	IPX7
Range of Laser Rangefinder	up to 1000 m
Display Resolution	1024x768 px
Power Supply	Built-in battery
External Power Supply	USB Type-C
Operating Temperature	-25°C to +50°C
