Pulsar AXION XQ38 Quick Start Guide

LED indicator displays the current status of the device:
LED Indicator Operating Mode
Device is turned on
The device is turned on/video recording
The device is turned on/battery charge < 10%
The device is turned on/video recording/battery charge < 10%
Buttons Operation
Short press Long press
ON/OFF
button
(5)
Turn on device
Turn off device
Turn on display
Turn off display
Device calibration
UP/ZOOM
button
(4)
Switch observation modes
Zoom
Menu navigation up / right
MENU
button
(3)
Enter quick menu
Exit quick menu
Switch between quick menu
items
Enter / exit main menu
Conrm selection
DOWN/
REC
button
(2)
Start / Pause / Resume video
recording
Toggle between photo / video
mode
Photography
Stop video recording
Menu navigation down / left

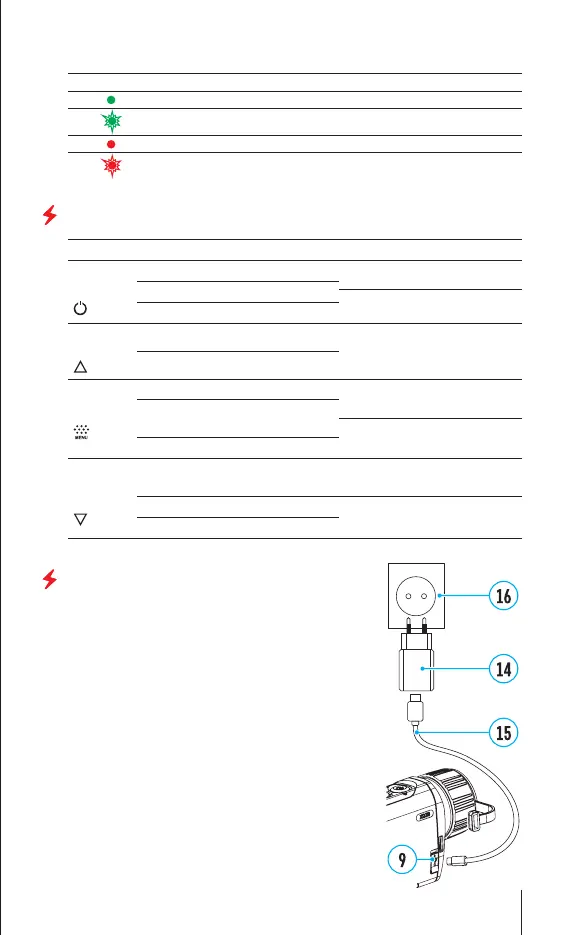

Battery Pack Charging
The AXION XQ thermal imagers come with APS 5
rechargeable lithium-ion battery. APS 5 batteries
support USB Power Delivery fast charging technology
when using a standard charging set (Charger, USB
Type-C cable, Power Adapter). Before rst use, the
battery should be charged.
Option 1
• Install the battery (10) in the battery compartment
(18) of the device.
• Connect the USB cable (15) to the USB Type-C
connector (9) of the device.
• Connect the other end of the USB cable (15) to the
Power Adapter (14).
• Plug the Power Adapter (14) into a 100-240 V socket
(16).
ENGLISH
2

Pulsar AXION XQ38 Specifications

General

Sensor Resolution	384x288
Objective Lens	F38/1.2
Magnification	3.5-14x
Detection Range	1350 m
Display Type	AMOLED
Battery Life	Up to 6 hours
Frame Rate	50 Hz
Microbolometer resolution	384x288
Pixel Pitch	17 µm
Built-in video recorder availability	Yes
Format of video / photo files	.mp4 / .jpg
Built-in memory	16 GB
Degree of protection, IP code	IPX7
Wi-Fi	Yes
Stream Vision	Yes
Sensor	Microbolometer
Digital zoom	4x
Type	Thermal Imaging
Operating temperature range	-25°C to +50°C
Battery type	APS 5
External power supply	5V
Field of View	9.8x7.4°
Display Resolution	1024x768 pixels
