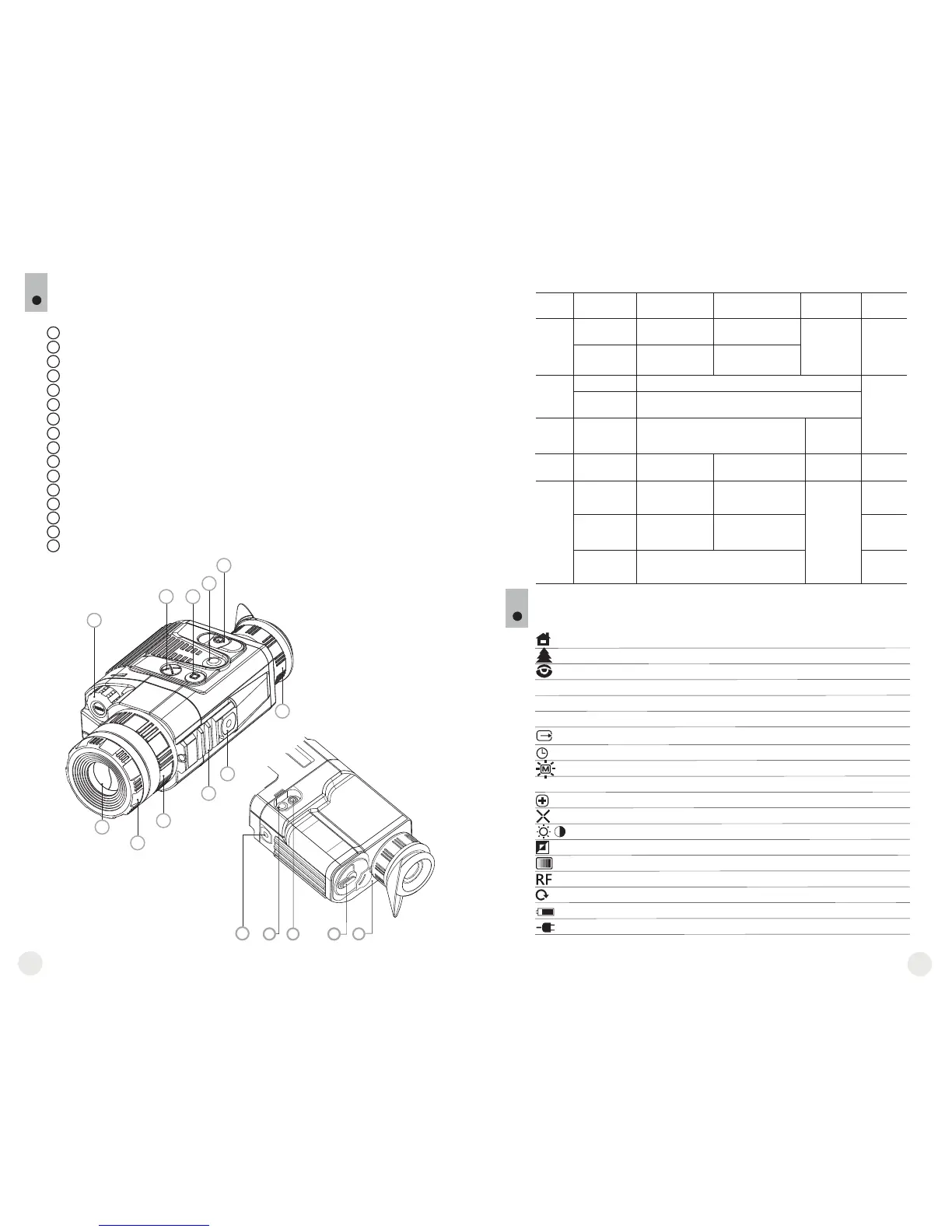

COMPONENTS AND CONTROL ELEMENTS
4
5
6
7
8
9
10
11
12
13
14
1
2
3
4
Controller
Button “RF”
Button “MODE”
Button “CAL”
Button “ON”
Eyepiece diopter adjustment ring
Tripod mount ¼”
Weaver rail
Lens focus ring
Wheel for diaphragm opening
Lens diaphragm
Tripod mount ¼”
External power supply jack
Video output
Battery compartment
LED indicator
15
6
2
3
4
5
1
16
1
1
8
7
10
9
Functions of the controls
Controller
Rangefinder
Pass to “Brightness”
mode
Pass to “Contrast” mode
Controls
name
Button
ON
Button
Cal
Button
Mode
Button
RF
Operating mode
Scope is off
Scope is on
Display on
Display off
Scope is on
Scope is on
Brightness
Contrast
1st short press
Turn the scope on
Turn the display off
Subsequent short
press(es)
Display off
Display on
Long press
Turn the
scope off
Rotation
Scope calibration
Calibration is not executed
Zoom
Enter the menu
Rangefinder is on Rangefinder is off
Pass to “Contrast”
mode
Pass to “Brightness”
mode
Color mode
change
Changing
brightness
value
Changing
contrast
value
Changing
distance
value
—
—
—
—
5
MENU AND STATUS BAR ICONS:
M
H
A
Operating mode “Identification”
Manual calibration mode
Semiautomatic calibration mode
Automatic calibration mode
Low battery indicator
Clock setup
2х full magnification
Defective pixel repair option
Operating mode “City”
Operating mode “Forest”
Video output signal selection PAL/NTSC or video output disable
Brightness and contrast setup
Image inversion modes: “White hot”/“Black hot”
Cross for defective pixel repair
Return to default defective pixel pattern
Brightness setting of menu icons
Color modes
Stadiametric rangefinder
Operation on external power supply
2х
—
