STAND-ALONE MODE
To operate the projector without connecting a controller, enable a combination of setup options 4 and
5, the projector will run in Stand-Alone mode with automatic programmes (effect 1 or 2) depending on
the options that have been selected. See the section on “Setup Options – Projector Configuration” for
full details of the available combinations.
MASTER/SLAVE MODE
Without using a controller, many projectors can run synchronously in the Master/Slave mode by linking
them with each other.
Select one projector as the master with setting the DMX start address at random but setting the setup
options with automatic programmes. Regard the other projectors as the slaves setting all DMX start
address “001”.
Connect the master’s output to the first slave’s input, and connect the first slave’s output to the second
slave’s input. The rest may be deduced by analogy. Eventually connect the last slave’s output to a
DMX terminator. (Please refer to “Control Connections” diagram)
If the Master’s setup option 7 is “y”, movement of the Master is different from the Slaves.
Never have more than ONE projector configured as Master or the system will not work.
`

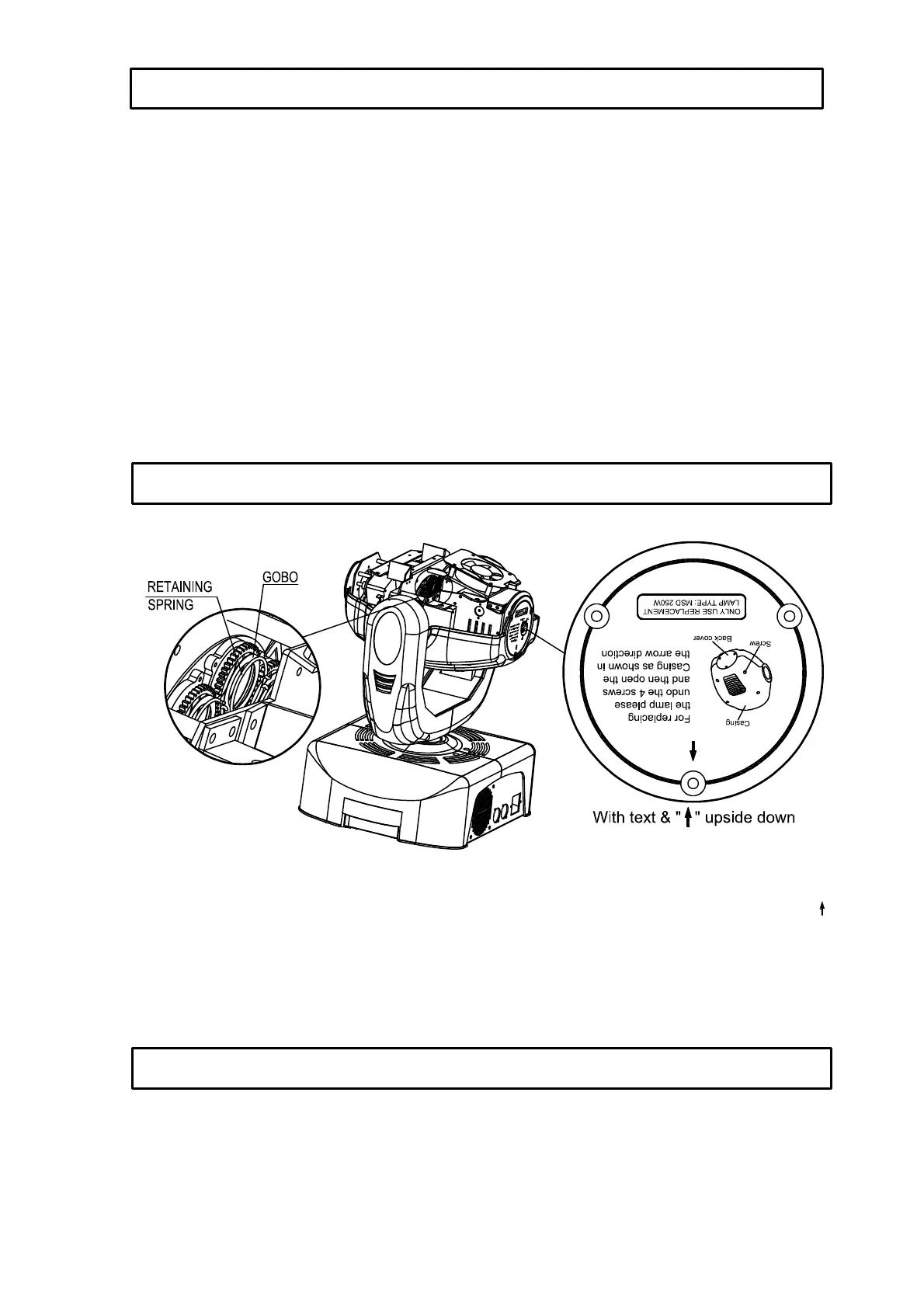

Carefully lift off the plastic cover by undoing the 4 M4 screws. (Note: The projector has two covers
with the same shape. The cover removed must be right one, so you can change the gobos easily. How
to remove the correct cover, the easy way is to position the projector with the back cover with text&“ “
upside down as shown above, and then remove the upward casing.)
Using a small screwdriver remove the gobo retaining spring.
Insert the gobo (or a glass gobo) into position, and then insert the retaining spring.
Mount the casing again and retighten the 4 M4 screws.
Note: It is recommended to add a little adhesive, such as high temperature silicon sealant, to hold
securely the retaining spring inside the gear.
To ensure the continued smooth rotation of the rotating gobos and linear motion of the lens for
focusing, it is recommended that the bearings for the gobo-pinions and the 2 shafts for the focusing
lens holder be lubricated periodically, preferably every two months. Use only high working temperature
low viscosity oil. When lubricate the bearings, a syringe with a fine needle is the easiest way to
introduce the oil to the bearings around each gobo. Do not over lubricate as this will cause spillage
when the wheel rotates.
CHANGING THE GOBOS
STAND-ALONE MODE & MASTER/SLAVE MODE
LUBRICATION
