PURE One Mini Series 2 User Manual

11

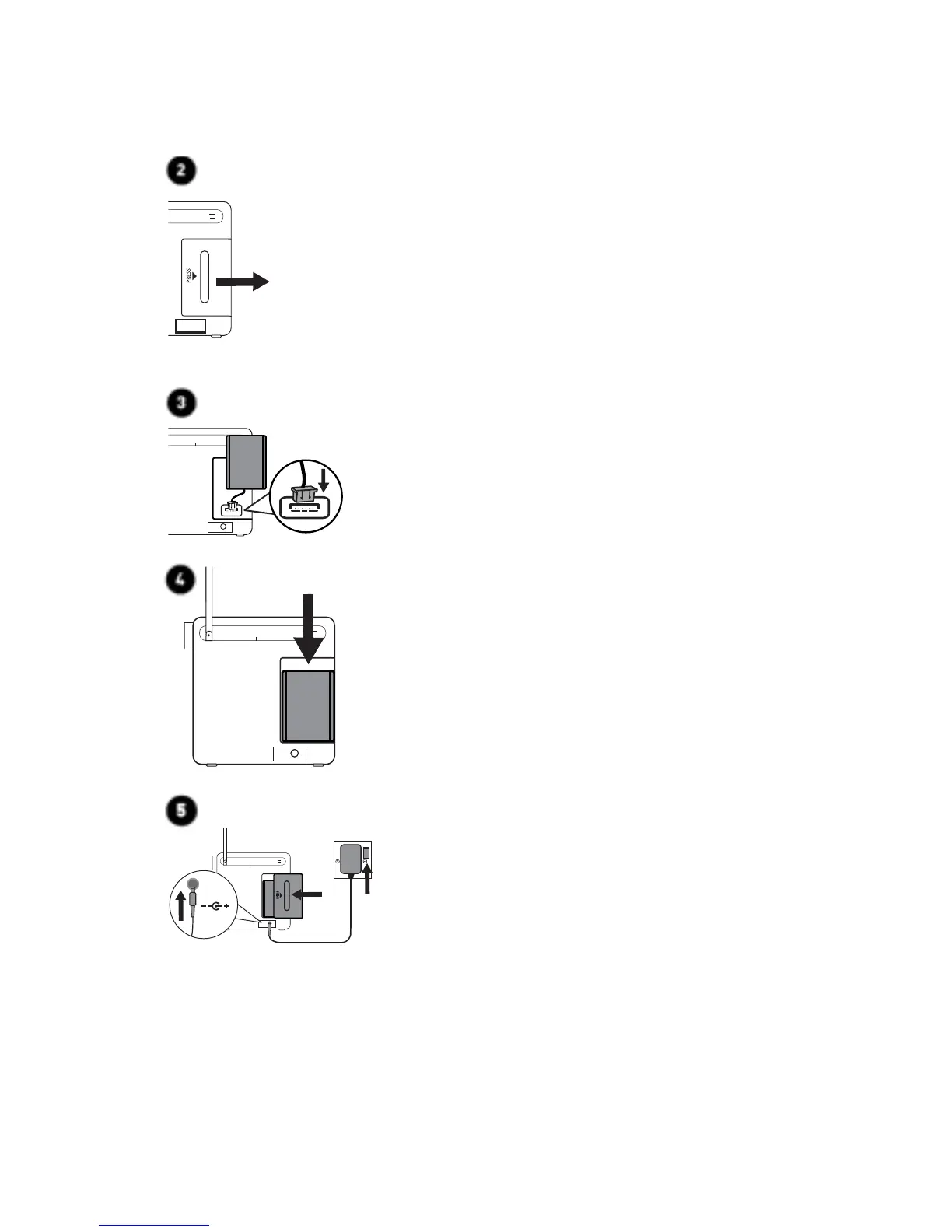

Installing the ChargePAK B1
1. Switch One Mini off and disconnect from
the mains power supply.
2. Open the battery compartment.
3. insert the ChargePAK connector plug into
the socket in the compartment. Line up
the ridges on the plug with the slots in the
socket to ensure correct orientation. Do
not force the plug.
4. Insert ChargePAK into the battery
compartment, logo side out.
5. Replace the battery cover and connect
One Mini to the mains.
6. ChargePAK will begin charging.
Note: When charging your ChargePAK
for the first time or after an extended
period of inactivity it is recommended
that it is charged for around 24 hours to
ensure full battery power. If ChargePAK is
in a highly discharged state there may be
a slight delay before the battery charging
indicator is displayed.
5.5V DC

PURE One Mini Series 2 Specifications

General

Radio type	Personal
Tuner type	Digital
PLL synthesizer	-
Supported radio bands	DAB, FM
Preset stations quantity	16
RMS rated power	1.6 W
Subwoofer driver diameter (imperial)	3 \
Display type	LCD
Display digits	32 digits
Headphone outputs	1
Headphone connectivity	3.5 mm
Product color	White
Input voltage	230, 5.5 V
Apple docking compatibility	Not supported
Power consumption (standby)	0.89 W
Power consumption (typical)	2.42 W
Certification	ETSI EN 300 401
Card reader integrated	No

Weight and Dimensions

Depth	60 mm
Width	130 mm
Height	135 mm
Weight	530 g
