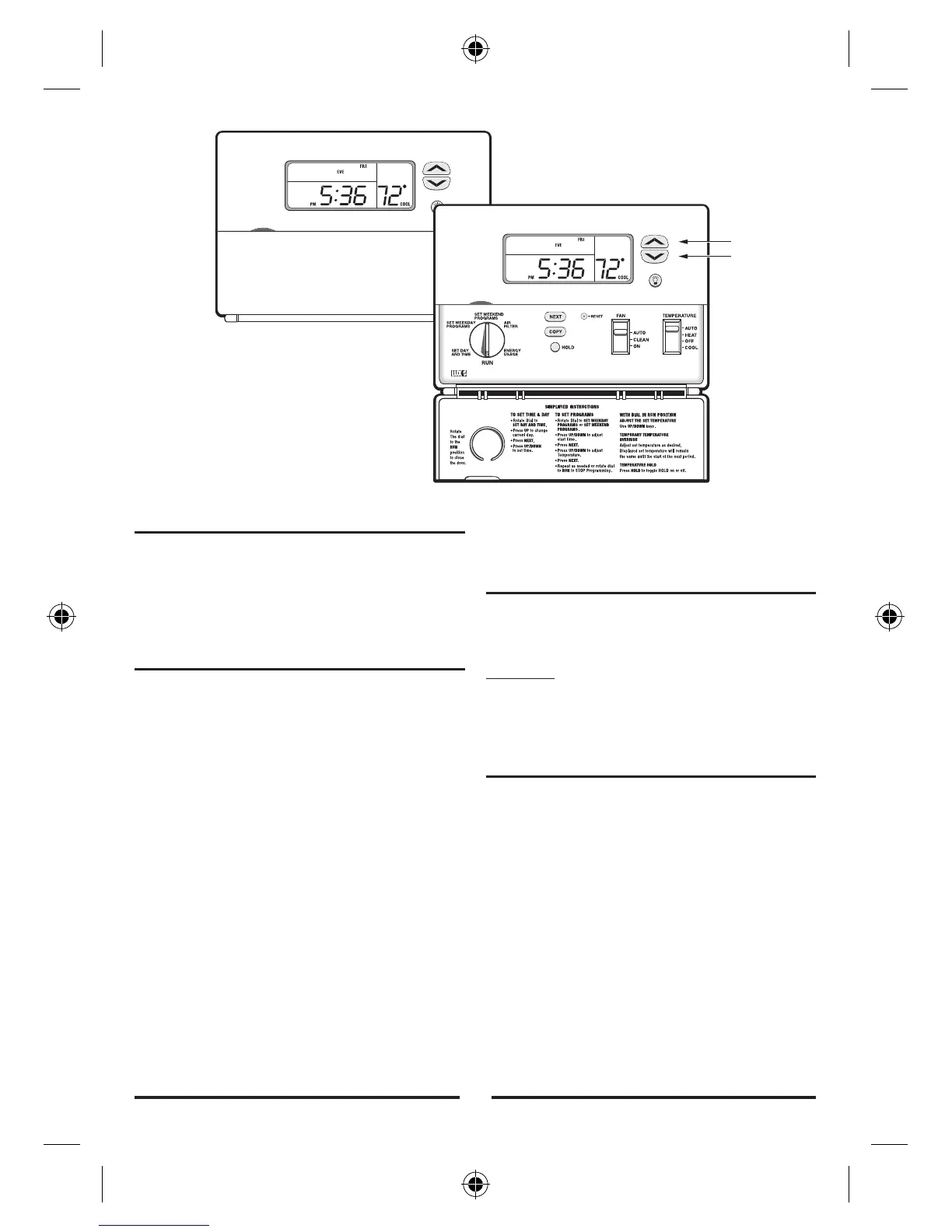

DP711
1 COMPATIBILITY
Your
DP711
is compatible with most 24 volt: 1-Heat /
1-Cool Gas, Oil, or Electric Heating and/or Cooling systems,
including single-stage heat pumps. It cannot be used with:
120 volt heating systems or 3 wire zone valves. Ask your
dealer for other PurePro
®
thermostats to control those
systems.
2 FEATURES
• DP711 controls a single stage of Heating and Cooling.
Terminals: RH, RC, W, Y, G, B, O, C
• Large Display
• Electro-luminescent Display Backlight
• Clean Cycle
®
(Patent No. 6,988,671) IAQ Independently
Programmable Fan
• 7 Day Programming
• 4 Periods Per Day
• Temporary Override 1-4hr (CAT24 Residential Compliant)
• Hold
• Optional Smart Recovery
• F/C Temperature Display
• 12/24 Hour Clock
• Easy Programming with Speed Dial
®
• Energy Usage Monitor
• Battery Free Nonvolatile Memory For All Programs and
Settings
• Auto-Changeover
• Keyboard Lockout
• Temperature Offset (User Calibration)
• System or Battery Powered (or Both)
• Adjustable Temperature Differential / Cycle Rate
• Programmable Auto-Changeover Dead-Band
3 ELECTRICAL RATINGS
• 30V maximum (24VAC nominal)
• 1.5A maximum per terminal
• 2.0A terminal sum
C A U T I O N:
Your thermostat is protected against normal static electric
discharges. To minimize the risk of damaging the unit in
extremely dry weather, touch a grounded metal object before
touching your thermostat.
4 INSTALLATION
4.1 TOOLS REQUIRED
• #1 Phillips screwdriver (small)
• Drill with 3/16-in. (4.8mm) bit
• Wire stripper/cutter
4.2 LOCATION
On replacement installations, mount the new thermostat in
place of the old one, unless the conditions listed below
suggest otherwise. On new installations, follow the guidelines
listed below.
• Locate the thermostat on an inside wall, about 5 ft. (1.5m)
above the floor, in a room that is used often.
• Do not locate where air circulation is poor, such as in a
corner or an alcove; or behind an open door.
