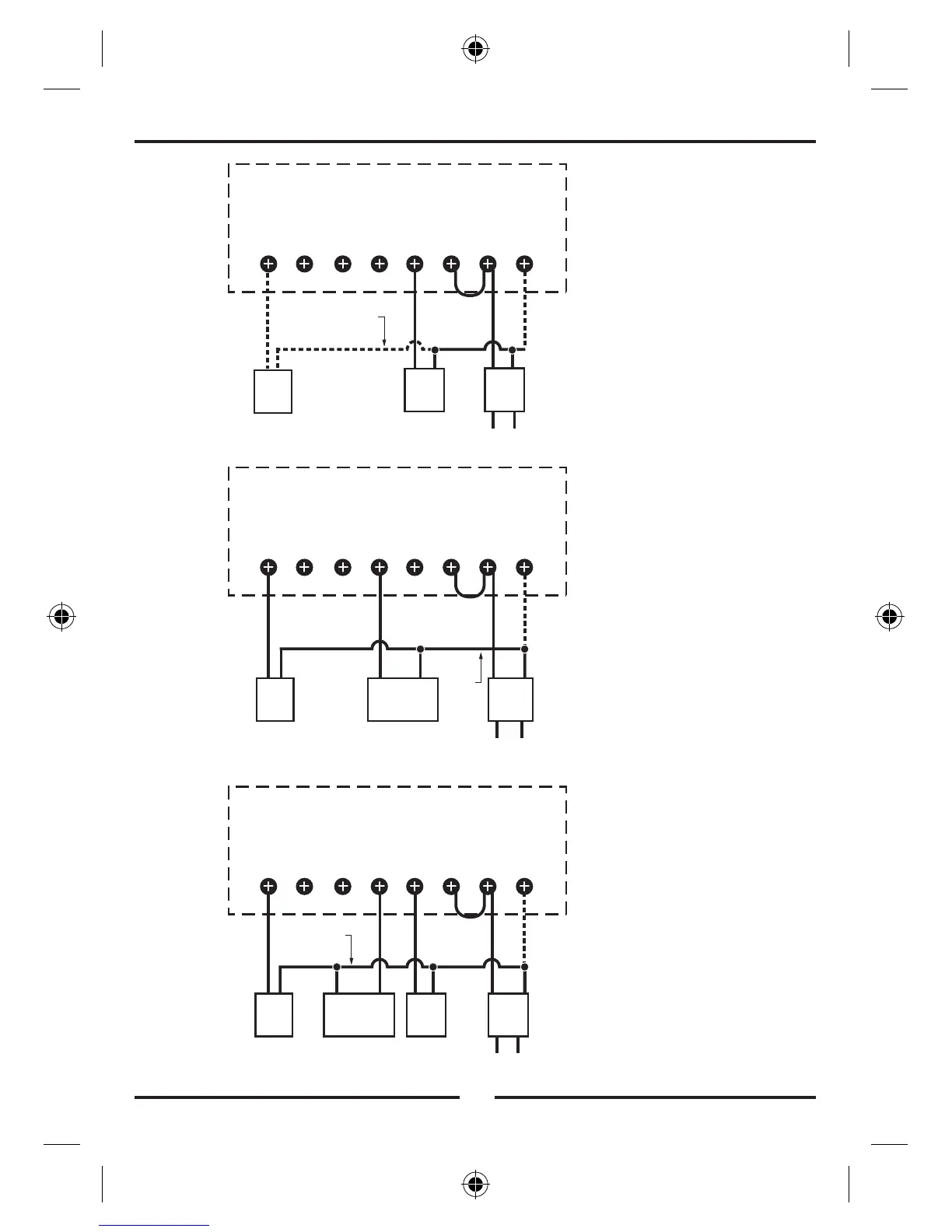

TYPICAL 2 OR 3 WIRE HEAT ONLY HOOKUP
24V AC AND MILIVOLT SYSTEMS
FAN
AC LINE
JUMPER
PROVIDED
Omit fan connections
for two wire systems.
XFMR
GAS
VALVE
SYSTEM
COMMON
GBO Y W RC RH C
TYPICAL SINGLE STAGE
COOL ONLY HOOKUP
FAN
COMPRESSOR
XFMR
AC LINE
JUMPER
PROVIDED
SYSTEM
COMMON
GBO Y W RC RH C
TYPICAL 24V AC 4 WIRE HOOKUP
SINGLE STAGE HEAT AND COOL
FAN
JUMPER
PROVIDED
GAS
VALVE
XFMR
AC LINE
COMPRESSOR
SYSTEM
COMMON
GBO Y W RC RH C
12 WIRING DIAGRAMS
WIRING DIAGRAM NOTES
1. Dashed lines are optional.
2. Optional common wire
allows system to power
thermostat.
3. Use “B” or “O” wire - but
not both in heat pump systems.
Generally neither are required
in a conventional system.
4. If “Y” and “C” wires are both
present, then “C” is a common
wire.
5. If a “B” wire in your system
is a common wire then
connecting it to the B terminal
may cause damage to your
system.
