NOTE: If the LED is off. Measure battery voltage with multi meter.
Atleast11Visneededtostartthecontroller.
NOTE: No charging status LED indicator with normal connection.
Measure the input voltage of solar module, the input voltage must
be higher than battery voltage!
TECHNICAL SPECIFICATIONS
The below information is based on a 12v / 24v Lead Acid battery
however can change depending on the type of battery being charged.
ACCESSORIES

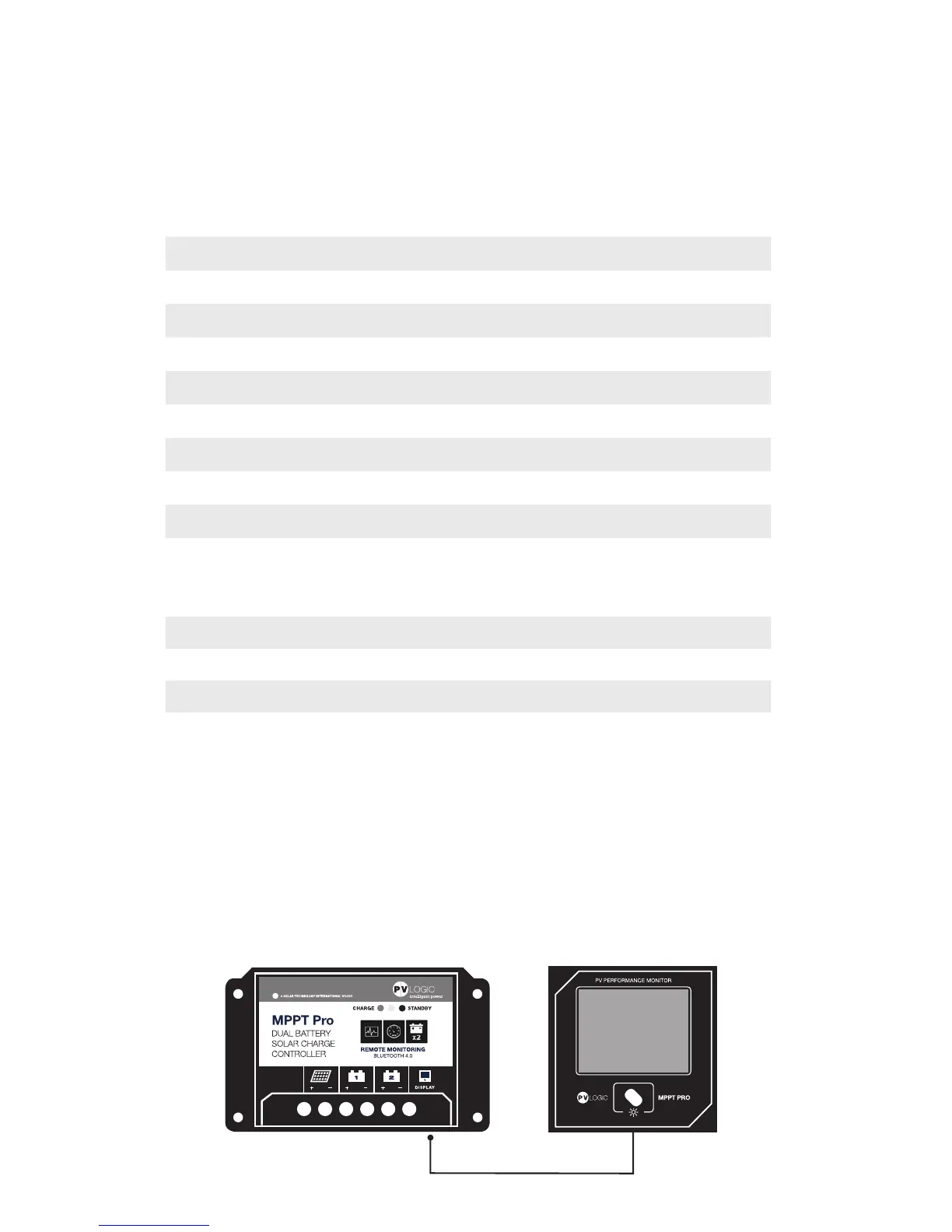

MPPT Pro remote display (STCC15DIS)
Remote back lit LCD Display showing the current solar charging
status, battery status (both batteries) and changing current.
Includes a 5m cable that simply plugs into the bottom of the
MPPT Pro controller.
Nominal System Voltage 12/24VDC (automatic system voltage recognition)
Battery Voltage Range 11-36V
Rated Battery Current / Solar Current 15A
Self-consumption ≤24mA
Operating temperature -35
o
C to +55
o
C
Overall dimensions 150 x 85 x 40mm
Mounting hole size (in case) 3.8mm
Terminals 6mm
2
Net weight 220g
Over Voltage Disconnect Voltage 16V/32V
Charging Limit Voltage 15.5V/31V
Equalize Charging Voltage 14.8V/29.6V
Float Charging Voltage 13.8/27.6V
CHARGE CONTROLLER REMOTE DISPLAY
