Quick Cure Mode

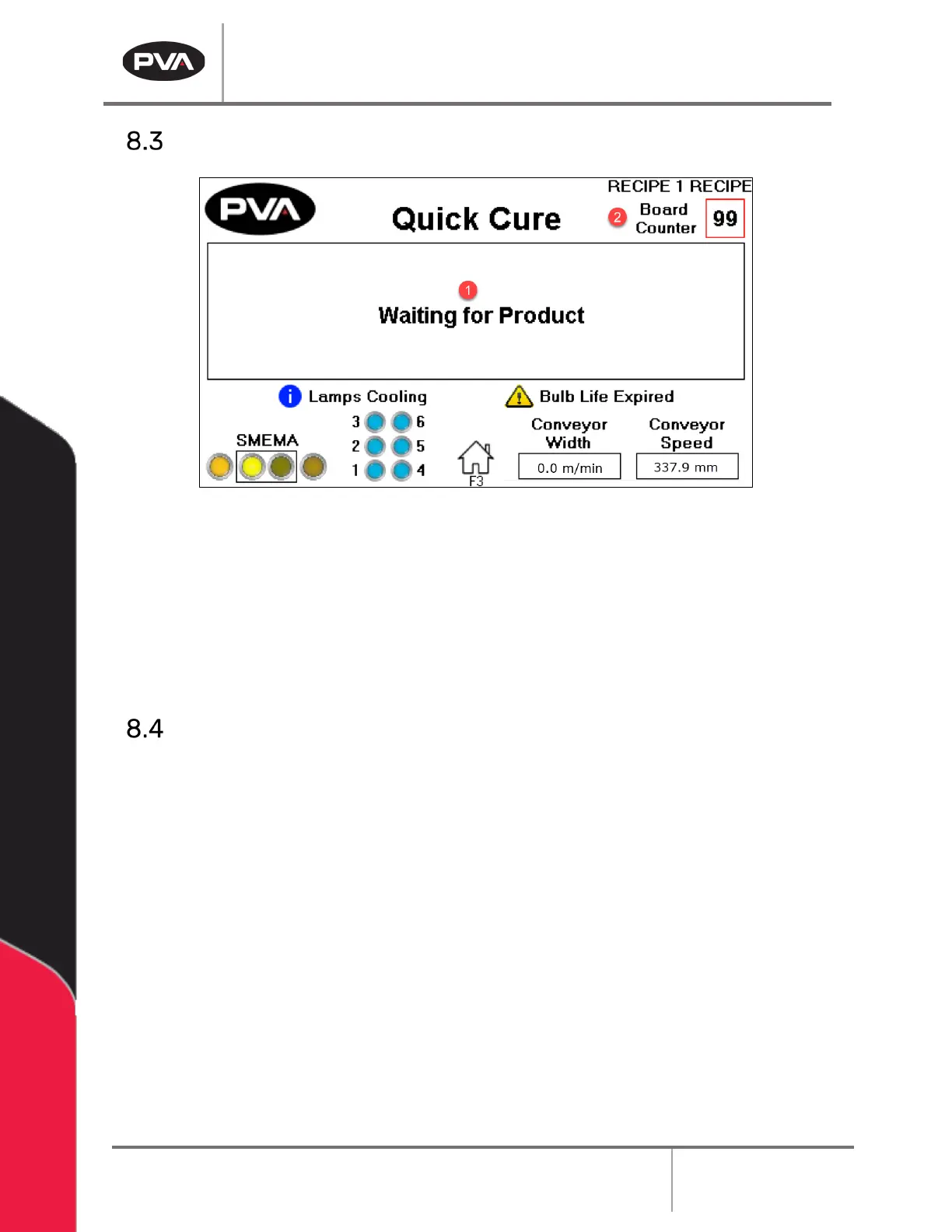

13BFigure 13: Quick Cure Auto Cycle
1.
79BProcess Zone Messages will display information and state changes for the process
zone. If enabled, the Manual Unload button will appear as well.
2.
80BThe Board Counter displays the number of boards in the oven. It can be reset by
pressing and holding the Board Counter section of the screen.
Lamp On/Off Cycling
• 81BFull Processing Mode: The UV Lamps have an automatic shutoff feature (Inactive
Timeout) that turns the lamp(s) off after a set time. The time for this is set at the
factory. The timer begins after a board clears the sensor just after the lamps.
•
82BQuick Cure Mode: The UV Lamps are on at all times, unless a board is ready to exit
the oven but the downstream machine is not ready. At this point, the lamps shut off
to prevent a board from possibly burning under the lamps. The lamps will turn back
on once the downstream machine is ready.
•
83BSafe Processing Mode: The UV Lamps only turn on to process the board and turn
off when trafficking the board upstream or downstream.
