Settings

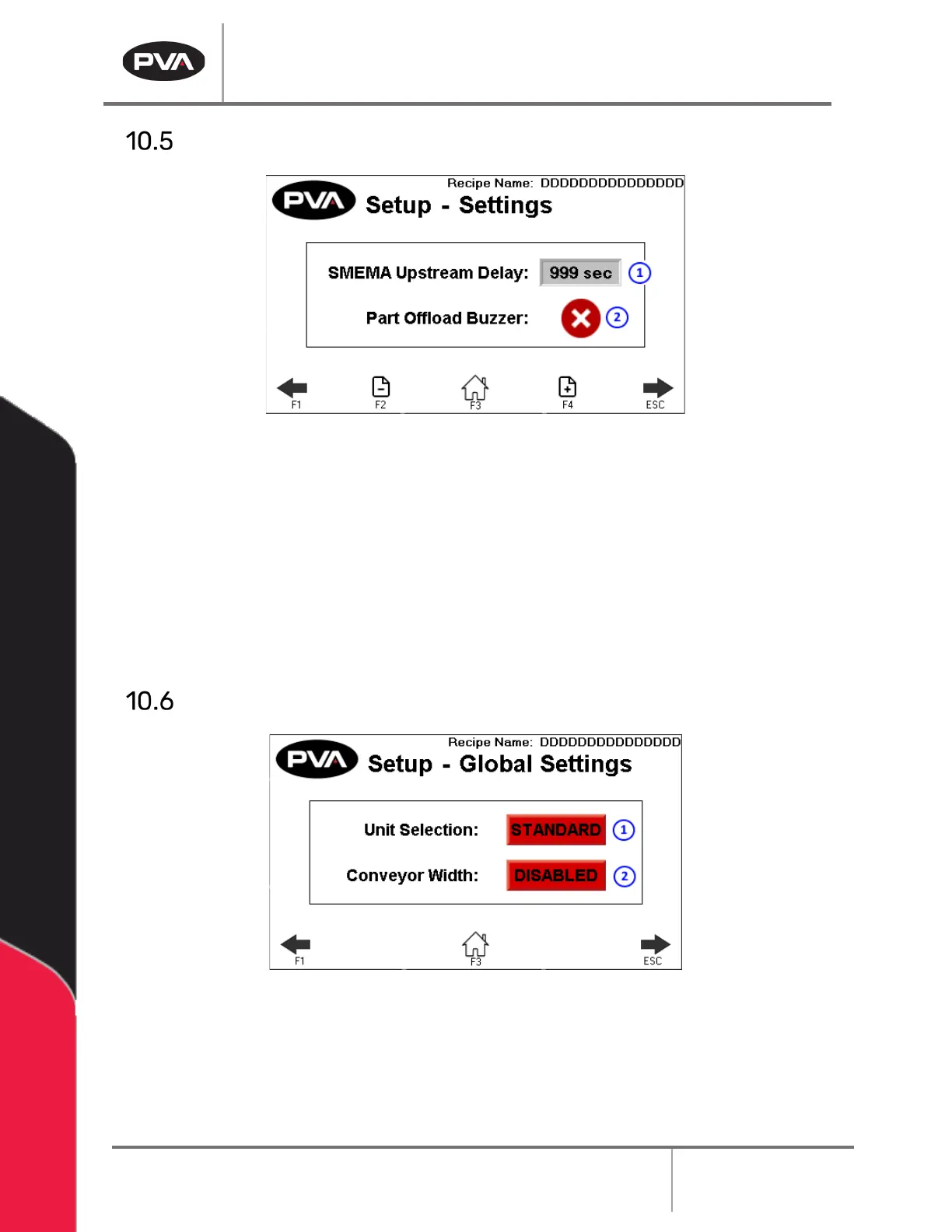

27BFigure 27: Setup Settings
1.
141BThe SMEMA Upstream Delay is for Quick Cure Process Mode only. After a board
traffics into the machine from upstream, the SMEMA Upstream Ready will not turn
back on until the delay is over. The timer begins counting once the board has
passed the inlet PIP sensor. The default time is 3 seconds.
2.
142BThe Part Offload Buzzer Alarm allows a periodic alarm to sound if a board is
waiting for downstream SMEMA for more than the designated timer value. The
default time is 30 seconds.
Global Settings
28BFigure 28: Global Settings 1
1.
143BUnit Selection allows you to choose between standard or metric units.
2.
144BEnable Conveyor Width to allow the conveyor width to move to the current recipe
position during Auto Cycle and after homing.
