PVA Spectra UV - Manual PIP Status

Spectra UV
Revision D / January 2022
Page 28 of 47
Manual PIP Status
267BThis screen shows the status of the conveyor’s PIP inputs including the inlets, queue, and
process
430BNote: The Process End PIP will only show if there are no bottom lamps present in the
system.

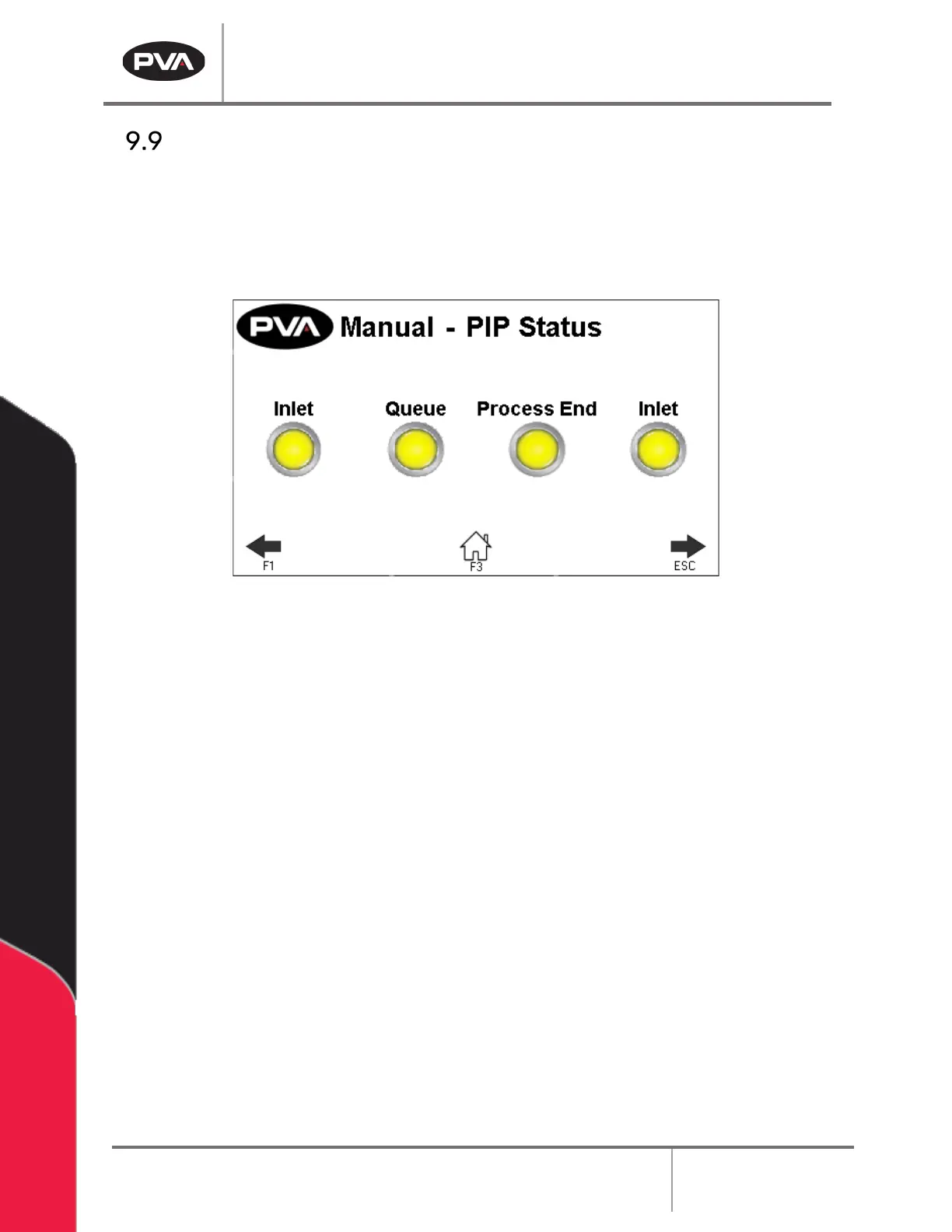

22BFigure 22: Manual PIP Status
