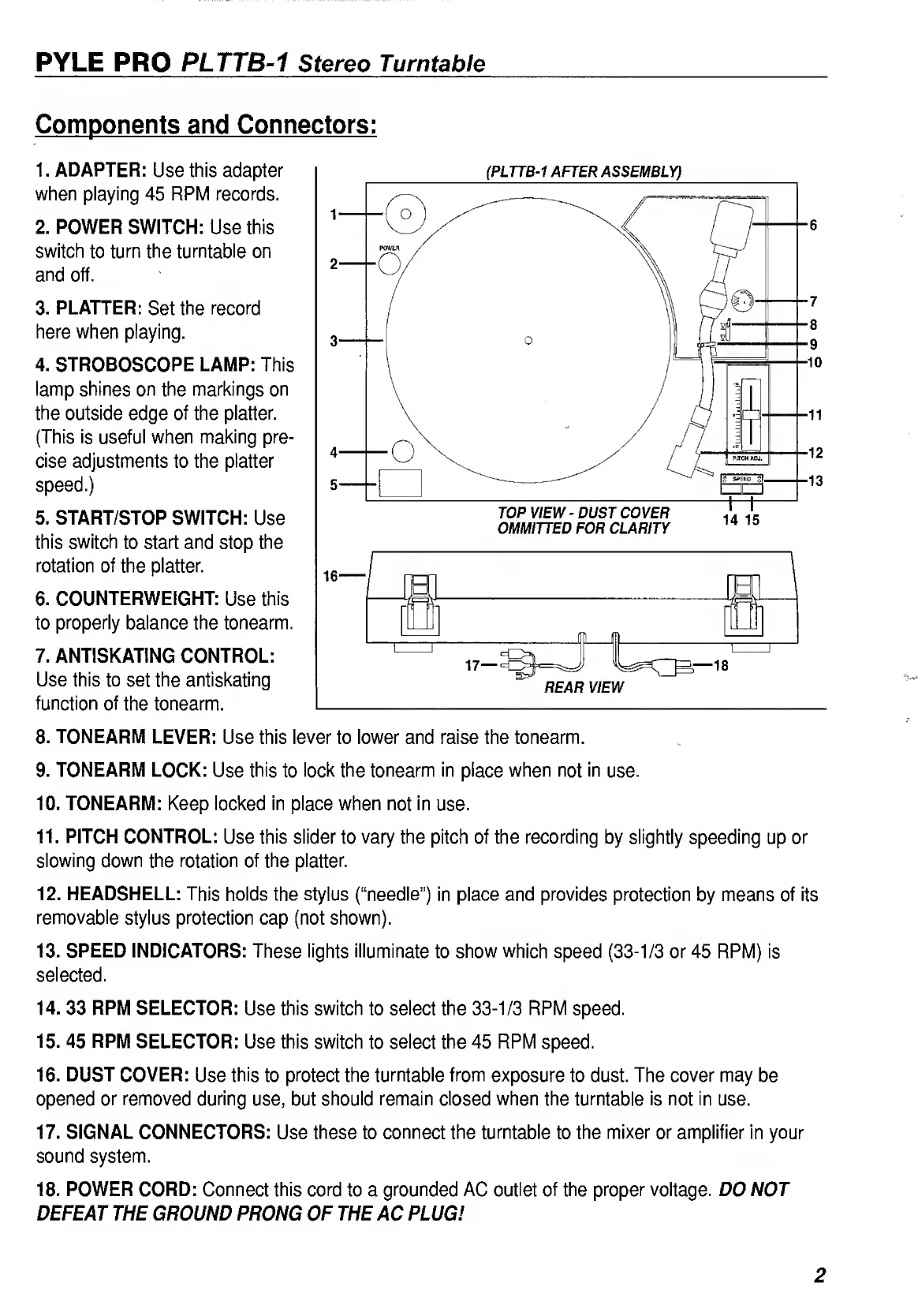

PYLE
PRO
PLTTB-1
Stereo
Turntable
Components
and
Connectors:
1.
ADAPTER:
Use
this
adapter
when
playing
45
RPM
records.
2.
POWER
SWITCH:
Use
this
switch
to
turn
the
turntable
on
and
off.
3.
PLATTER:
Set
the
record
here
when
playing.
4.
STROBOSCOPE
LAMP:
This
lamp
shines
on
the
markings
on
the
outside
edge
of
the
platter.
(This
is
useful
when
making
pre¬
cise
adjustments
to
the
platter
speed.)
5.
START/STOP
SWITCH:
Use
this
switch
to
start
and
stop
the
rotation
of
the
platter.
6.
COUNTERWEIGHT:
Use
this
to
properly
balance
the
tonearm.
7.
ANTISKATING
CONTROL:
Use
this
to
set
the
antiskating
function
of
the
tonearm.
8.
TONEARM
LEVER:
Use
this
lever
to
lower
and
raise
the
tonearm.
9.
TONEARM
LOCK:
Use
this
to
lock
the
tonearm
in
place
when
not
in
use.
10.
TONEARM:
Keep
locked
in
place
when
not
in
use.
11.
PITCH
CONTROL:
Use
this
slider
to
vary
the
pitch
of
the
recording
by
slightly
speeding
up
or
slowing
down
the
rotation
of
the
platter.
12.
HEADSHELL:
This
holds
the
stylus
(“needle”)
in
place
and
provides
protection
by
means
of
its
removable
stylus
protection
cap
(not
shown).
13.
SPEED
INDICATORS:
These
lights
illuminate
to
show
which
speed
(33-1/3
or
45
RPM)
is
selected.
14.
33
RPM
SELECTOR:
Use
this
switch
to
select
the
33-1/3
RPM
speed.
15.
45
RPM
SELECTOR:
Use
this
switch
to
select
the
45
RPM
speed.
16.
DUST
COVER:
Use
this
to
protect
the
turntable
from
exposure
to
dust.
The
cover
may
be
opened
or
removed
during
use,
but
should
remain
closed
when
the
turntable
is
not
in
use.
17.
SIGNAL
CONNECTORS:
Use
these
to
connect
the
turntable
to
the
mixer
or
amplifier
in
your
sound
system.
18.
POWER
CORD:
Connect
this
cord
to
a
grounded
AC
outlet
of
the
proper
voltage.
DO
NOT
DEFEAT
THE
GROUND
PRONG
OF
THE
AC
PLUG!
2
