Pyle PDWM1902 User Manual

3

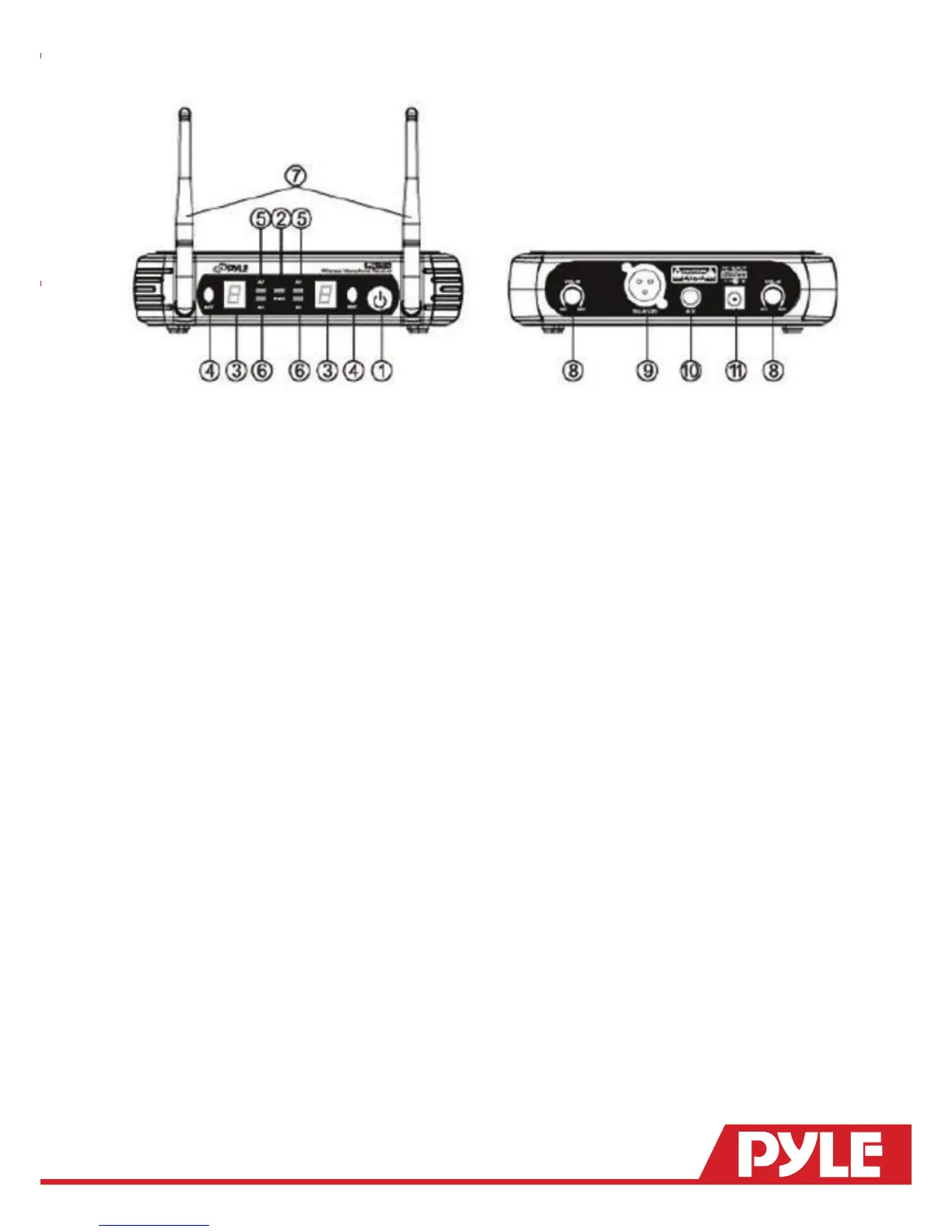

1. Power Button: Power ON/OFF the receiver.
2. Power Indicator: Indicate the power ON/OFF.
3. Channel Display: Indicates the frequency data of the selected channel group.
4. SET Function Button: Sets channel data.
5. "AF"Audio Level Indicator: Indicate the wireless system audio signal level.
6. "RF" signal indicator: it glows when the Receiver receive RF signal from Transmitter.
7. Antenna.
8. Volume Knob: Adjust the volume output of receiver.
9. XLR Balanced Output Jack: Connect the audio cable from this jack to the input port of amplier, mixer.
10. 1/4" Audio Output Jack: Connect the audio cable from this jack to the input port of amplier, mixer.
11. Power Jack: Connect the AC/DC adapter to receiver.
