Pyle pldnv66b User Manual

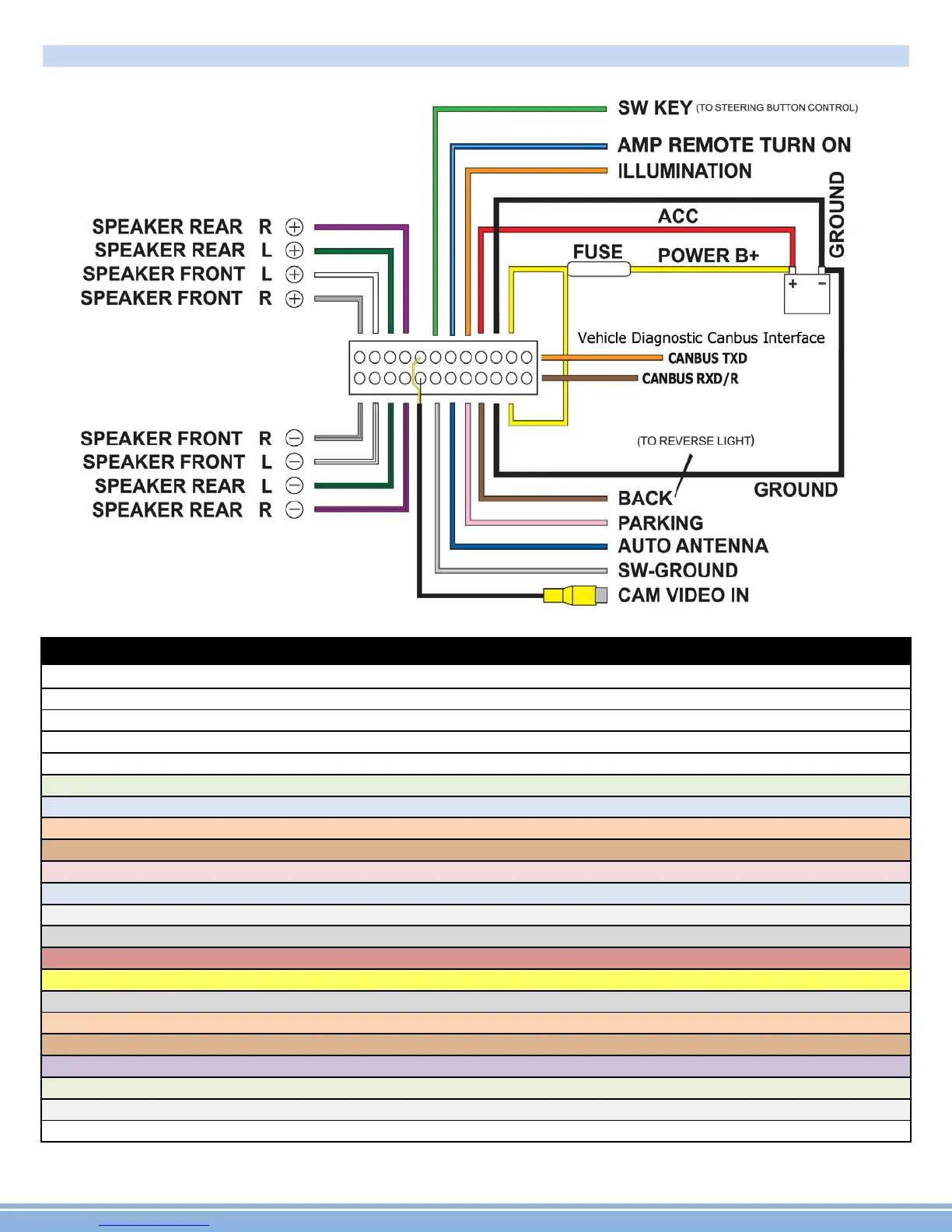

Wiring - Color Wiring:
*Brown wire tells the monitor when to activate and display rearview camera on the display (optional)
Wiring
Radio Antenna
Radio antenna receptacle
Subwoofer Output
Pre amp subwoofer output (5V)
Audio / Video Input
Auxiliary input for external hardware
Audio / Video Output 1
Connect to headrest display (Optional)
Audio / Video Output 2
Connect to headrest display (Optional)
Green/White
SW KEY
Steering wheel control Key 1 interface wire
Blue/White
AMP REMOTE TURN ON
DC 12 + Volt Remote turn on trigger for external amplifier
Orange
ILLUMINATION
12 volt + trigger dash board illumination
Brown
BACK
12 volt + trigger from reverse lights
Pink
PARKING
Connect to parking brake ground. Disables video play unless grounded
Blue
AUTO ANTENNA
12 volt + trigger output
Gray/White
SW-GROUND
Steering wheel control Key 2 interface wire
Black (RCA)
CAM VIDEO IN
Camera RCA video input for use with rearview camera
Red
ACC
Ignition Accessory 12V+
Yellow
FUSE/ POWER B+
Connect to (+) side of car battery
Black
GROUND
Connect to (–) side of car battery
Orange
CANBUS INTERFACE
TXD - Vehicle Diagnostic CANBUS Interface
Brown
CANBUS INTERFACE
RXD/R - Vehicle Diagnostic CANBUS Interface
Purple
Speaker Rear R
Rear right speaker Purple (+) Purple/Black (-)
Green
Speaker Rear L
Rear left speaker Green (+) Green/Black (-)
Gray
Speaker Front R
Front right speaker Gray (+) Gray/Black (-)
White
Speaker Front L
Front left speaker White (+) White/Black (-)
PyleAudio.com
13.

Pyle pldnv66b Specifications

General

Brand	Pyle
Model	pldnv66b
Category	Stereo Receiver
Language	English
