If you need to replace the power fuse, replace it only with a fuse
idenetical to that supplied with the amplifier, Using a fuse of a
different type or rating may result in damage to your audio
system or your amplifier which is not covered by the
manufacturer’s warranty.
Don't misuse the level control!
Do not mistake the input level control for a volume control! It is
designed ONLY to match the output level of your audio source
to the input level of your amplifier.
Do not adjust this input level to maximum unless your input level
requires it.
Ignoring these instructions will result in an input overload to the
amplifier, and excessive audio distortion. It can also cause the
protection circuit to engage

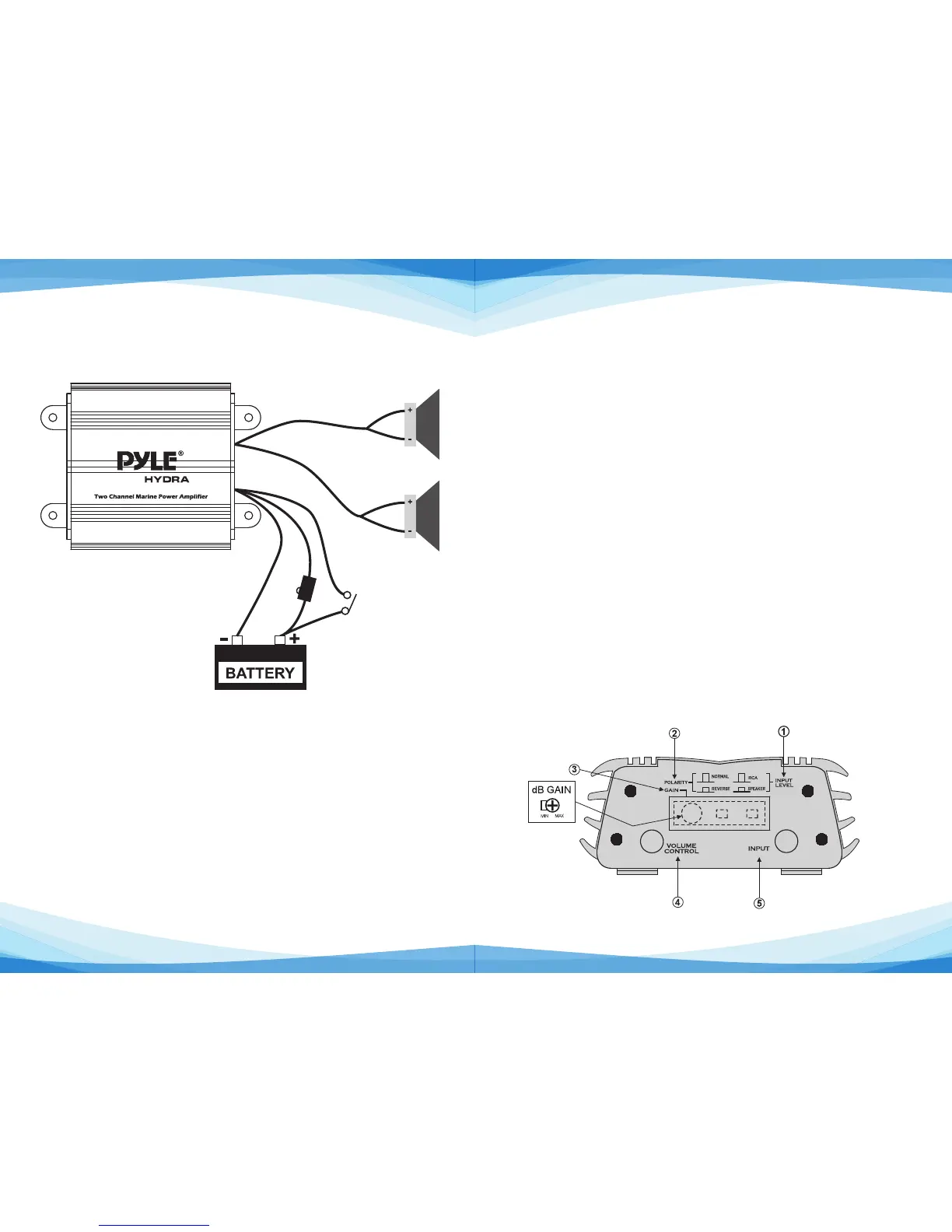

Controls, Input and Output Cables:
Power and Speaker Wiring
Wire Color
Red
Black Blue
White Walte/Bladt Gray
Gray/Black
Description
Battery (•, 12dc
Barrery (-), Ground
Remote Turn On, 12vdC = ON
CHI (+)
CHI (-) CH2 (+I CH2 (-)
5 2
