V V
MODE
9" TFT LCD COLOR MONITOR
PLAY STOP
8
Note: This machine is suitable to some types of the car not all types.

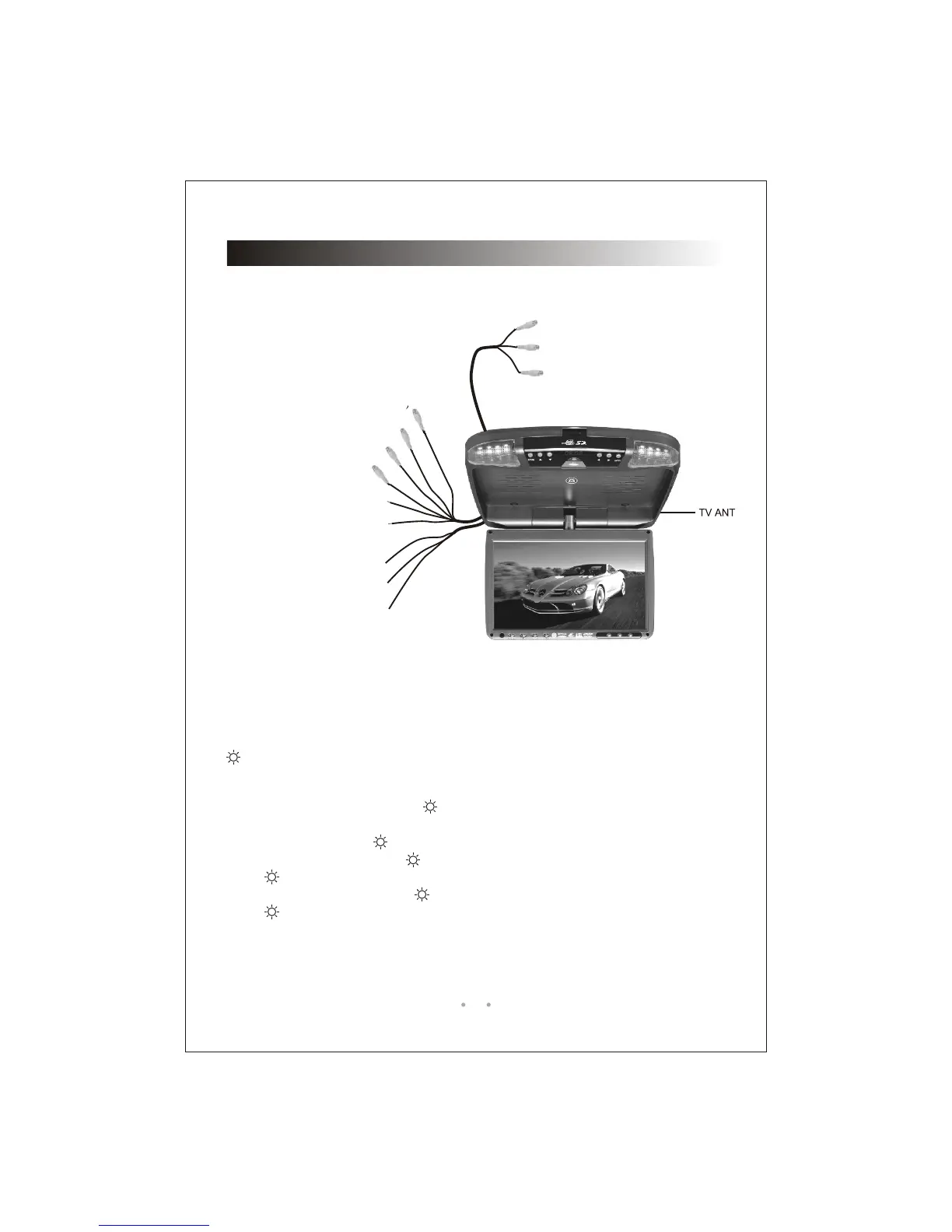

Wiring Diagram
key: LIGHT SWITCH / TIME ADJUSTMENT
A. Light switch
During initialization mode; Press shortly to switch on/off light.
B. Time adjustment
During any mode, Press 3 seconds to enter time adjustment mode.
The HOUR is twinkling, Press shortly to adjust the correct number
Press 3 seconds to finish hour adjustment and adjust MINUTE.
The MINUTE is twinkling, Press shortly to adjust the correct number.
Press 3 seconds again to finish time adjustment.
YELLOW RCA (V OUT)
WHITE RCA (AUDIO OUT)
RED RCA (AUDIO OUT)
AV INPUT:
WHITE RCA (L AUDIO IN)
RED RCA ( R AUDIO IN)
YELLOW RCA (VIDEO 1 IN)
YELLOW RCA ( VIDEO 2 IN)
POWER:
RED WIRE (+12V SWITCHED)
BLACK WIRE (-12V GROUND)
DOME LAMPS:
BLUE: GROUND
YELLOW WIRE: + DOOR SWITCH
RED WIRE: CONSTANT +12V
* FOR BETTER UNDERSTANDING ALL WIRES ARE PROPERLY TAGED.
Roofmounting monitor with multi-media player
