OPERATION
1. POWER
Use this button to turn ON or OFF the speakers.
Caution: Make sure that all connections are properly connected and the main
volume is set to minimum level before turning ON the unit.
2. INPUT SELECT
Select the input source: CD/DVD, USB, Radio.
3. MICROPHONE VOLUME: MIC VOL
Adujst "MIC VOL" knob to increase or decrease the karaoke volume
4. ECHO
Adjust "ECHO" to get a satiable echo eect.
5. TREBLE/BASS
Turn TREBLE/BASS knob to adjust treble/bass tone master channel.
6. MASTER VOLUME
You can adjust MASTER VOLUME from turn right volume up , turn left volume
down.

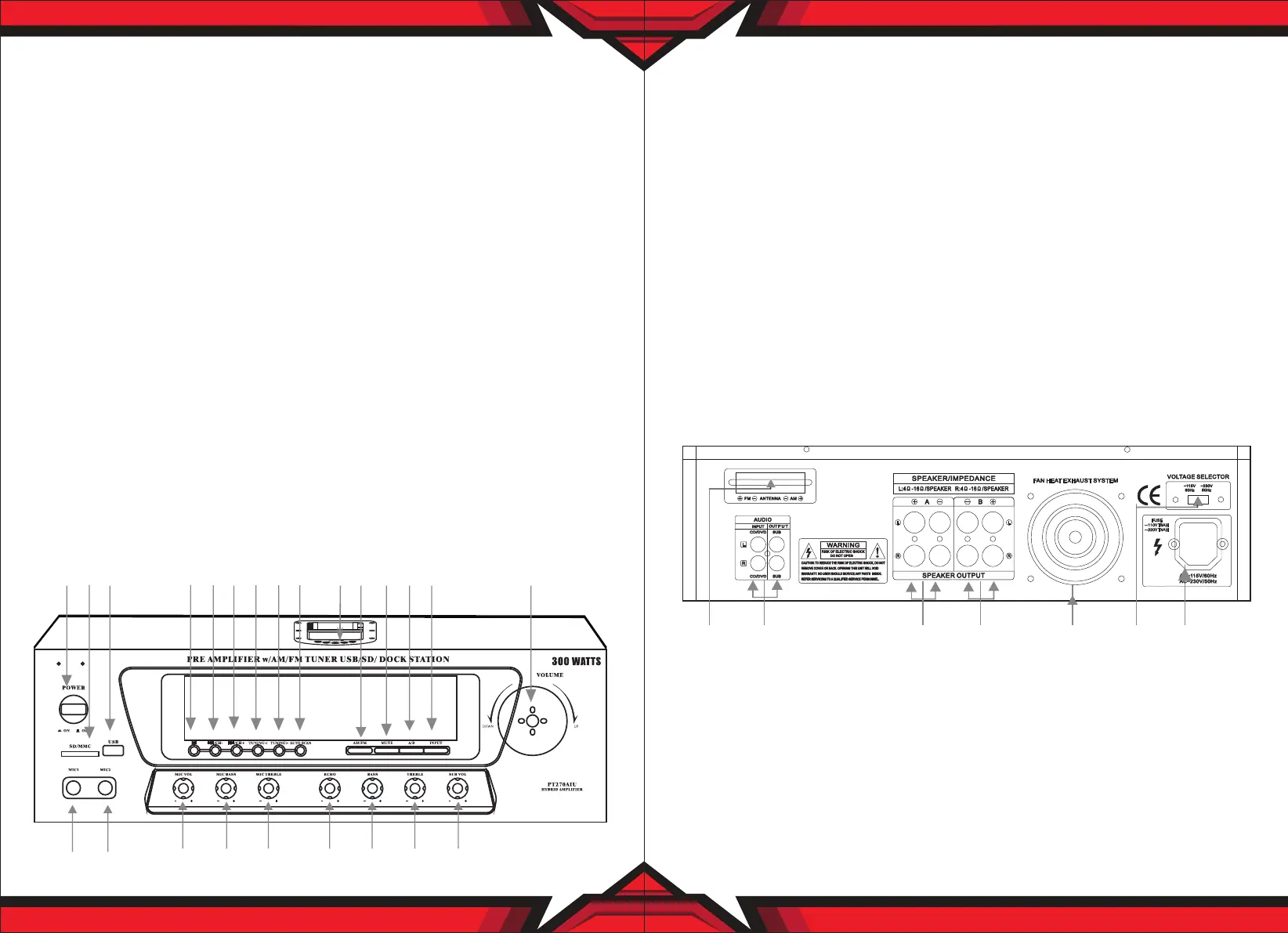

CONTROLS & FUNCTIONS
FRONT PANEL
1. POWER SWITCH
Press to power unit ON/OFF
2. SD/MMC CARD READER
3. USB READER
4. PLAY/PAUSE
5. PREV
Used to select the Previous station
which have been kept in system
6. NEXT
Used to select the next station
which have been kept in system
7. TUNING <
8. TUNING >
9. AUTOSCAN
Auto search for radio station
BACK PANEL
1. TUNER ANT: Connect for AM and FM antennas.
2. AUDIO INPUT JACKS:
Connect the audio ouput jacks of DVD/CD AUX to these jacks.
3. A SPEAKER OUTPUT TERMINALS:
Connect your speaker system to these terminals.
4. B SPEAKER OUTPUT TERMINALS:
Connect other speaker system(s) to these terminals.
5. COOLING FAN
6. VOLTAGE SELECTOR SWITCH: Slide to select correct voltage 110V or 220V.
7. POWER CORD: Connect to AC 110V/60Hz and 220V/50Hz outlet.
www.PyleUSA.com
3
www.PyleUSA.com
4
10. IPOD DOCK
11. AM/FM SELECTOR
12. MUTE
13. A/B SPEAKERS OUTPUT SELECTOR
14. INPUT SELECTOR
15. VOLUME CONTROL
16. SUB.VOL CONTROL
17. TREBLE
18. BASS
19. ECHO
20. MIC. TREBLE
21. MIC. BASS
22. MIC. VOL
23. MIC 2 INPUT
24. MIC 1 INPUT
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
24 23 22 21 20 19 18 17 16
www.PyleU S A.com
1 2 3 4 5 6 7
