3
No. Part Silk-screen Function
18 48VDC input 48V DC
Power supply: take 48VDC power from outside
(from
AC/DC
adaptor).

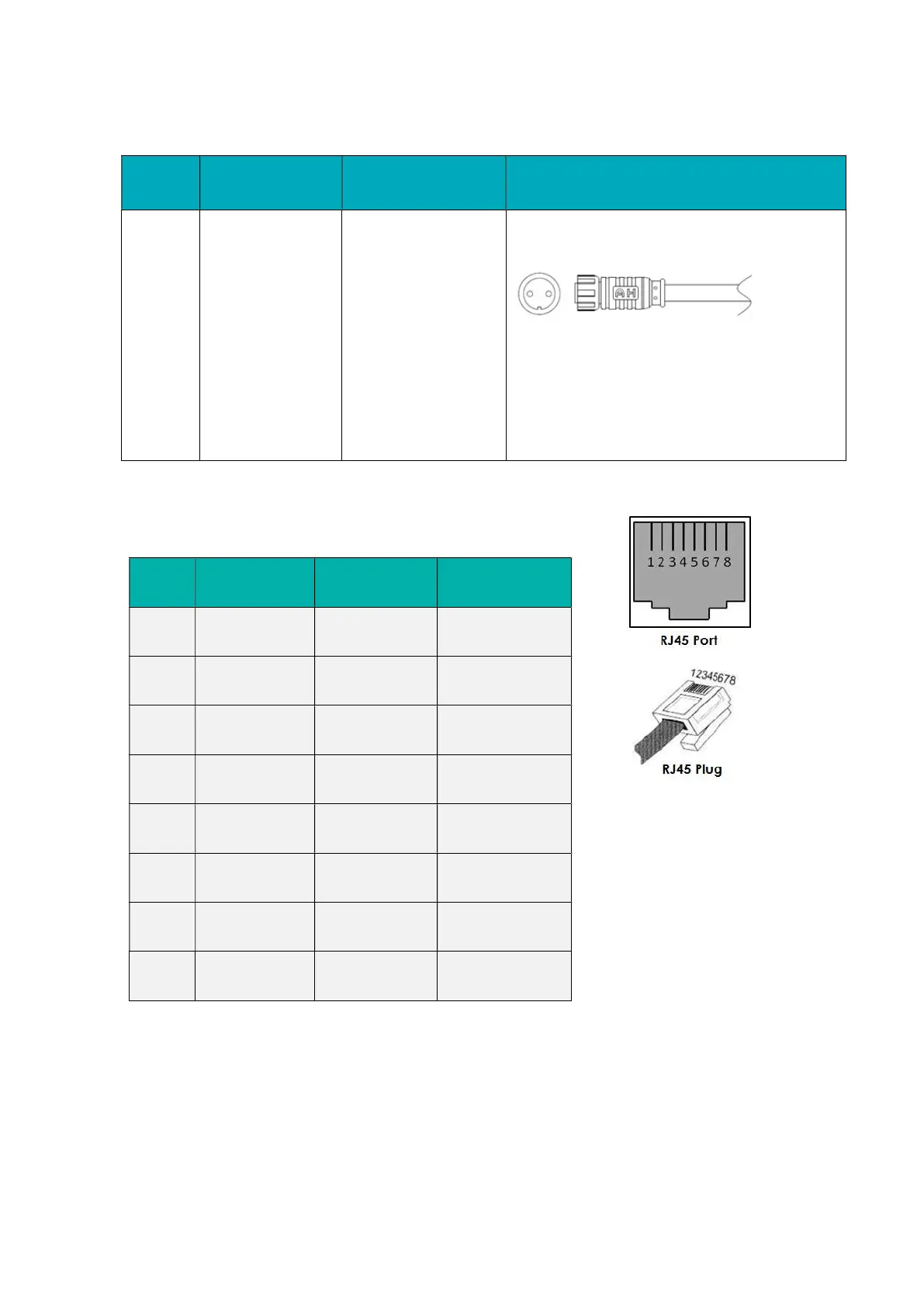

2.2 Definition of RJ45 Port Pin
No. CAN OUT RS485 RS232 Pin
1 --- --- ---
2 GND --- ---
3 --- --- TX
4 CANH --- ---
5 CANL --- ---
6 --- GND RX
7 --- RS485A ---
8 --- RS485B GND
