Pylontech US5000 Series User Manual

12
CAN
500 Kbps. Recommended 120Ω. To inverter or upper battery.
RS485
9600 or 115200 bps. Recommended 120Ω. To inverter or slave battery.
Link Port 0, 1
For communication between multiple parallel batteries.

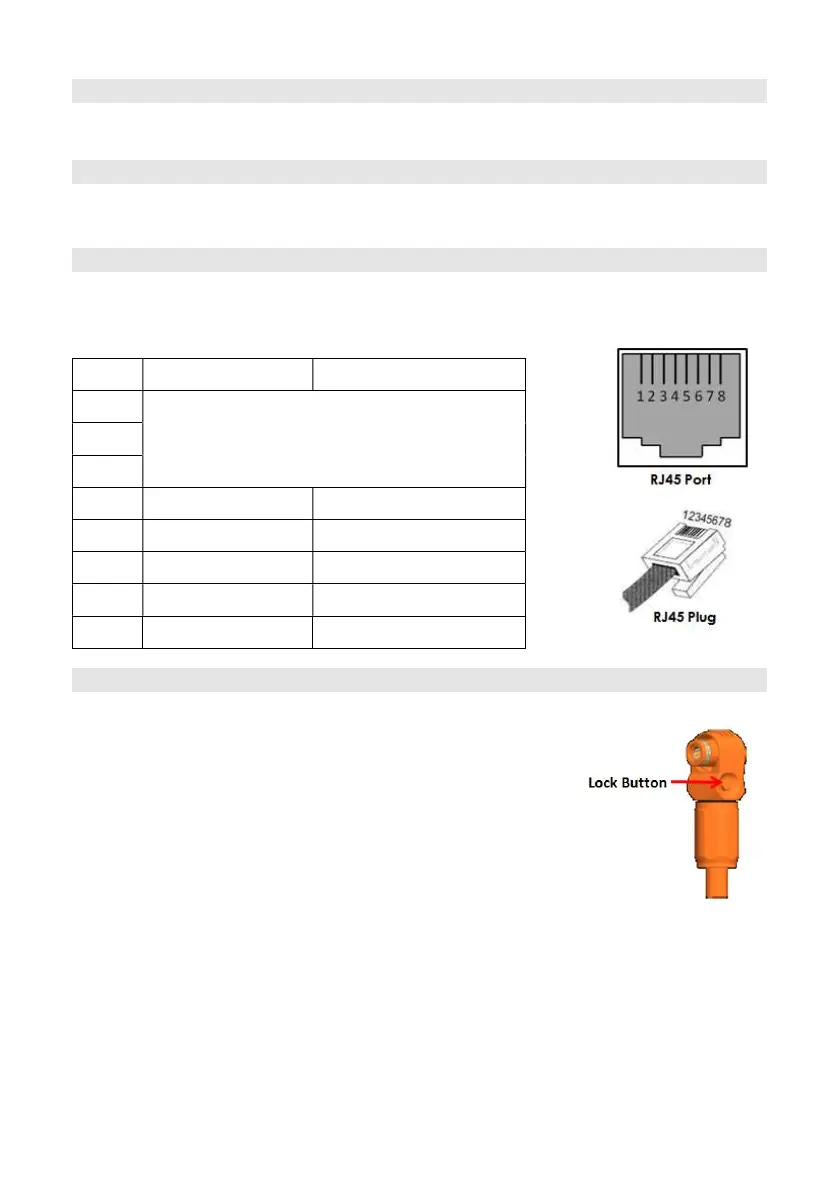

Definition of RJ45 Port Pin
A/CAN B/RS485
Pin1 These pins shall be NULL.
If not, may influence communication
between BMS and inverter.
Pin2
Pin3
Pin4 CAN-H CAN-H
Pin5 CAH-L CAN-L
Pin6 CAN-GND CAN-GND
Pin7 485A 485A
Pin8 485B 485B
Power Terminals
Power cable terminals: there are two pair of terminals
with same function, one connects to equipment, the
other one paralleling to other battery module for
capacity expanding.
For power cables uses self-locked connectors. must
keep pressing this Lock Button while pulling out the
power plug.
