2) For External cable kits:
NOTE: Power and communication cables connect to inverter belongs to an
External Cable Kit, NOT include in battery carton box . They are in another
extra small cable box. If there is anything missed, please contact dealer.

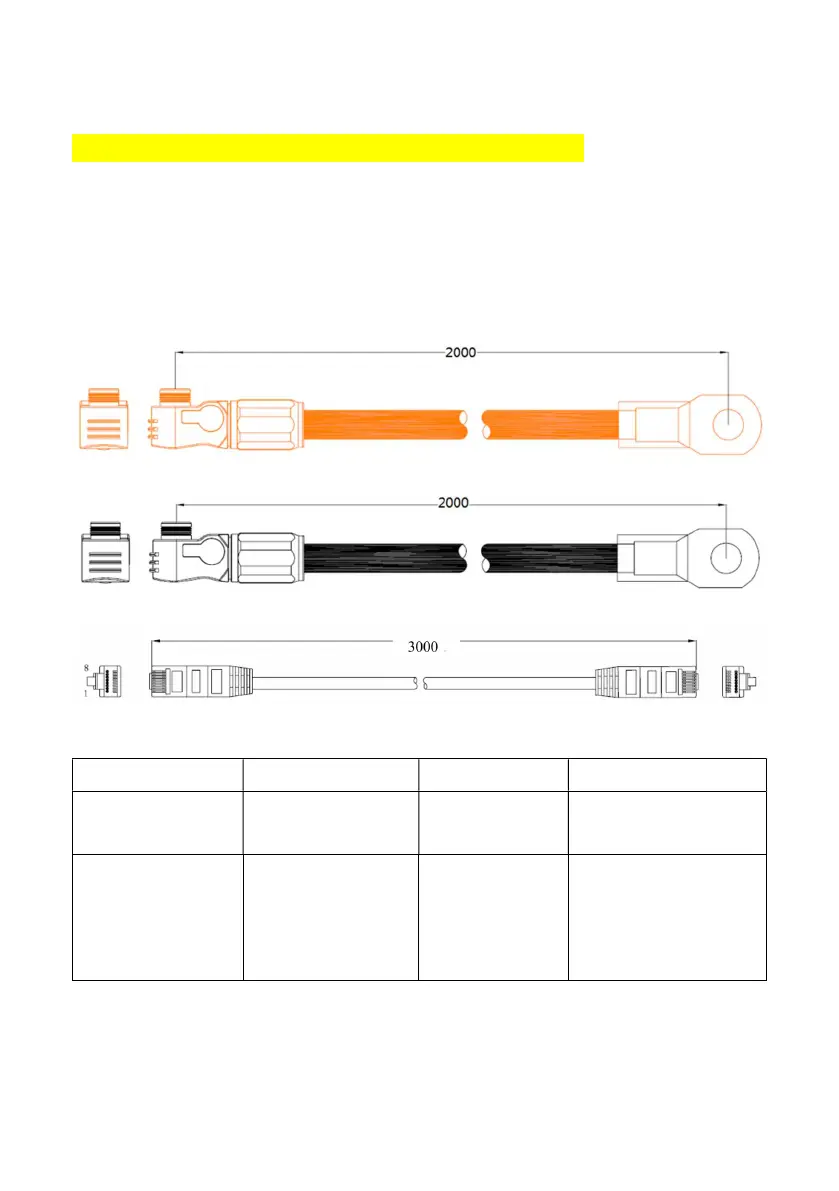

- 2 * 2000mm power cables (4 AWG, peak current capacity 120A, constant
100A) and communication cable for each energy storage system.
- 2 * 3000mm RJ45 communication cable, specification as below:
SN of RJ45cable Mark Pin
WI0SCAN30RJ1
With blue
mark:
Battery-Inverter
1~3: NULL
4~8: pin to pin
For connection to
inverter and HUB
WI0SCAN35RJ3
With silver mark:
Battery-Battery
1~8: pin to pin
For parallel
connection
between master
batteries
For the external cables, the length shall less than 3 meters.
