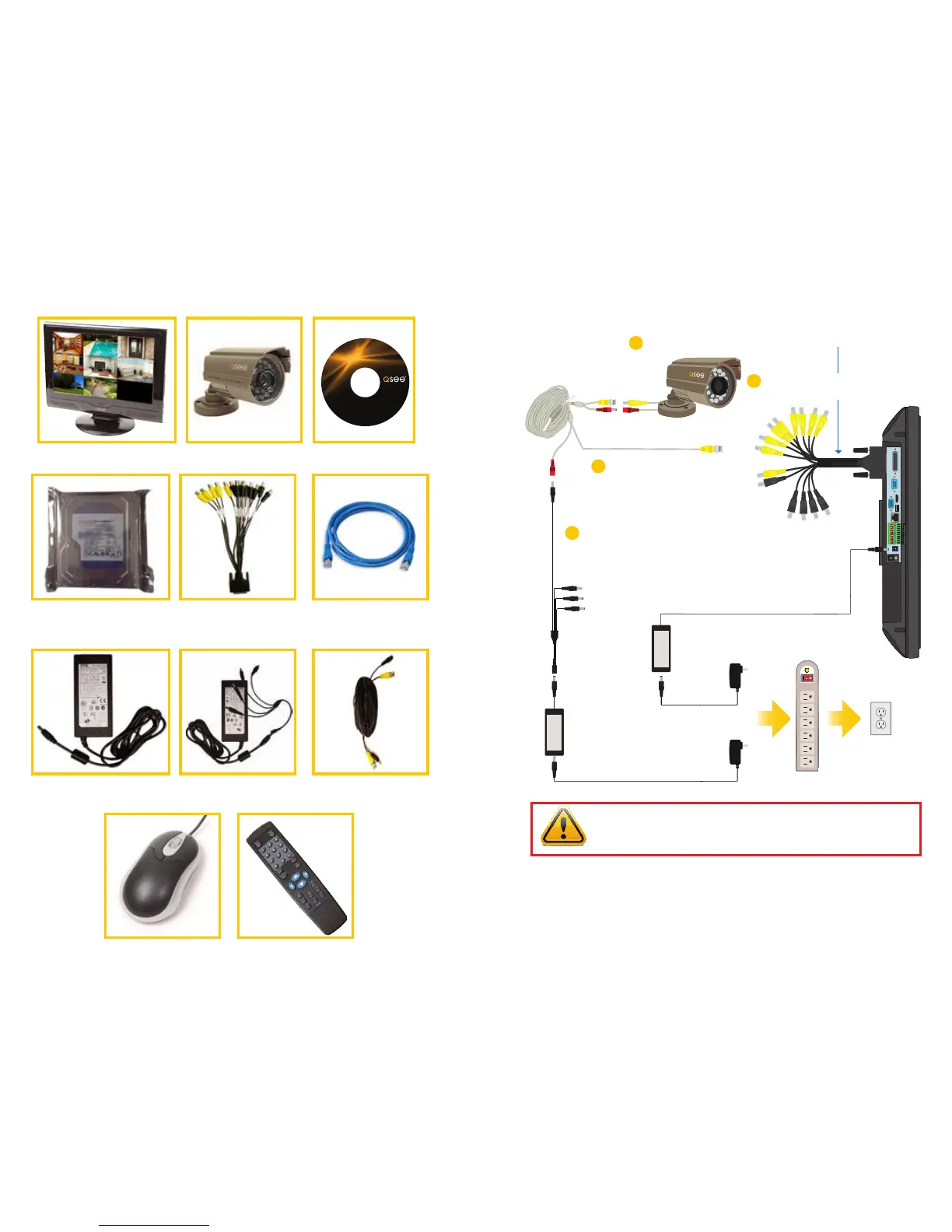

PART 1 - PACKAGE CONTENTS
QC40198 or
QC40196 DVR
Pre-Installed
Hard Drive
Power Supply
for DVR
Video/Audio Dongle
Manual and
Software CD
Ethernet
Cable
Video and Power
Camera Cable
(One per Camera)
Remote
Control
4, 8 or 16
Color Cameras with Stands
Power Supply & 4- or
8-Way Splitter
USB 2.0
Mouse
PART 2 - DVR CAMERA AND POWER CONNECTIONS
Revised 9/8/11
IMPORTANT! It is STRONGLY recommended to use a surge protector that
is UL-1449 rated. Look for a clamping voltage of 330 or lower, a Joule rating
of at least 400 and a response time of 10 nanoseconds or less.
The appearance of contents may differ from images shown.
manu als an d
soft ware
QC S eries
VGA AUDIO/VIDEO
USB HDMI
RS232
NET
DC 19V
NO C
1
NO C
2
1 2 3 4 5 6 7 8
A B
CNTRL
12V
STEP 1: Connect the Cameras
to the Cables
Connect both camera leads to the matching
ends on the power/video cable.
Repeat for all cameras.
1B
Connect the Video/Audio Dongle to the Audio/Video port on the bottom of the DVR.
1A
Attach the BNC connector on the
power/video cable to one of the BNC
connectors marked “Video” on the
Video/Audio Dongle.
Repeat for all cameras.
1C
Connect the remaining
connector to one of the
ends on the power
splitter. Repeat for all
cameras.
STEP 2:
Connect the single end
of the power splitter to
the included power supply.
STEP 4:
Connect both power supplies to
a surge protector.
STEP 5:
Connect thesurge protector
to an outlet.
STEP 3:
Connect the other power supply to the DVR .
1D
To Next Page
