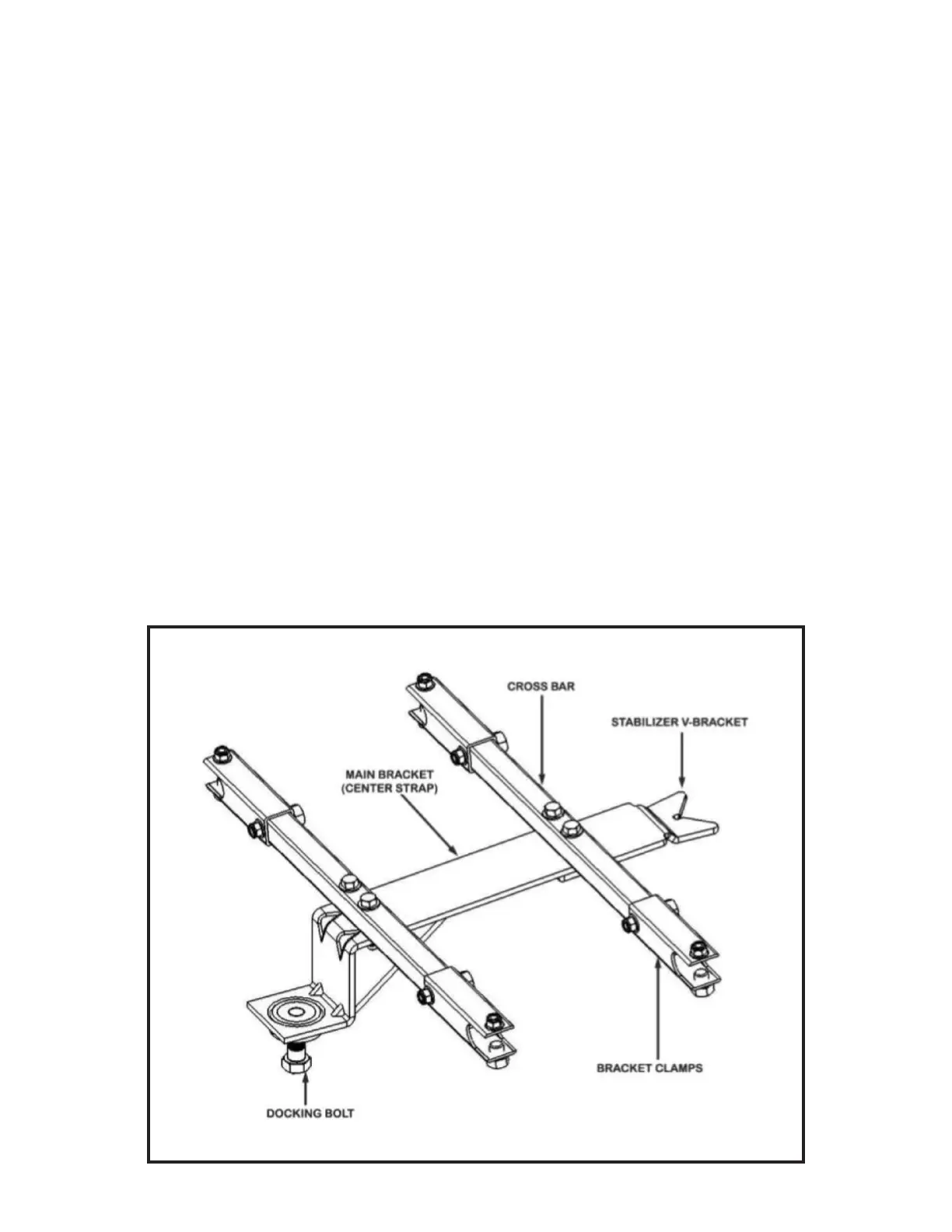

Q'STRAINT QLK-150 - Hardware Checklist and Diagram; Hardware Components; Bracket Assembly Diagram


 provided with the wheelchair for disassembly
and reassembly of the wheelchair

o
5/8-11 Hex Jam Nut (Q04C6512-1) x 1
o
5/8-11x3” Grade 8 Bolt (Q04C6509-2) x 1
o
5/8-11x2-1/2” Grade 8 Bolt (Q04C6509-1) x 1
o
3/8”-16x1-1/2” Hex Bolt (Q5-6509-BK-2) x 4
o
5/16”-18x1-1/2” Hex Bolt (Q5-6509-BK-7) x 8
o
3/8”-16 Nut w/Nylon Insert (Q5-6512-D) x 4
o
5/16”-18 Nut w/Nylon Insert (Q5-6512-BK-4) x 8
o
3/8” Flat Washer Q5-6511) x 8
o
5/16” Flat Washer (Q5-6511-BK-3) x 16
