Q5X USER MANUAL: QT-AD10 TRANSMITTER FAMILY JUNE 2020
___________________________________________________________________________________
___________________________________________________________________________________
For an updated copy of this document, visit www.Q5X.com/support 6 | Page

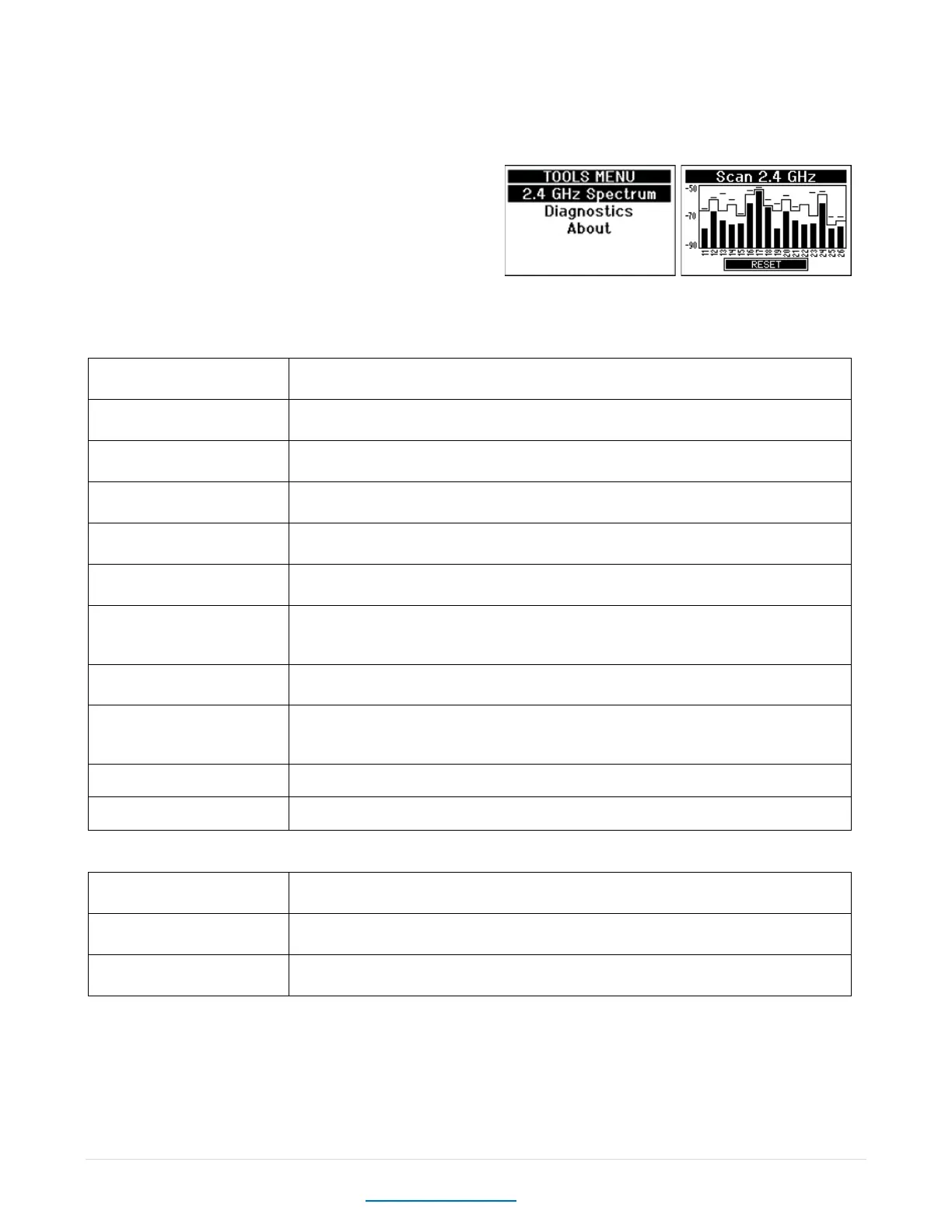

3.6 TOOLS
2.4GHz Spectrum
View the spectrum and identify the best channel to operate the
RCAS system on. Over time, the channel indicators will store
the peak values for easy reference. Lower bars indicate less
activity which is the desired result. Select Reset to clear the
stored peak values to start a fresh scan.
Diagnostics
Reserved for factory service functions.
Status LED Flashing
Single Green Flash
• Transmitter is in standby mode and is waiting for a command
•
Battery has over 30% charge left
Double Green Flash
• Transmitter is in ON mode and is transmitting the UHF carrier
•
Battery has over 30% charge left
Single Amber Flash
• Transmitter is in standby mode and is waiting for a command
•
Battery less than 30% charge left
Double Amber Flash
• Transmitter is in ON mode and is transmitting UHF carrier
•
Batter has less than 30% charge left
Single Red Flash
• Transmitter is in standby mode and is waiting for a command
•
Double Red Flash
• Transmitter is in ON mode and is transmitting UHF carrier
•
10 Fast Green Flashes
• Transmitter has completed a boot sequence
• Results from a 12s On/Off button push or command sent from the
Slow Red/Green/Red Flash
• Transmitter is waiting for Linking ID.
• Enter by inserting and removing USB charger 3 times.
10 Fast Red Flashes
• Transmitter is going into Storage Mode.
• In storage mode the transmitter is off and will no longer flash the LED or
respond to any RCAS commands.
Solid Green for 2 seconds
• Transmitter is entering UHF ON mode
Solid Red for 2 seconds
• Transmitter is exiting UHF ON mode
Charge LED
Solid Red
Solid Green
Flashing Red/Green
