ENGLISH (EN)
Terminals and Connectors
The Concept 300s are bi-wireable. A bi-wireable crossover has four
terminals. The upper pair of terminals connect to the treble (HF) speaker
and the lower pair to the bass (LF) speaker. The crossovers are pre-
tted with removable links to connect the terminal pairs and congure
the loudspeaker in single–wire mode. This allows you to connect the
loudspeaker conventionally using one pair of cables.

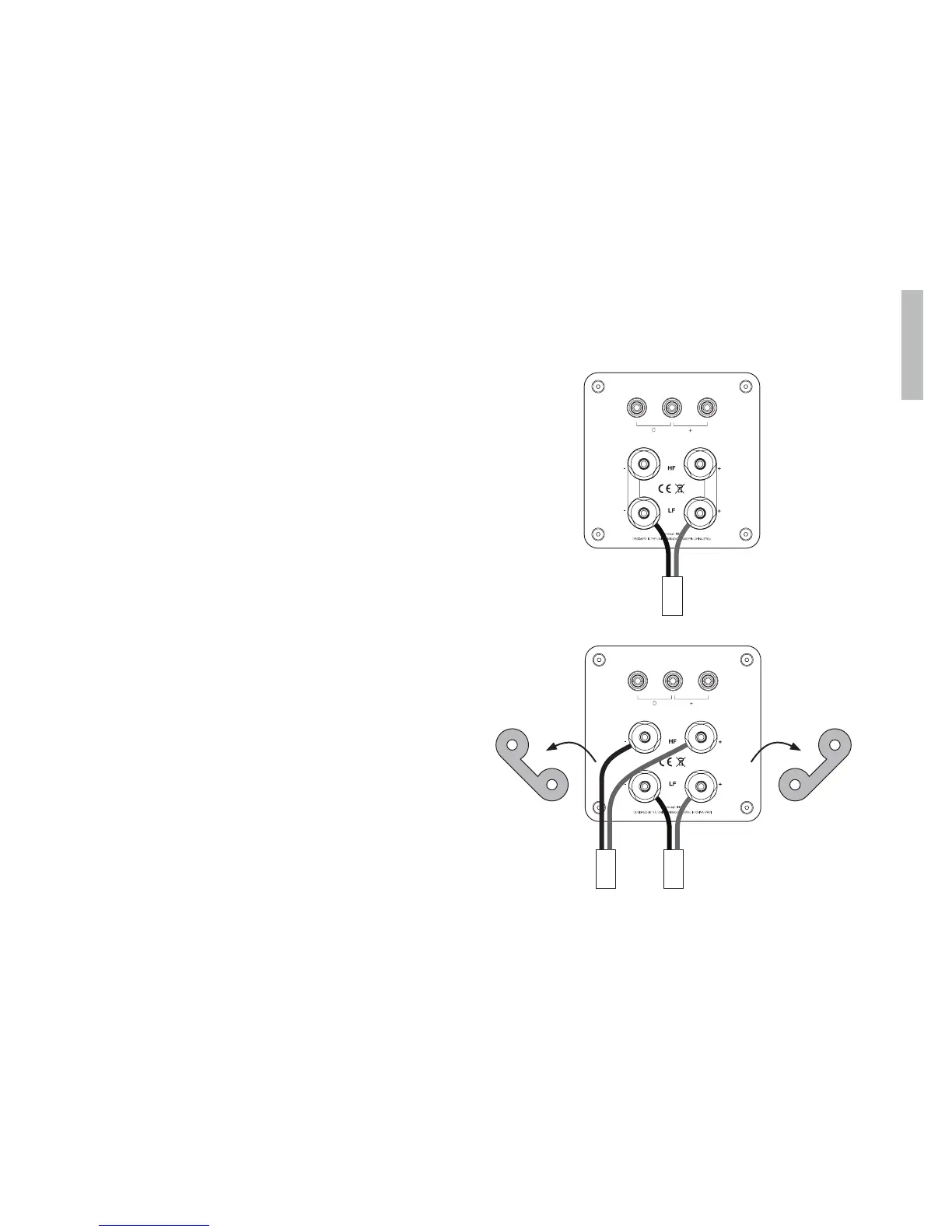

Standard Connections
Connect the RED (+) terminal of the RIGHT loudspeaker to the RED,
Positive (+) terminal on the RIGHT channel of the amplier.
Connect the BLACK (-) terminal of the loudspeaker to the matching BLACK,
Negative (-) terminal of the amplier.
Repeat this procedure for the LEFT channel.
Bi-Wire Connections
To bi-wire: Prepare two twin cables for each loudspeaker. Unscrew all the
loudspeaker terminals and remove both links. Now connect the treble
terminals and the bass terminals to the amplier following the procedure
described in standard connections. Refer to illustration above.
Standard Connections
Bi-Wire Connections
Connections
