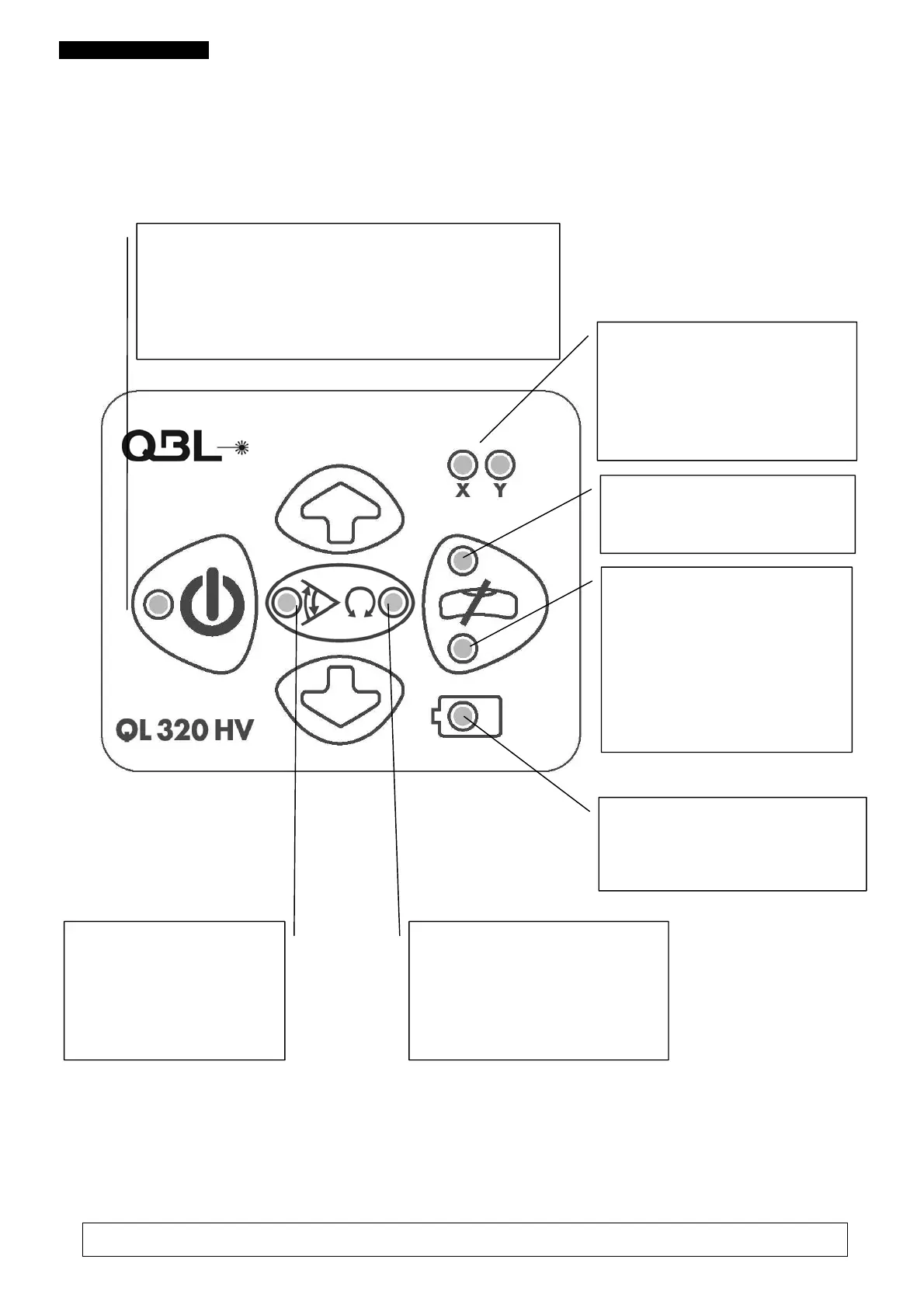

Symbol indications

Manual mode:

Indicates the direction

which gets inclined with

the arrow keys. Only

QL320 HS/HV

LED lit:

Tilt alarm turned off

LED lit:

Indicates manual

mode:

Self levelling

deactivated,

Laser plane inclination

with arrow ke

Battery status:

Indicates condition of the

batteries or NiCd

Operation status, LED:

flashes green: Instrument is levelling

lits green: Laser plane in level

flashes orange: Laser tilted

off : Manual mode

Only QL320 HVV:

Scan LED:

Lit in Scanning

Mode

Only QL320 HVV:

Laser Spot LED:

Lit in Laser Spot Mode
