QDI Advance 6T User Manual

Manual for Advance 6T series
Chapter 2

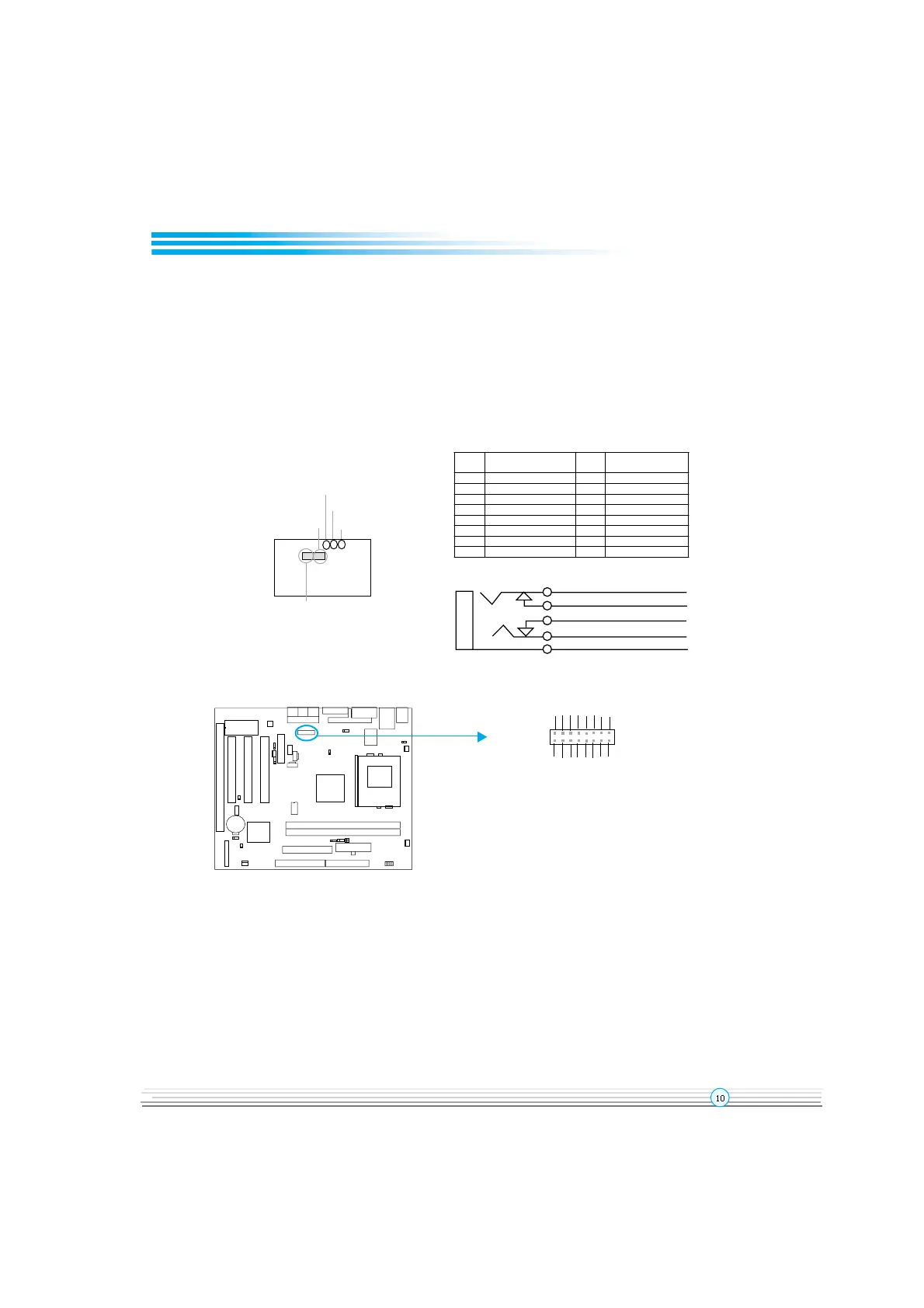

Audio Interface(Reserved)
The audio interface provides three kinds of audio output choices: the FrontAudio, the
RearAudio and the ActiveAudio. Their priority level is as sequence. When the FrontAudio
is available, the RearAudio and the ActiveAudio( in-case speakers ) will be cut off. When
the RearAudio is available, the ActiveAudio will be cut off. An onboard amplifier is pro-
vided for the case of earphone plugged into. When the FrontAudio is absent, Pin11 and
Pin12, Pin13 and Pin14 must be short connected.
FrontLineOutR
FrontLineOutL
LineNextR
LineNextL
GND
Speaker Out
Line in
Microphone in
Speaker
Earphone
Pin
No.
Symbol Pin
No.
Symbol
1 Active LINE Out(L) 2 ActiveLINE Out(R)
3 GND (ALO) 4 GND (ALO)
5 GND(+12) 6 GND(+12)
7 +12V(1A) 8 (Cut away )
9 MIC 10 GND ( MIC )
11 Front LINE Out( R ) 12 LINE Next( R )
13 Front LINE Out( L ) 14 LINE Next( L )
15 GND (FLO) 16 (Cut away )
Audio Interface
4
6
8
10
12
14
16
2
1
3
5
7
9
11
1315
