Wake-Up On LAN ( WOL )
Through the Wake-Up On LAN function, a wake event occurring from the network can
wake up the system. If this function is to be used, please be sure an ATX 2.01 power supply
of which 5VSB line is capable of delivering 720mA, and a LAN adapter which supports this
function are used. Then connect this header to the relevant connector on the LAN adapter,
set Wake up on LAN/Ring as Enabled in the POWER MANAGEMENT SETUP section of the
BIOS. Save & exit, then boot the operating system once to make sure this function takes
effect.
Wake-Up On Internal Modem (WOM)
Through the Wake-Up On Internal Modem function, the system which is in the suspend or
soft-off status can be powered on by a ring signal received from internal modem. If this
function is to be used, be sure an internal modem card which supports the function is used.
Then connect this header to the relevant connector on the modem card, set Wake up on
LAN/Ring  as Enabled in the POWER MANAGEMENT SETUP section of the BIOS. Save &
exit, then boot the operating system once to make sure this function takes effect.

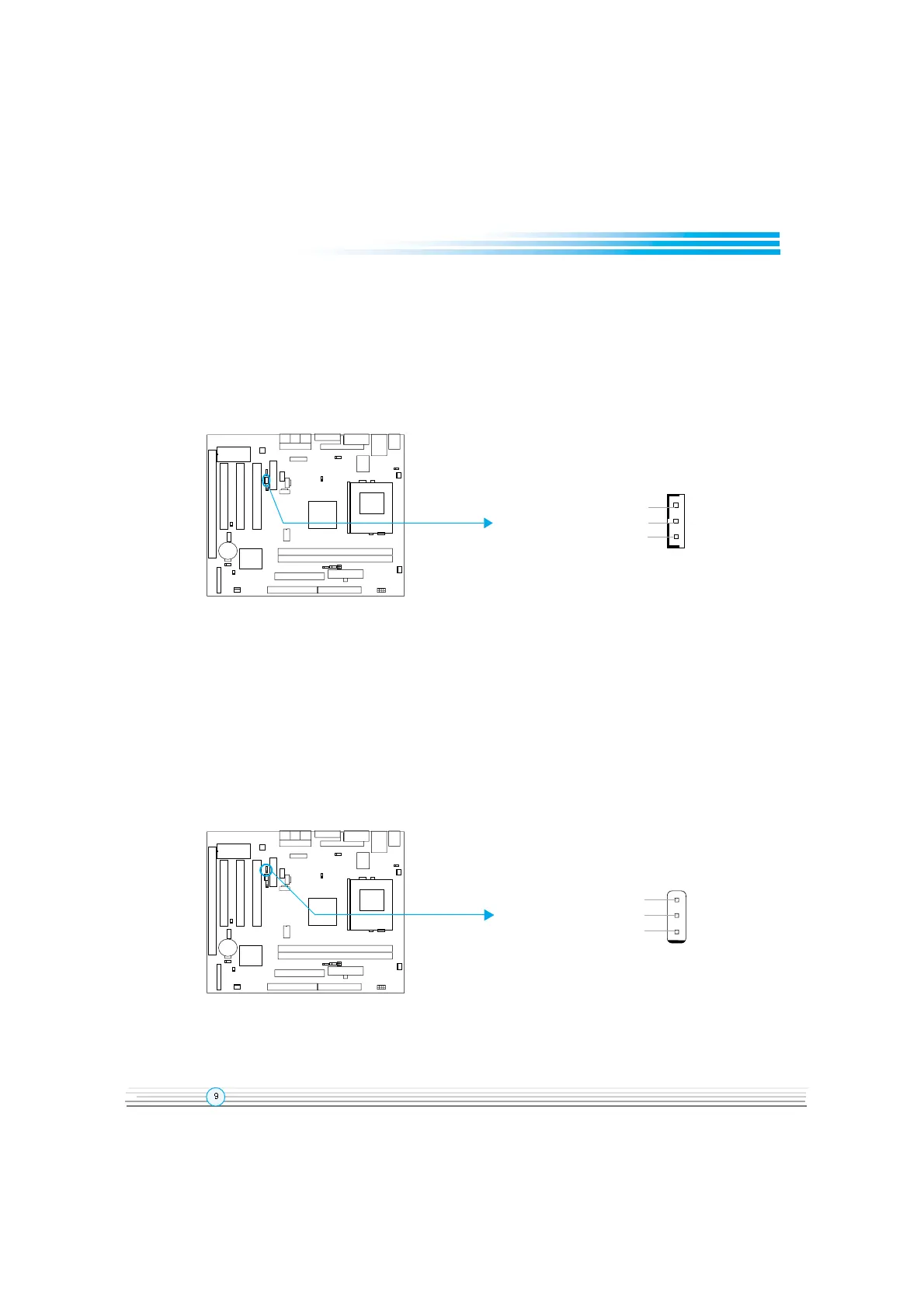

Installation Instruction
+5V SB
GND
Signal for waking up (active high)
+5V SB
GND
Signal for waking up (active low)
WOL
1
WOM
1
