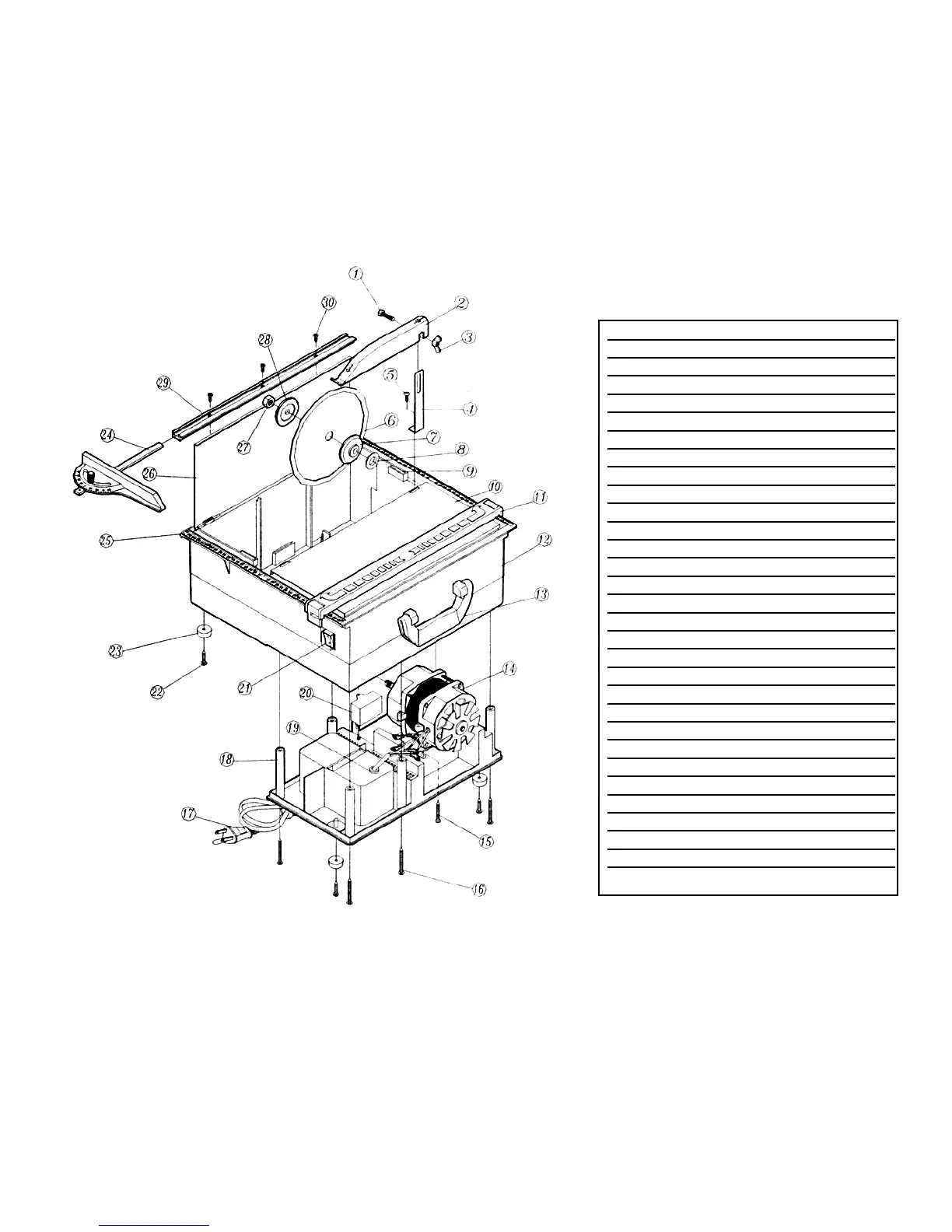

DIAGRAM OF WET SAW
DESCRIPTION No.
Wing Screw 1
Blade Guard 2
Wing Nut 3
Guard Support 4
Guard Support Screw 5
7” Continuous Rim Blade 6
Inner Washer 7
Rubber Ring 8
Magnet 9
Adjustable Right Cutting Table 10
Tile Guide 11
Frame 12
Carrying Handle – Folding 13
Motor 14
Motor Screw 15
Motor Bottom Base Screw 16
Electrical Cord 17
Motor Bottom Base 18
Electrical Cord Fixed Head 19
Capacitor 20
Waterproof Switch 21
Screw for Rubber Stand 22
Rubber Stand 23
Miter Guide Set 24
Ruler Guide Sticker 25
Left Cutting Table 26
Blade Lock Nut 27
Outer Washer 28
Sliding Track for Angle Guide 29
Sliding Track Screw 30
PARTS LIST
#60085 PORTABLE WET SAW
