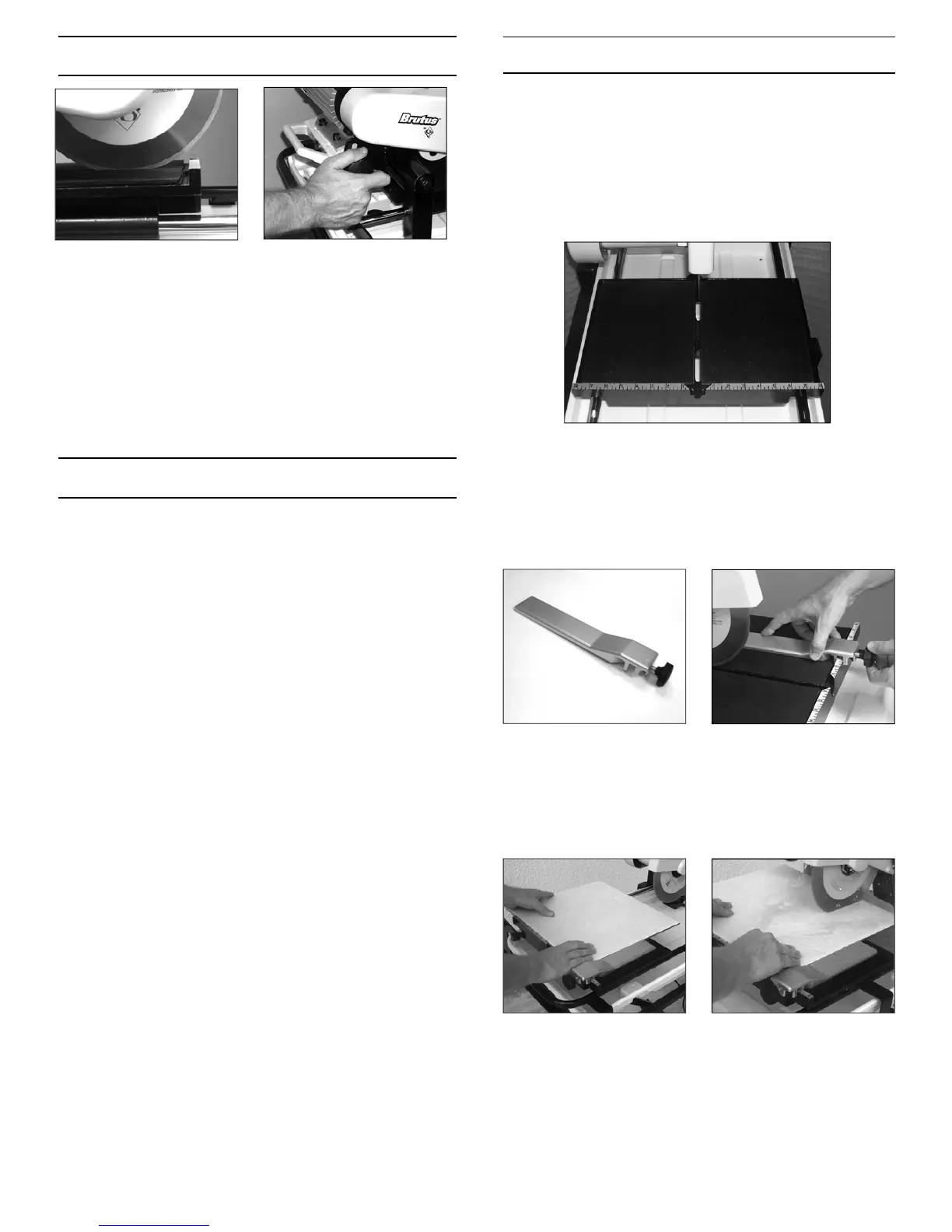

- 13 -
WARNING: Setting the blade too low may cause damage
to the cutting table. If the blade is set too high, it may catch
or grab the material being cut, causing damage and
possible injury.
CUTTING DEPTH
The recommended cutting depth for all materials is
1
⁄4”
below the top surface of the cutting table (Fig M1). To
adjust cutting depth, loosen Mounting Plate Adjustment
Knob, set the blade height and tighten the Adjustment
Knob securely (Fig M2).
Fig M1
Fig M2
DIAMOND BLADE DO’s & DON’Ts
DO’s
1. Inspect blades prior to each use for cracks or uneven
wear. Discard cracked, chipped or bent blades.
2. Always use manufacture r ’s recommendation for
matching the right blade with the right material being
cut.
3. Inspect the arbor shaft for uneven wear before
mounting the blade.
4. Always use blades with the correct arbor size on a
compatible arbor shaft.
5. Ensure the blade is mounted with the rotation arrow in
the proper direction and is securely tightened with a
wrench.
6. Always wear proper safety equipment at all times when
operating the saw. Wear goggles at all times when
operating saw.
7. Always ensure a continuous flow of water on both
sides of blade before cutting any material.
DON’Ts
1. Do not operate the saw without all safety guards in
position.
2. Do not operate the saw with blades larger or smaller
than recommended.
3. Do not cut dry with blades marked “Use Wet.”
4. Do not exceed maximum RPMs recommended by the
blade manufacturer.
5. Do not force the material into the blade. Let the blade
cut at its own speed.
6. Do not cut material not recommended by the blade
manufacturer.
When possible, use the Rip Guide to make straight cuts
(90
O
) (Fig N2). Place the Rip Guide onto the Measurement
Rail. Slide it to the desired width from the blade, then
tighten the knob. (Fig N3)
Fig N2 Fig N3
Position and press the tile firmly against the Rip Guide (Fig
N4). Make sure adequate water is flowing over the blade.
Use both hands to slowly move the tile through the blade
(Fig N5).
Fig N4 Fig N5
CUTTING OPERATION
WARNING! Do not attempt to cut pieces too small. Avoid
awkward hand positions where sudden slip could cause
your hand or finger to come in contact with the diamond
blade. When cutting any material, make sure that it is fully
s u p p o r ted. Hold workpiece firm l y. DO N O T F O R C E T H E
MATERIAL INTO BLADE
CAUTION: Make sure that the Mounting Plate Adjustment
Knob and the Rip Guide are tight before operating saw.
The Cutting Table Measuring Guide is marked in Inches on
both sides of the blade for an accurate cutting guide (Fig N1).
STRAIGHT CUTS WITH RIP GUIDE
Fig N1
