- 10 -
Fig F1 Fig F2

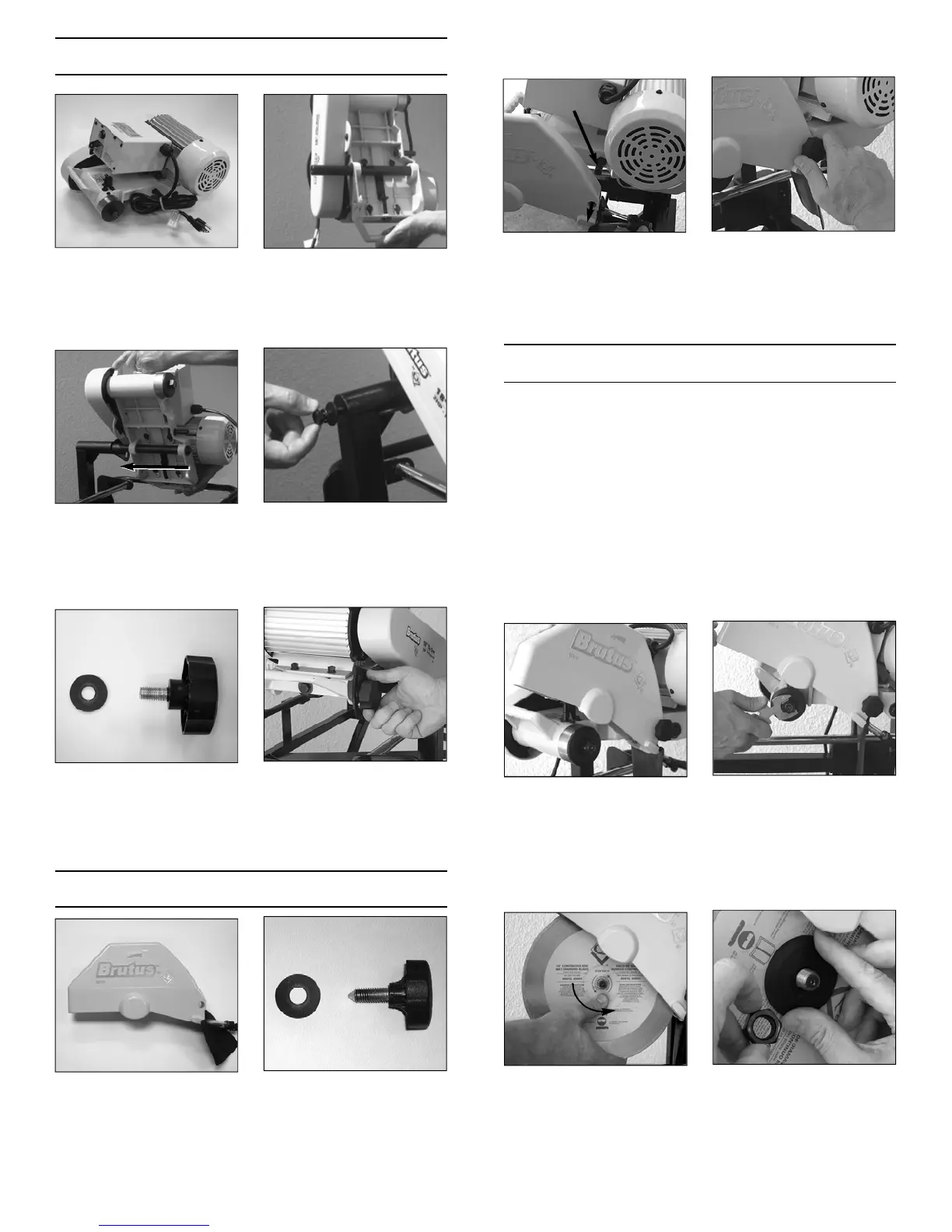

CUTTING HEAD ASSEMBLY
Fig F3
Fig F4
To stabalize the pivoting Cutting Head, use the provided
large plastic knob and washer (Fig F5), secure the motor
unit to the Vertical Adjustment Bracket (Fig F6).
Fig F5
Fig F6
The Blade Guard must be installed before the Diamond
Cutting Blade. The Blade Guard (Fig G1) will be attached
using the 1
1
⁄2" adjustment knob (Fig G2).
Fig G1 Fig G2
BLADE GUARD ASSEMBLY
Slide the Blade Guard over the support post on the motor
assembly (Fig G3). Secure by tightening the provided
adjustment knob (Fig G4).
Fig G3
Fig G4
Tilt the Blade Guard to the highest position and tighten
the adjustment knob (Fig H1). Use the provided wrench,
or adjustable wrench, to remove the blade shaft nut and
outer flange (Fig H2).
Fig H1
Fig H2
DIAMOND BLADE INSTALLATION
Place the blade onto the shaft, with the direction arrow
pointing in the same direction of rotation (Fig H3).
Replace the outer flange and blade shaft nut (Fig H4).
Fig H3
Fig H4
CHANGING THE BLADE:
WARNING! Disconnect the power supply before making
adjustments, maintenance, cleaning or replacing the
blade!
DIAMOND BLADES
1. Use 10” diameter Continuous Rim Wet Diamond
Blades with this saw.
2. 10” Blades with arbor holes of
5
⁄8” diameter will fit this
saw.
Support Post
Blade
Rotation
To attach the Cutting Head (Fig F1), find the Motor
Support Shaft, loosley inserted in the bottom side of the
unit (Fig F2).
Insert the Support Shaft into the Motor Support Arm (Fig
F3). Use provided Shaft Bolt with lock washer and washer,
then tighten (Fig F4).
