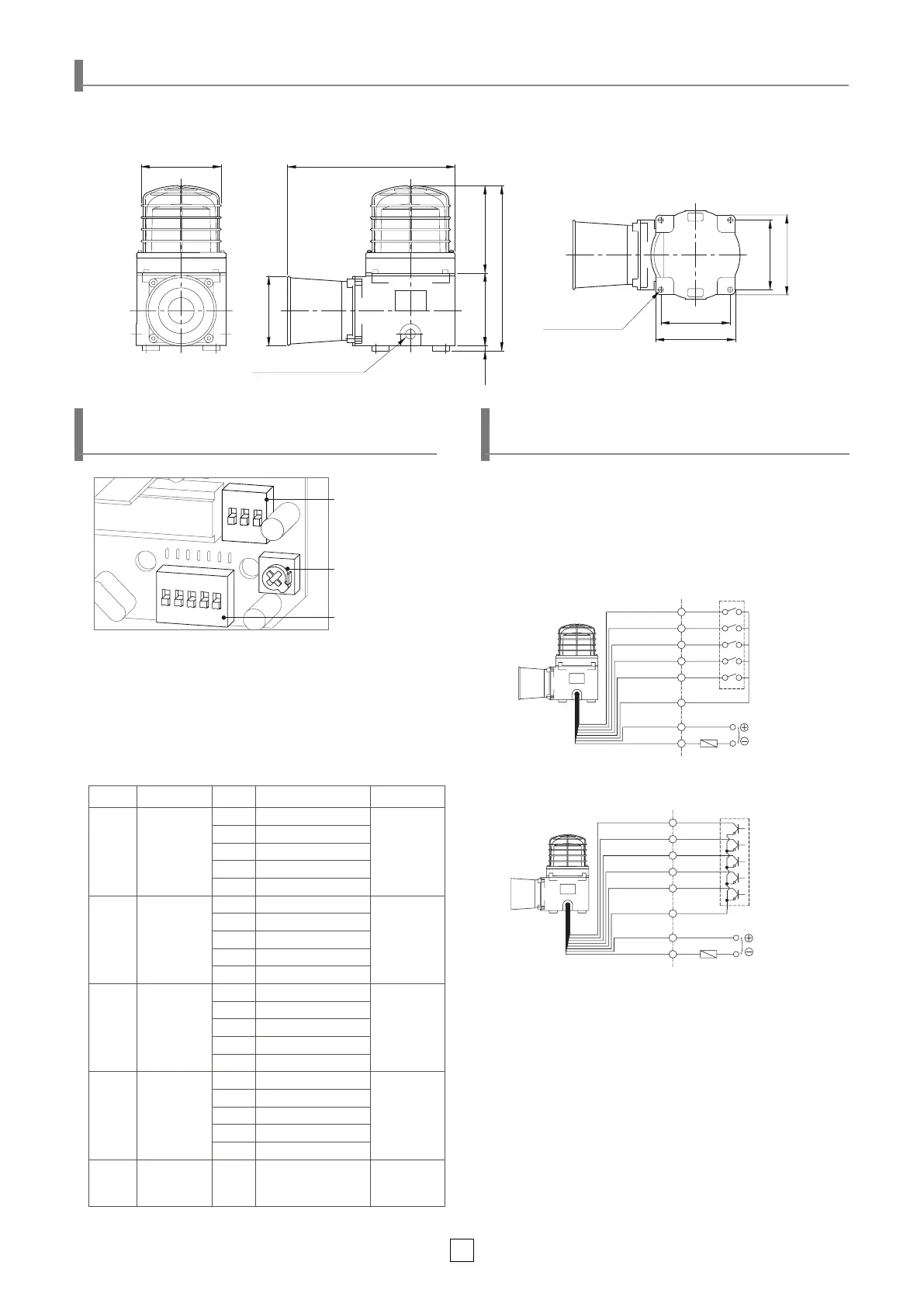

Qlight SESA - Dimensions; Sound Setting - Select Using the Switch; Sound Setting - Select Using External Contact(LC); Sound Type by Group

3
• External Power line - UL1015 AWG18(0.75sq) x 2C 400mm
• External signal line - UL1007 AWG22(0.3sq) 400mm
SESA/ SESAL/ SESALR/ SESAS
Ø167
4-Ø8
FITTING HOLES
134
134 150
150
CABLE ENTRY 1/2'' NPT
333
13410 189
327
Ø134
Dimensions
(Units : mm)
Sound Setting - Select using the switch
inside of the unit.
Sound Setting - Select using External
contact(LC).
SESA/ SESAL/ SESALR/ SESAS
Ch1
Ch2
Ch3
Ch4
Ch5
Ch1
Ch2
Ch3
Ch4
Ch5
EXTERNAL CONTACT
EXTERNAL TRANSISTOR-NPN
Common
Common
Power
Power
Fuse
Fuse
• LC type product with exposed sound selection signal line is
avaliable upon request. Please refer to the diagram below for
wiring.
Red(R)
Amber(A)
Green(G)
Blue(B)
White(W)
White(W)
Black(BK)
Black(BK)
Red(R)
Amber(A)
Green(G)
Blue(B)
White(W)
White(W)
Black(BK)
Black(BK)
■
Sound Type by Group
Category Sound pattern Channel Sound Tone Volume (Max.)
WS
5 Warning
sounds
Ch1
Fire.A-ANG
Max.
118dB
Ch2
Emergency WA-U
Ch3
Ambulance PI-PO
Ch4
Machinery Fault
Ch5
High Expansion
WP
5 Special
warning
sounds
Ch1
Fire.A-ANG
Max.
118dB
Ch2
Abandon Alarm
Ch3
Machinery Fault
Ch4
High Expansion
Ch5
7 Short PI. / 1 Long
WM 5 Melodies
Ch1
Sweet Home
Max.
118dB
Ch2
For Elise
Ch3
Cuckoo's Waltz
Ch4
Piano Sonata
Ch5
Turkish March
WA 5 Alarms
Ch1
Beep Intermittent
Max.
116dB
Ch2
Door Chime
Ch3
Phone Ring
Ch4
PI.PI.PI Short
Ch5
Tripping Beat
WV
5
Customizable
sounds
Ch1-
Ch5
Available upon
request(customized
voice type)
110-
115dB
• Standard unit has 5 built-in sound tones.
Select di󰀨erent built-in sounds using the sound setting switch.
• For standard type, once the unit is powered on, light and sound
are working simultaneously.
• For tone group settings, refer to the website [Customer Support] -
[Technical Data] - [Types of Tone and Combination of General
Tone products].
ON
ON
1 2 3
1 2 3 4 5
DP
sound setting switch
Sound group switch
channel selection
switch
※
In case of customized WV 5 tone type, there may be di󰀨erence of
volume depending on user’s audio le type.
