2.5 Install the complete unit in the caravan window and tighten the bracket properly.
C INSTALLATION OF THE AIR CONDITIONER ON A
WALL

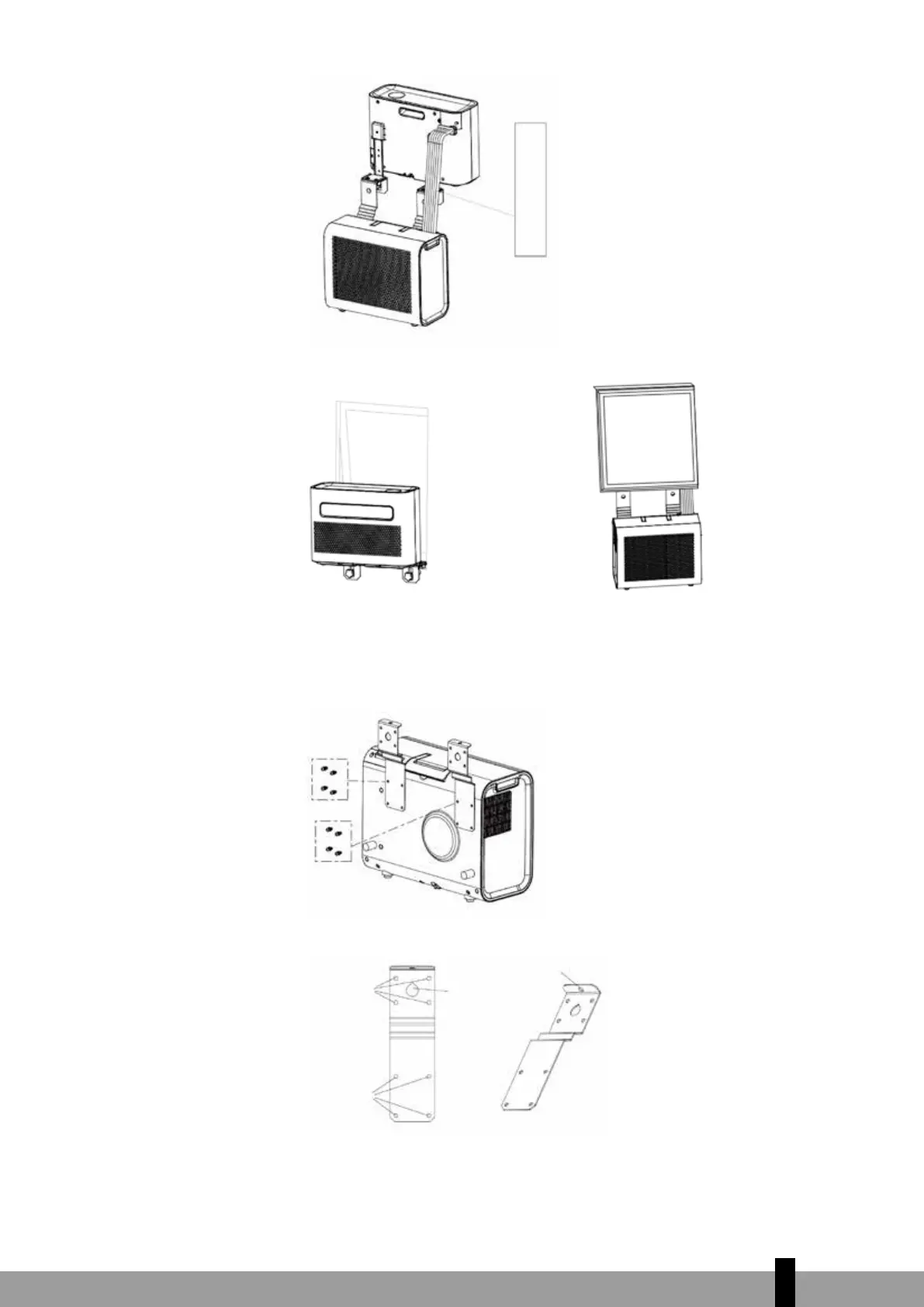

1. Fix the bracket 1 on the external unit with screws passing through the spring washers.
NOTE: Bracket 1, shown in the figure below.
Fixing
hole
External
unit xing
hole
Pre-installation
hole
Safety hole
2. Choose a suitable place to install.
NOTE: The fixing place should be flat, solid and reliable. Please ensure there are no lines,
pipes, steel bars and other factors that are not suitable for drilling.
3. Paste the template paper firmly. Please keep the reference line leveled.
