3. Turn the gas supply ON. And check all the connections with the soapy water
solution. No bubbles may appear!
4. In case of a leak, turn off the gas supply. Tighten any leaking fittings, then
turn the gas supply ON and recheck. Contact your dealer or gas supplier for
assistance if bubbles continue to appear.

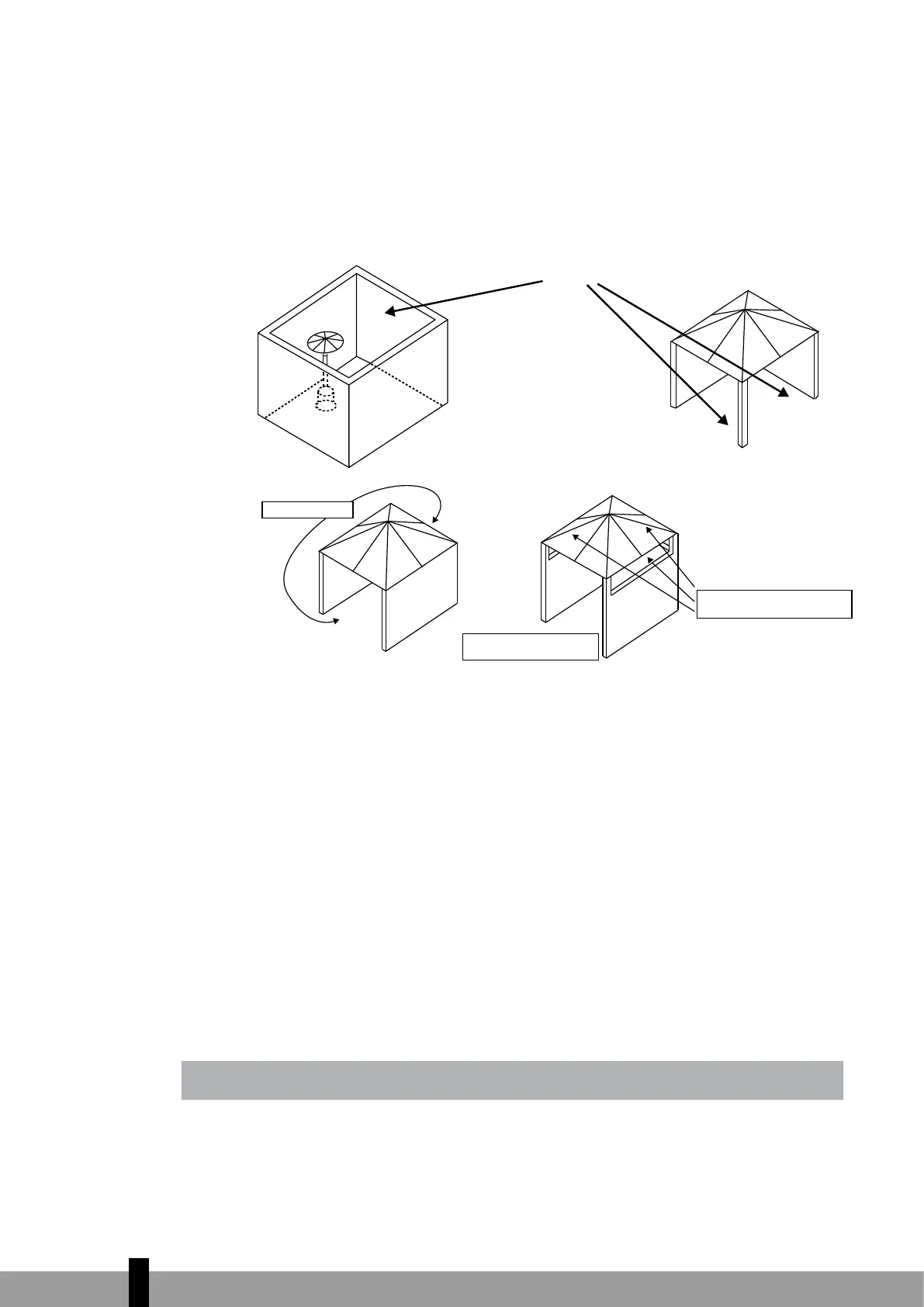

DIAGRAMMATICAL REPRESENTATIONS OF OUTDOOR AREAS
Open
Both ends open
Open side must be >25%
of total wall area
>30% of Total wall area
to be open and unrestricted
ASSEMBLY
Parts supplied
• Pic. 3 & Pic. 4
Step 1: Pic. 5
• To protect heater from strong wind, anchor the base securely to the ground with
screws. Use the 3 pieces ground fixer as shown in the picture.
Step 2: Pic. 6
Step 3: Pic. 7
Step 4: Pic. 8
Step 5: Pic. 9
Step 6: Pic. 10
Step 7: Pic. 11
• Fasten the gas cylinder with the fixation strap
OPERATION
• Connect the gas hose to the gas connector.
Please note:
- The gas hose is NOT included with the heater. Hose must be purchased separate-
ly
- Minimum / Maximum length gas hose: 60 cm
- Gas connector suitable for:
