NOTE: When the gas side connective pipe is Φ 16mm(5/8in) or more, the wall hole should be 90mm(3.54in).
Step 4: Prepare refrigerant piping
The refrigerant piping is inside an insulating sleeve attached to the back of the unit. You must prepare the
piping before passing it through the hole in the wall.
Unit is adjustable
Keep in mind that the hooks on the mounting plate are smaller than the holes on the back of the unit. lf
you find that you don’ t have ample room to connect embedded pipes to the indoor unit, the unit can be
adjusted left or right by about 30-50mm (1.25-1.95in), depending on the model.
4.1 Tools needed
You will require the following tools to carry out this installation work correctly:
1 x open-ended spanner, 19 mm
1 x open-ended spanner, 22 mm/24mm

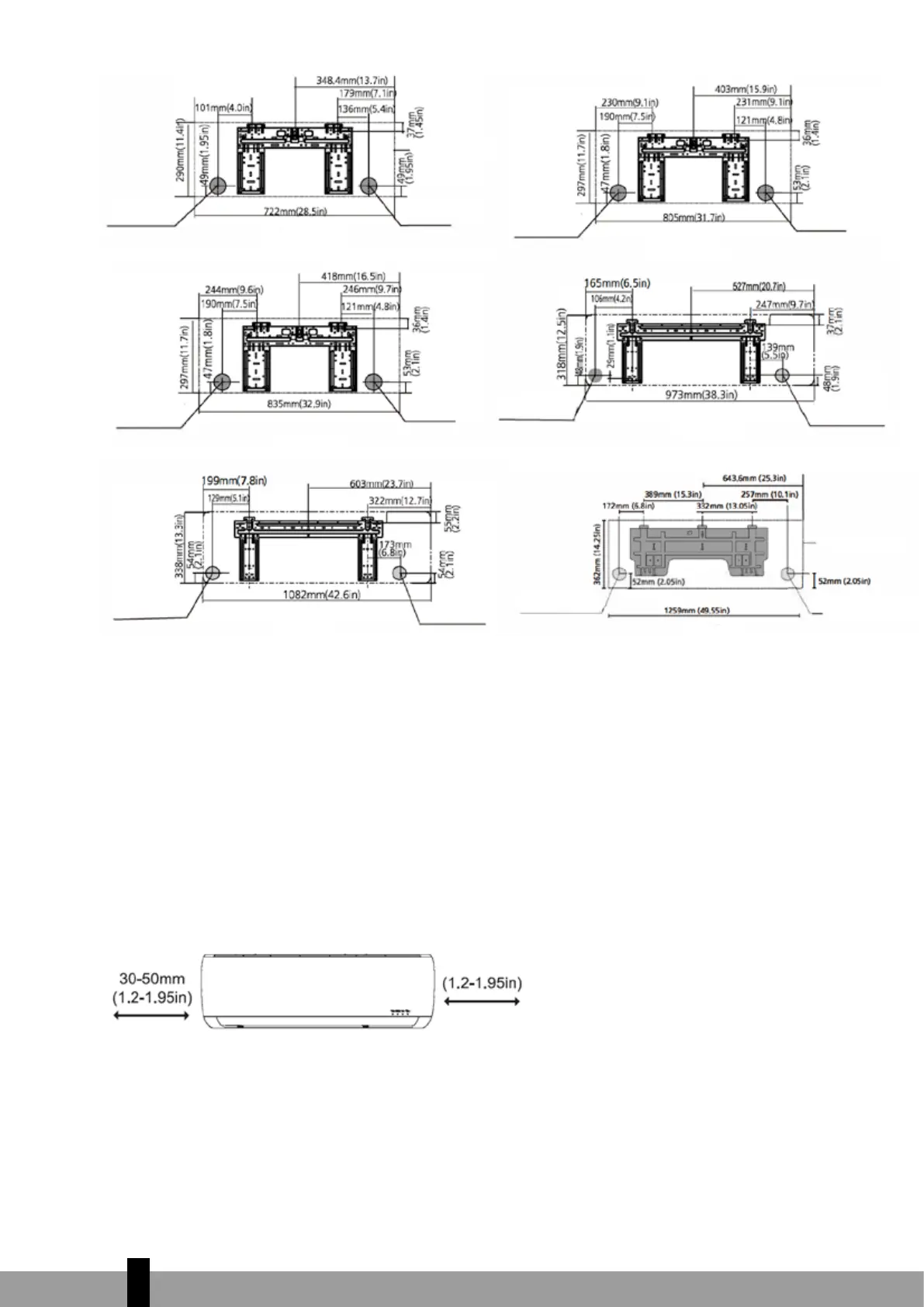

Indoor unit outline
Left rear wall
hole 65mm (2.5in)
Right rear wall hole
65mm (2.5in)
MODEL A
Left rear wall
hole 65mm (2.5in)
Right rear wall hole
65mm (2.5in)
MODEL B
Left rear wall
hole 65mm (2.5in)
Right rear wall
hole 65mm (2.5in)
MODEL C
Left rear
wall hole
65mm (2.5in)
Right rear wall
hole 65mm (2.5in)
MODEL D
Left rear wall
hole 90mm (3.54in)
Right rear
wall hole
90mm (3.54in)
MODEL E
Indoor unit
outline
Left rear wall
hole 90mm
(3.54in)
Right rear
wall hole
90mm (3.54in)
MODEL F
Move to left or right
Fig. 4.4
