Qlima SPHP 130 User Manual

39
4

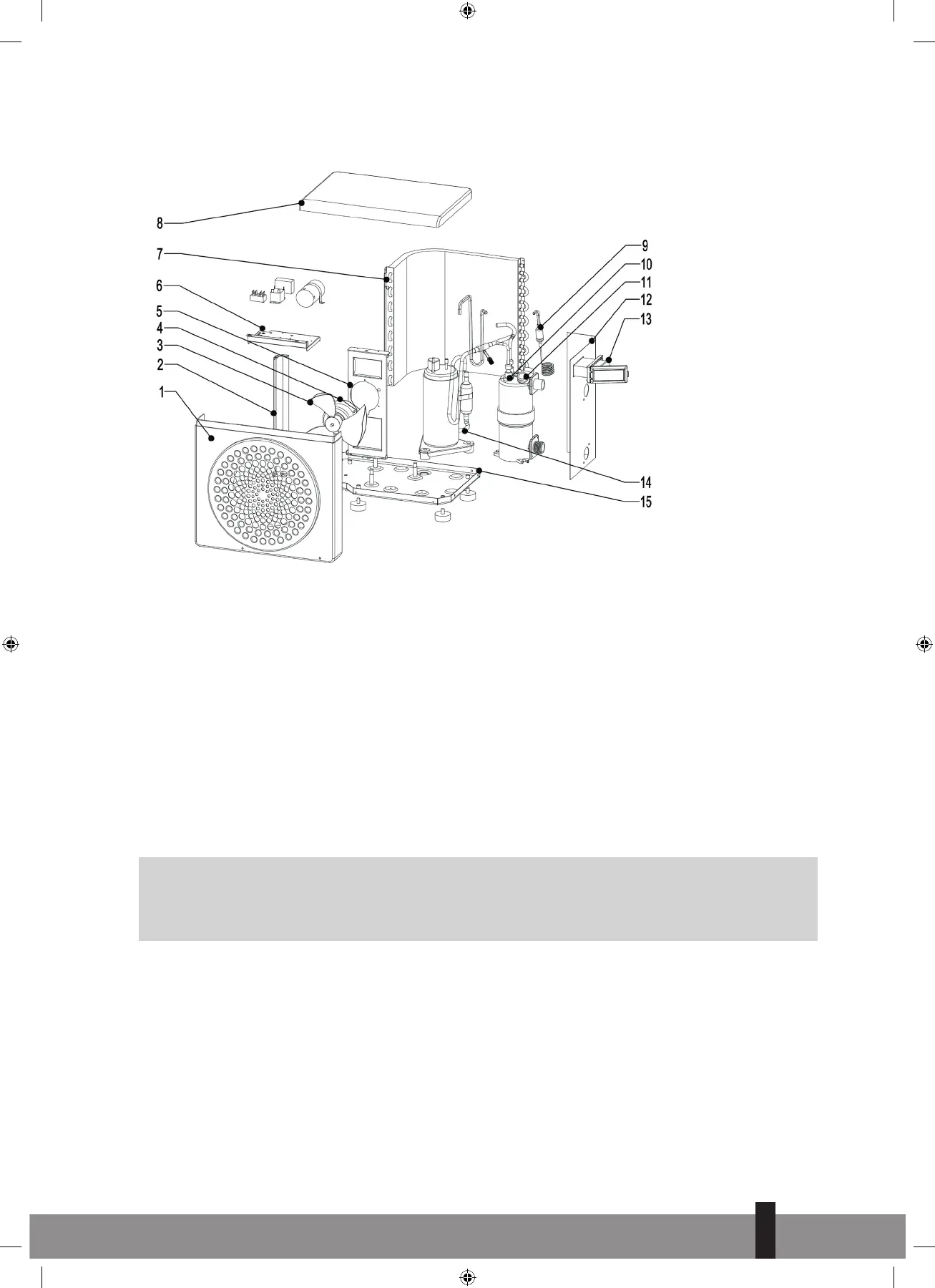

B PART NAMES
A Front panel F Electrical control box K Water Flow Switch
B Mounting frame G Evaporator L Left side panel
C Fan blade H Top panel M Control panel
D Fan motor I Throttling parts N Compressor
E Fan support J Heat exchanger O Base frame
PACKAGE CONTENTS
• Heat pump
• 2 hydraulic inlet/outlet connectors 32/38mm diameter
• This installation and user manual
• 4 anti-vibration pads
G
NOTE!
All the pictures in this manual and on the gift box are for explanation and indication purpose only.
They may be slightly different from the pool heat pump you purchased. The actual shape shall
prevail.
Q_man_SPHP 130 ('21) V6.indd 39Q_man_SPHP 130 ('21) V6.indd 39 21-12-20 14:1521-12-20 14:15

Qlima SPHP 130 Specifications

General

Best uses	-
Control type	Buttons
Product type	Electric pool heater
Product color	Blue
Easy to install	Yes
Buttons quantity	4
Pool capacity (max)	16000 L
Pool capacity (min)	- L
Units of measurement	°C
Maximum heating capacity	2.8 °C/h
Minimum pumping capacity	2 m³/h
Temperature measurement range	15 - 40 °C
Coefficient of performance (COP)	4.83
International Protection (IP) code	IPX4
Operating temperature (T-T)	8 - 43 °C
Motor power	580 W
Input voltage	220 - 240 V
Input frequency	50 Hz

Weight and Dimensions

Depth	400 mm
Width	385 mm
Height	280 mm
Weight	18000 g
