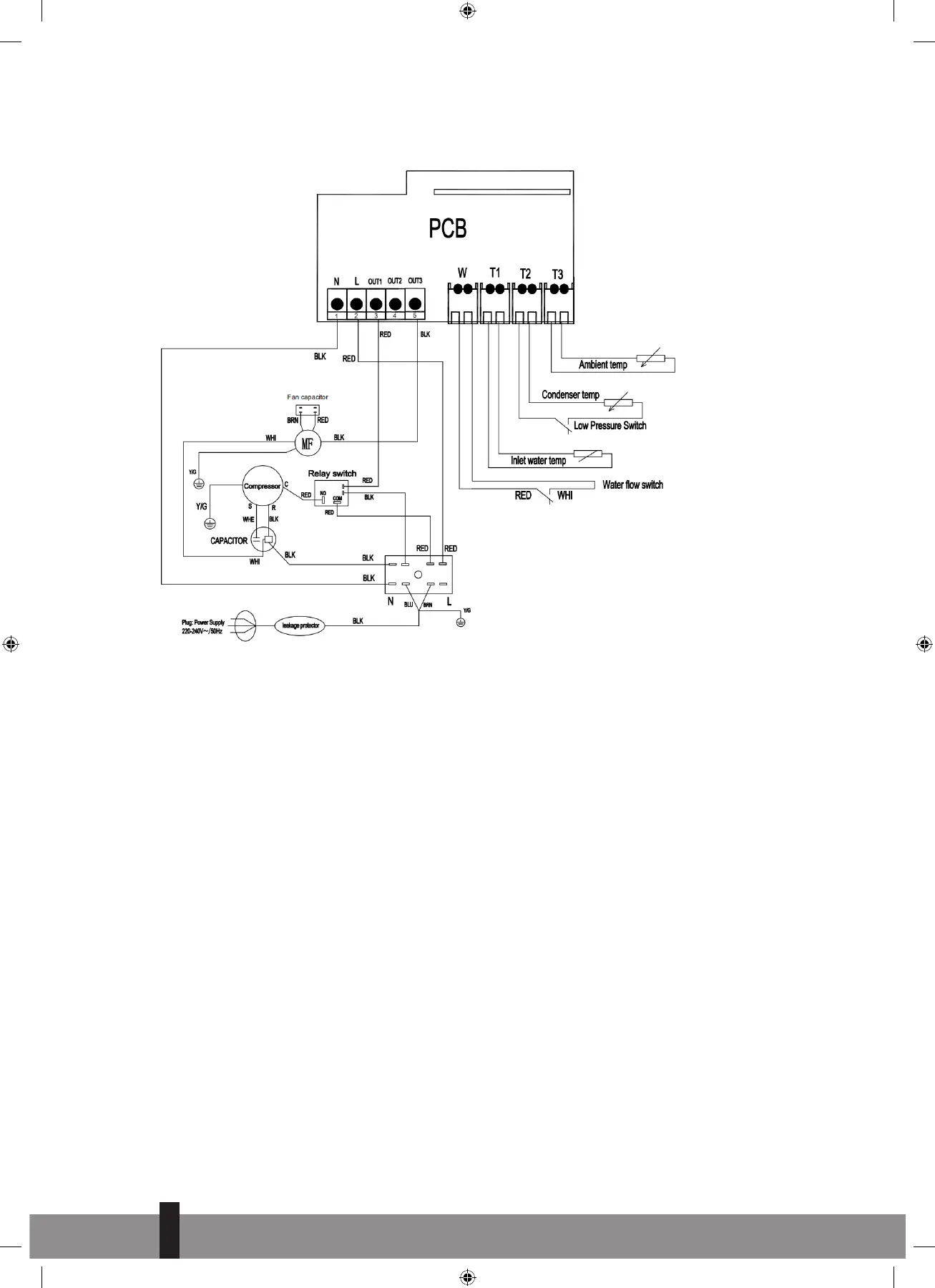

WIRING DIAGRAMS
C GENERAL
DURING USE
• To avoid serious injuries, never touch the fan when it is operating.
• Keep the heat pump out of the reach of children to avoid serious injuries caused by the heat
exchanger’s blades.
• Never start the equipment if there is no water in the pool or if the circulating pump is stopped.
• Check the water flow rate every month and clean the filter if necessary.
DURING CLEANING
• Switch off the equipment’s electricity supply.
• Close the water inlet and outlet valves.
• Do not insert anything into the air or water intakes or outlets.
• Do not rinse the equipment with water.
WATER TREATMENT
Heat pumps for swimming pools can be used with all types of water treatment systems.
Nevertheless, it is essential that the treatment system (chlorine, pH, bromine and/or salt chlorina-
tor metering pumps) is installed after the heat pump in the hydraulic circuit.
To avoid any deterioration to the heat pump, the water’s pH must be maintained between 6.9 and 8.0.
The heat pump is very easy to install, only water and power need to be connected during installation.
4
Q_man_SPHP 130 ('21) V6.indd 40Q_man_SPHP 130 ('21) V6.indd 40 21-12-20 14:1521-12-20 14:15

Qlima SPHP 130 Specifications

General

Best uses	-
Control type	Buttons
Product type	Electric pool heater
Product color	Blue
Easy to install	Yes
Buttons quantity	4
Pool capacity (max)	16000 L
Pool capacity (min)	- L
Units of measurement	°C
Maximum heating capacity	2.8 °C/h
Minimum pumping capacity	2 m³/h
Temperature measurement range	15 - 40 °C
Coefficient of performance (COP)	4.83
International Protection (IP) code	IPX4
Operating temperature (T-T)	8 - 43 °C
Motor power	580 W
Input voltage	220 - 240 V
Input frequency	50 Hz

Weight and Dimensions

Depth	400 mm
Width	385 mm
Height	280 mm
Weight	18000 g
