Qlima SPHP 130 User Manual

ELECTRICAL CONNECTION
Before connecting your heat pump, please ensure
that the plug is connected to the ground.
The filter pump should function at the same time
as the heat pump. Therefore, you need to connect
them to the same electrical circuit.
42
D

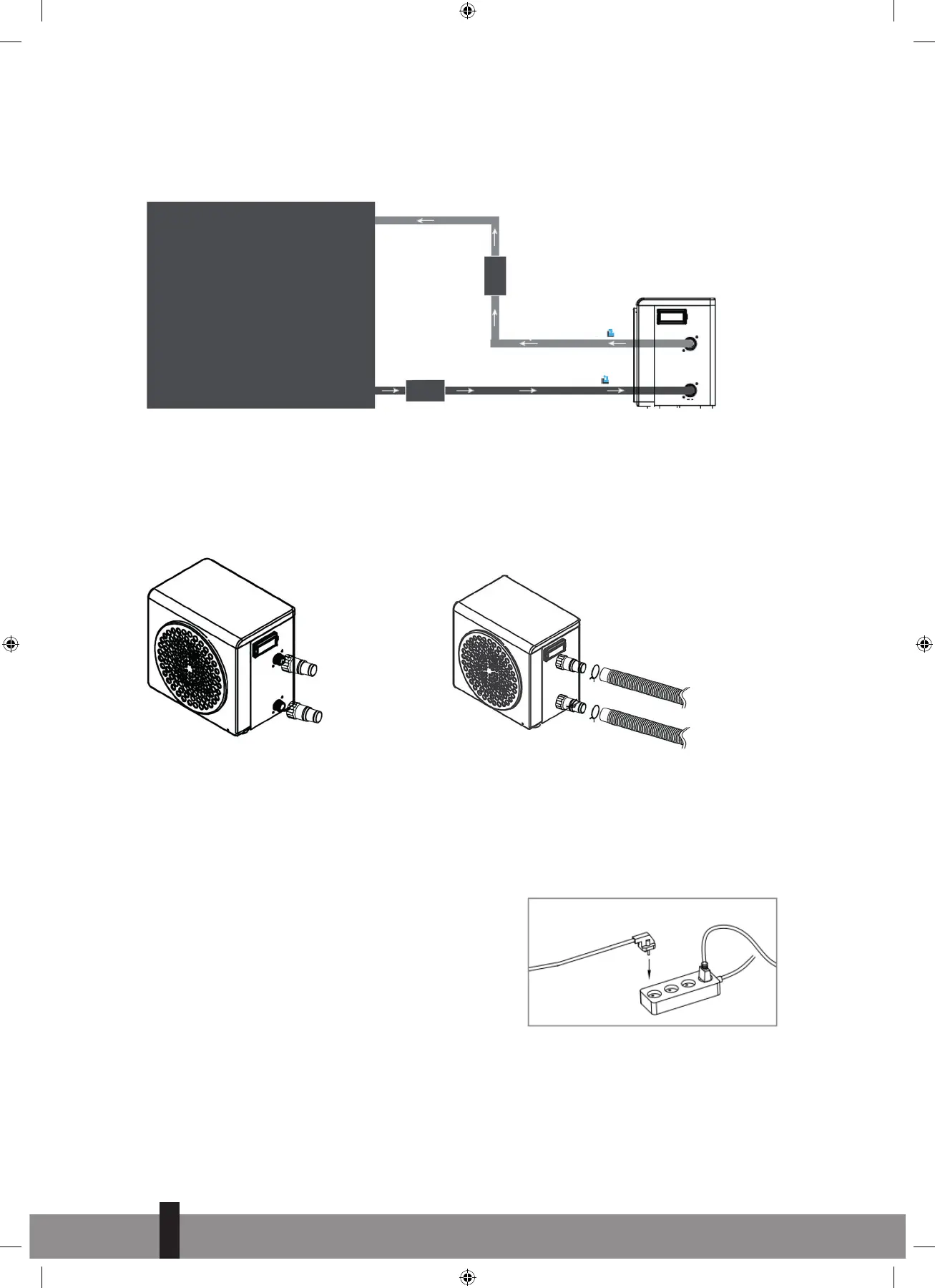

INSTALLATION
INSTALLATION LAYOUT
The filter located upstream of the heat pump must be regularly cleared so that the water in the system is
clean, thus avoiding the operational problems associated with dirt or clogging in the filter.
HYDRAULIC CONNECTION
4
Step 1
Screw the connectors to the heat pump
Step 2
Connect the water outlet pipe and the
water intake pipe
Towards the pool
Automated treatment system
Filtration + Pump
From the pool
In
Out
POOL
Towards the pool
From the pool
Q_man_SPHP 130 ('21) V6.indd 42Q_man_SPHP 130 ('21) V6.indd 42 21-12-20 14:1521-12-20 14:15

Qlima SPHP 130 Specifications

General

Best uses	-
Control type	Buttons
Product type	Electric pool heater
Product color	Blue
Easy to install	Yes
Buttons quantity	4
Pool capacity (max)	16000 L
Pool capacity (min)	- L
Units of measurement	°C
Maximum heating capacity	2.8 °C/h
Minimum pumping capacity	2 m³/h
Temperature measurement range	15 - 40 °C
Coefficient of performance (COP)	4.83
International Protection (IP) code	IPX4
Operating temperature (T-T)	8 - 43 °C
Motor power	580 W
Input voltage	220 - 240 V
Input frequency	50 Hz

Weight and Dimensions

Depth	400 mm
Width	385 mm
Height	280 mm
Weight	18000 g
